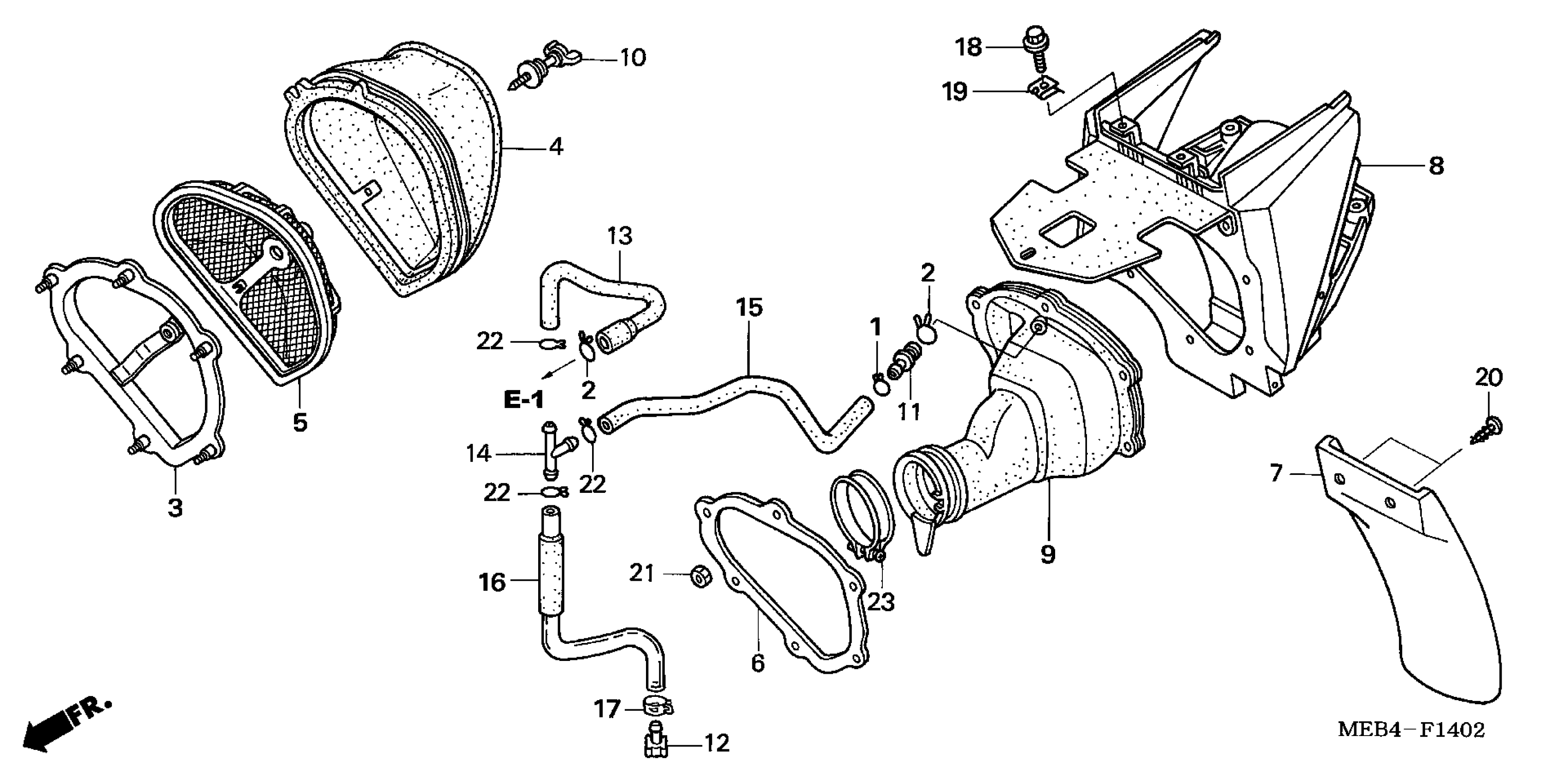

Honda CRF450RA/A (07) MOTORCYCLE, JPN, VIN# JH2PE053-7K520001 TO JH2PE053-7K529999 AIR CLEANER ('05-) Diagram

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.48

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

STAY, AIR CLEANER ELEMENT

17212-MEN-670

$63.96

ELEMENT, AIR CLEANER

17213-KRN-850

$36.27

BASE ASSY., ELEMENT

17214-MEN-670

$42.85

PLATE, FR. AIR CLEANER HOUSING

17217-MEB-770

$11.71

SPLASH GUARD, AIR CLEANER HOUSING

17218-KZ3-860

$23.66

HOUSING, AIR CLEANER

17250-MEN-850

$94.94

TUBE, AIR CLEANER CONNECTING

17253-MEN-730

Unavailable

BOLT, AIR CLEANER ELEMENT SETTING

17291-MEB-670

$5.96

JOINT, BREATHER TUBE

17359-MAG-L00

$4.90

PLUG, BREATHER TUBE

17370-419-700

$3.49

TUBE A, BREATHER

17372-MEB-670

Unavailable

JOINT, BREATHER THREE WAY

17373-KC1-J10

$8.43

TUBE B, BREATHER

17374-MEN-730

Unavailable

TUBE C, BREATHER

17375-MEB-670

$5.88

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

NUT, CLIP (6MM)

90305-GK8-000

$2.17

SCREW, TAPPING (5X20)

93913-15510

$0.86

NUT, HEX. (5MM)

94002-05000-0S

$0.94

CLIP, TUBE (B12)

95002-02120

Unavailable

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60321

$5.50
