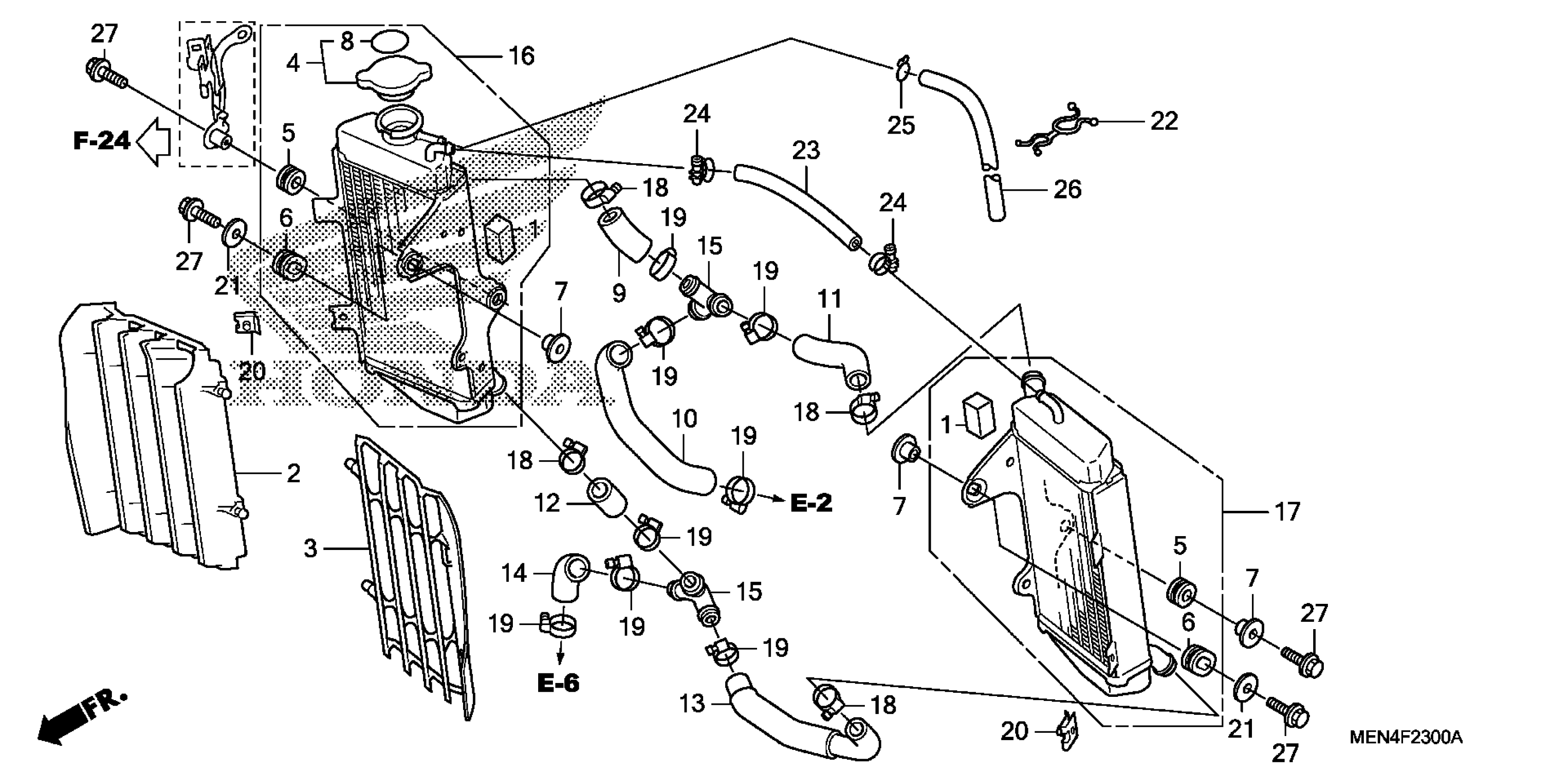

Honda CRF450RA (11) CRF450R, JPN, VIN# JH2PE053-BK900001 TO JH2PE053-BK999999 RADIATOR Diagram

#

Description
Price

1

RUBBER, RADIATOR (UPPER)

19021-MEN-A30

$2.10

2

GRILL, R. RADIATOR

19033-MEN-A30

$35.83

3

GRILL, L. RADIATOR

19034-MEN-A30

$35.83

4

CAP, RADIATOR

19037-KRN-641

$37.32

5

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.43

6

RUBBER, RADIATOR MOUNTING

19051-MEN-A30

$2.83

7

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-KRN-641

$3.90

9

HOSE A, WATER

19061-MEN-A30

$6.29

10

HOSE B, WATER

19062-MEN-A30

Unavailable

11

HOSE C, WATER

19063-MEN-A30

$9.52

12

HOSE D, WATER

19064-MEN-A30

Unavailable

13

HOSE E, WATER

19065-MEN-A30

Unavailable

14

HOSE F, WATER

19066-MEN-A30

Unavailable

15

JOINT, WATER HOSE

19069-MEN-A30

$18.71

16

RADIATOR ASSY., R.

19100-MEN-A40

Unavailable

16

RADIATOR ASSY., R. This part replaces 19100-MEN-305.

19100-MEN-A40

Unavailable

17

RADIATOR ASSY., L.

19150-MEN-A30

$283.49

17

RADIATOR ASSY., L. This part replaces 19150-MEN-305.

19150-MEN-A30

$283.49

18

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

19

CLAMP B, WATER HOSE

19506-KS6-700

$6.98

20

NUT, CLIP (6MM)

90201-KPR-901

$1.70

21

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.14

22

CLIP, PURSE LOCK

90647-657-671

$5.16

23

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$93.20

24

CLIP, TUBE (A13)

95002-01130

$3.90

25

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.59

26

BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)

95003-14001-10M

$3.08

27

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable
