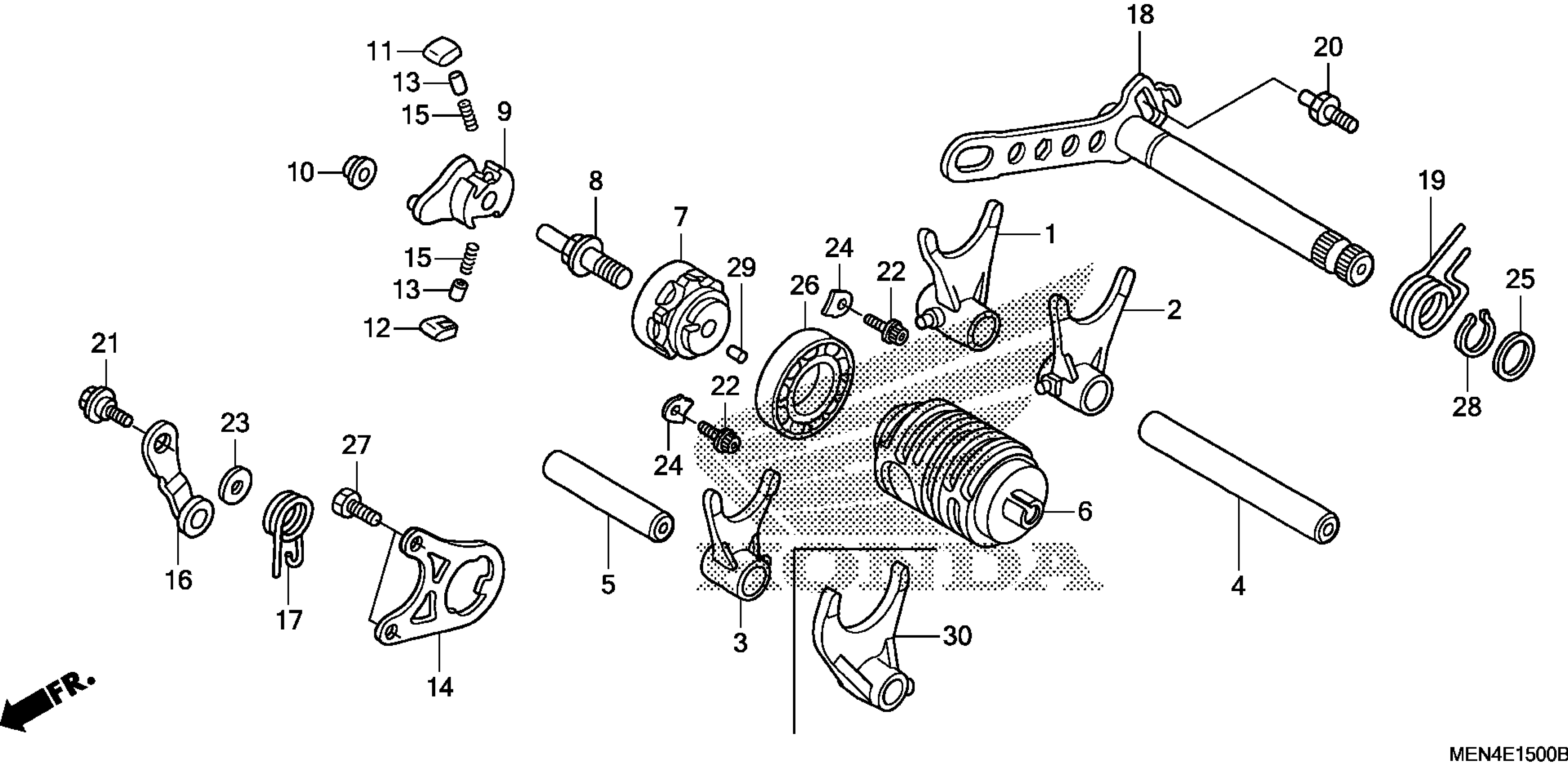

Honda CRF450RA (11) CRF450R, JPN, VIN# JH2PE053-BK900001 TO JH2PE053-BK999999 GEAR SHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MEN-A31

$56.44

2

FORK, L. GEARSHIFT

24221-MEN-A31

$56.44

4

SHAFT A, SHIFT FORK

24241-MEN-730

$15.84

5

SHAFT B, SHIFT FORK

24242-MEN-730

$12.53

6

DRUM, GEARSHIFT

24311-MEN-A50

$61.07

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-HA0-000

$11.56

9

SHIFTER, DRUM

24321-MEB-670

$33.79

10

COLLAR, SHIFTER

24322-MM4-000

$4.88

11

PAWL A, RATCHET

24324-KA3-711

$12.13

12

PAWL B, RATCHET

24325-KA3-711

$12.13

13

PLUNGER, PAWL

24326-KBH-901

$5.56

14

PLATE, GUIDE

24328-MEN-A30

$12.46

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

16

STOPPER, GEARSHIFT DRUM

24430-MEN-A30

$11.91

17

SPRING, DRUM STOPPER

24435-MEN-A10

$3.01

18

SPINDLE, GEARSHIFT

24610-MEN-A30

Unavailable

19

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$3.81

20

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.84

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.19

23

WASHER (6.1MM)

90435-HB3-000

$2.80

24

PLATE, BEARING HOLDER

90442-MEN-A30

$3.21

25

WASHER (14MM)

90451-155-000

$3.62

26

BEARING, BALL (6805LU)

91008-MEY-671

$15.47

27

BOLT, HEX. (6X16)

93301-06016-0A

$1.47

28

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

29

ROLLER (4X8)

96220-40080

Unavailable

30

FORK, CENTER GEARSHIFT

24231-MEN-A50

$64.60
