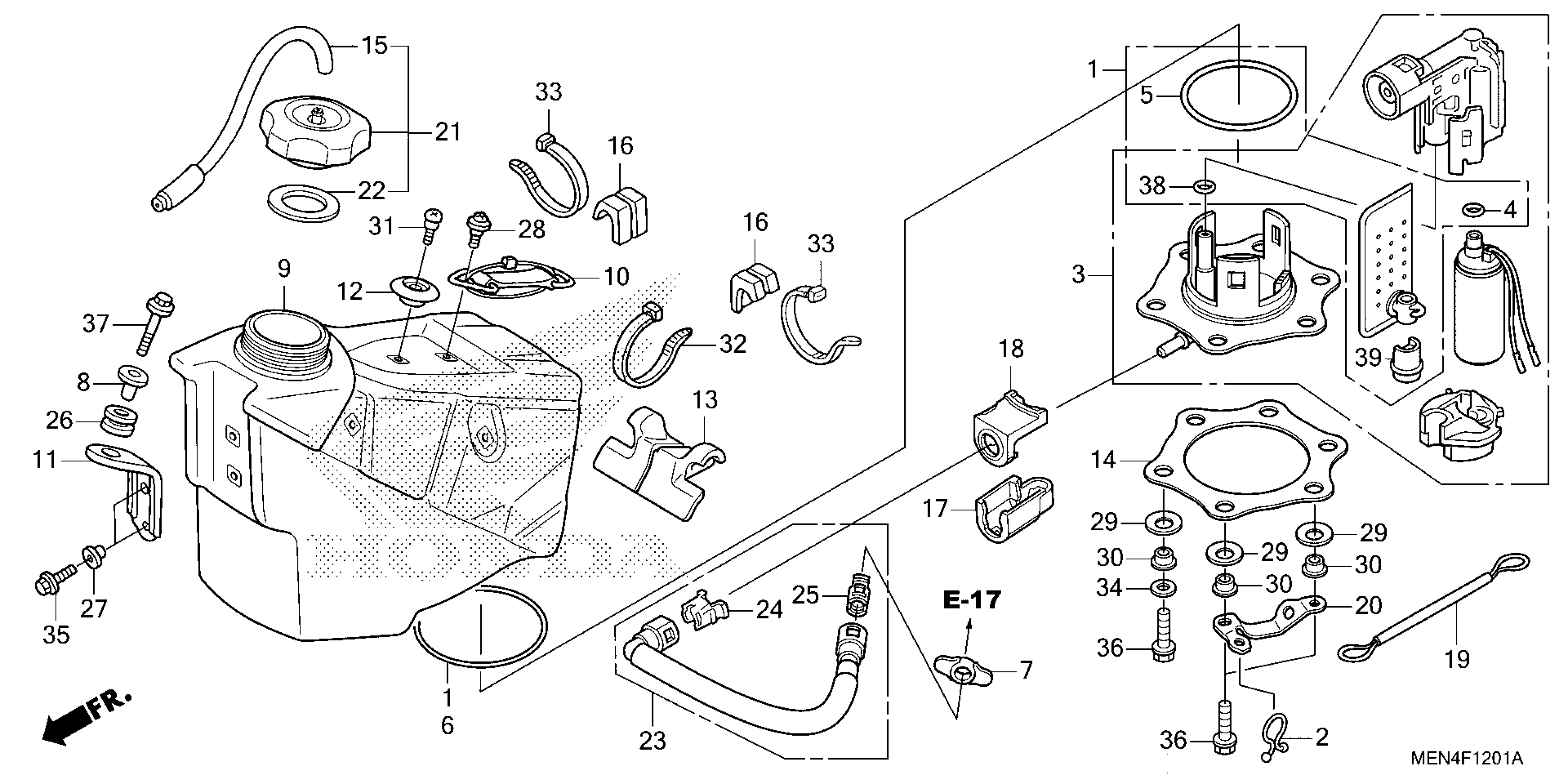

Honda CRF450RA (11) CRF450R, JPN, VIN# JH2PE053-BK900001 TO JH2PE053-BK999999 FUEL TANK (2) Diagram

#

Description
Price

1

FILTER KIT, FUEL

06160-MEN-A50

$88.17

2

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.39

3

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) | Use up to Frame SN BK903020. This part replaces 16700-MEN-A51.

16700-MEN-A52

$364.34

3

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$364.34

4

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

5

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

6

O-RING (2.4X88.4)

16712-MEN-A30

$11.06

7

RUBBER, FUEL JOINT

16719-HN8-A61

$2.33

8

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

9

TANK, FUEL

17510-MEN-A50

Unavailable

10

BAND, RR. TANK

17516-KZ3-B00

$16.29

11

STAY, FR. FUEL TANK

17516-MEN-A30

$7.80

12

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

13

RUBBER, FUEL TANK MOUNTING

17518-MEN-A30

$11.87

14

PLATE, FUEL PUMP

17519-MEN-A30

$18.49

15

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$6.05

16

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.58

17

COVER, FUEL CONNECTOR

17575-MEN-A30

$7.02

18

RUBBER, FUEL CONNECTOR

17576-MEN-A30

$4.49

19

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.72

20

GUIDE, STOPPER CABLE

17578-MEN-A30

$8.43

21

CAP ASSY., FUEL TANK

17620-MEN-A30

$91.13

22

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

23

HOSE ASSY., FUEL FEED

17630-MEN-A31

$77.69

24

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

25

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

26

RUBBER, MUFFLER

18334-ML3-680

$3.87

27

COLLAR

84706-415-000

$2.23

28

SCREW (5X12)

90105-MEN-730

$1.67

29

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

30

COLLAR, FUEL PUMP

90503-MEN-A31

$4.67

31

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

32

TY-RAP, CABLE (240MM)

91560-MEN-A30

$1.97

33

TY-RAP, CABLE

91560-MS8-600

$2.38

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

35

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

36

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

37

BOLT, FLANGE (6X30)

96001-06030-00

$1.49

38

O-RING (10X2.4)

16702-KTR-940

$5.28

39

RUBBER, STOPPER

16735-MEN-A51

$7.92
