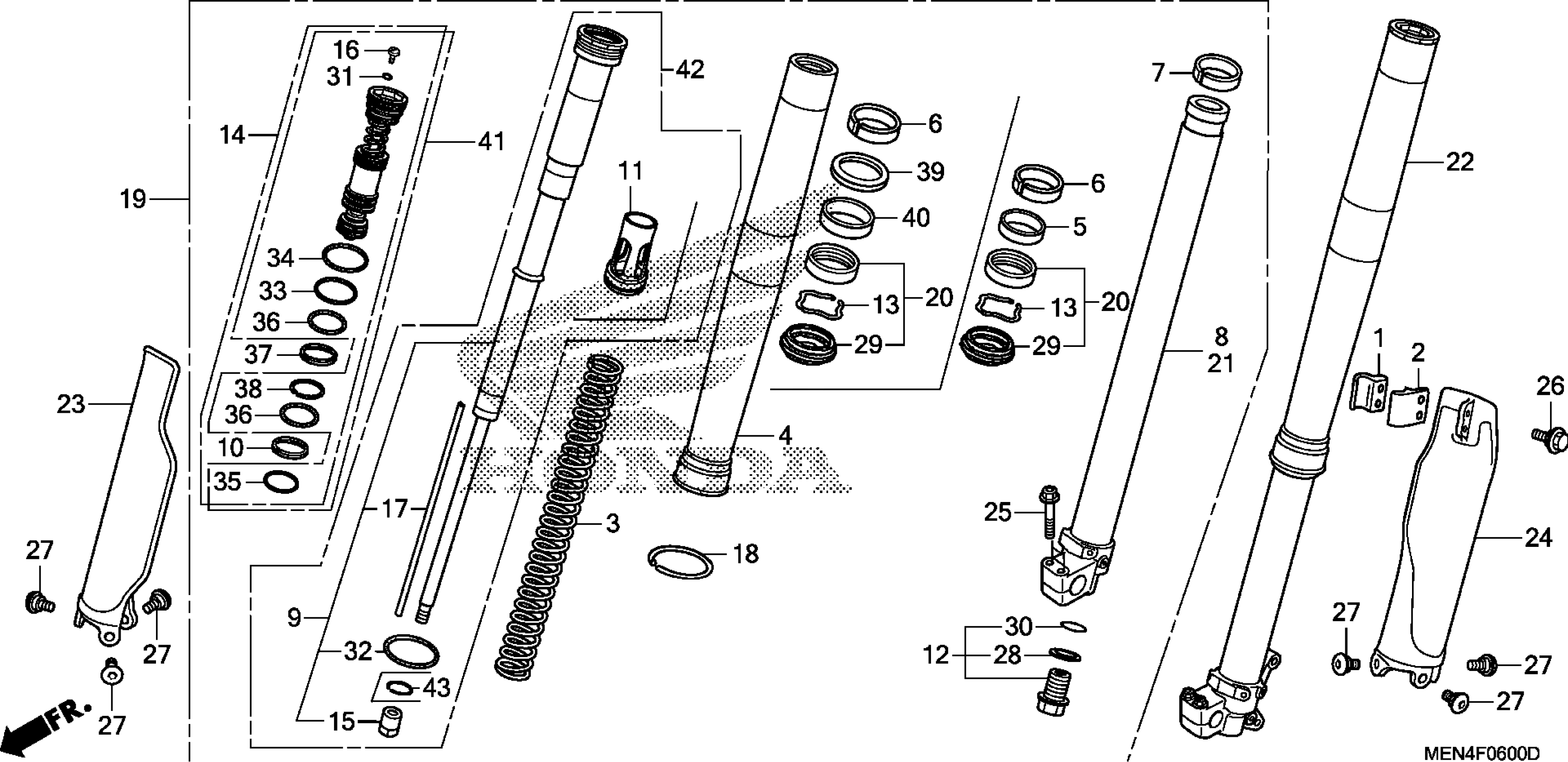

Honda CRF450RA (11) CRF450R, JPN, VIN# JH2PE053-BK900001 TO JH2PE053-BK999999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$6.36

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.69

3

SPRING, FR. FORK (4.6N/MM)

51401-MEN-A31

$89.77

3

SPRING, FR. FORK (4.4N/MM) | (Optional).

51402-MEN-A31

$89.77

3

SPRING, FR. FORK (4.8N/MM) | (Optional).

51403-MEN-A31

$89.77

4

TUBE (OUTER)

51410-MEN-A31

Unavailable

6

BUSH, GUIDE

51414-MEN-A31

$2.92

7

BUSH, SLIDER

51415-MEN-A31

$6.13

8

PIPE, R. SLIDE

51420-MEN-A51

$421.64

9

DAMPER, FR.

51430-MEN-A51

$463.89

11

COLLAR SEAT, SPRING

51432-MEN-A31

$59.26

12

BOLT, CENTER

51440-MEN-A31

$28.97

13

RING, OIL SEAL STOP

51447-MEN-A31

$2.98

15

NUT, LOCK

51451-MEN-A31

$11.42

16

BOLT, PLUG

51456-KZ4-J51

$6.17

17

COLLAR, REBOUND NEEDLE

51467-MEN-A31

$6.22

18

RING, WEAR

51476-MEN-A41

$3.23

19

FORK SUB-ASSY., R. FR. (COO)

51480-MEN-306

$1,463.75

20

SEAL SET, FR. FORK

51490-MEN-A51

$26.21

21

PIPE, L. SLIDE

51520-MEN-A51

Unavailable

22

FORK SUB-ASSY., L. FR. (COO)

51580-MEN-306

$1,507.98

23

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-MEN-000ZA

$41.22

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-MEN-000ZA

$44.97

25

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

26

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

27

BOLT, PROTECTOR

90113-MAC-780

$3.53

28

WASHER, SPECIAL

90545-KSR-711

$2.92

29

DUST SEAL

91252-MEN-A31

$10.12

30

O-RING

91256-KSR-711

$3.44

31

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

32

O-RING (44.4X3.1)

91352-MEN-A31

$2.75

33

O-RING (33.2X2.4)

91353-MEN-A31

$2.41

34

O-RING (39.7X2.4)

91354-MEN-A31

$2.41

35

O-RING (29.5X2.0)

91355-MEN-A31

$2.08

36

O-RING (29.7X3.5)

91356-MEN-A31

$2.08

38

RING, BACK-UP

91358-KSR-711

$8.33

39

RING, BACK-UP

51413-MEN-A51

$3.23

40

COLLAR

51416-MEN-A51

$4.85

41

BOLT ASSY., FR. FORK

51450-MEN-A51

$242.48
