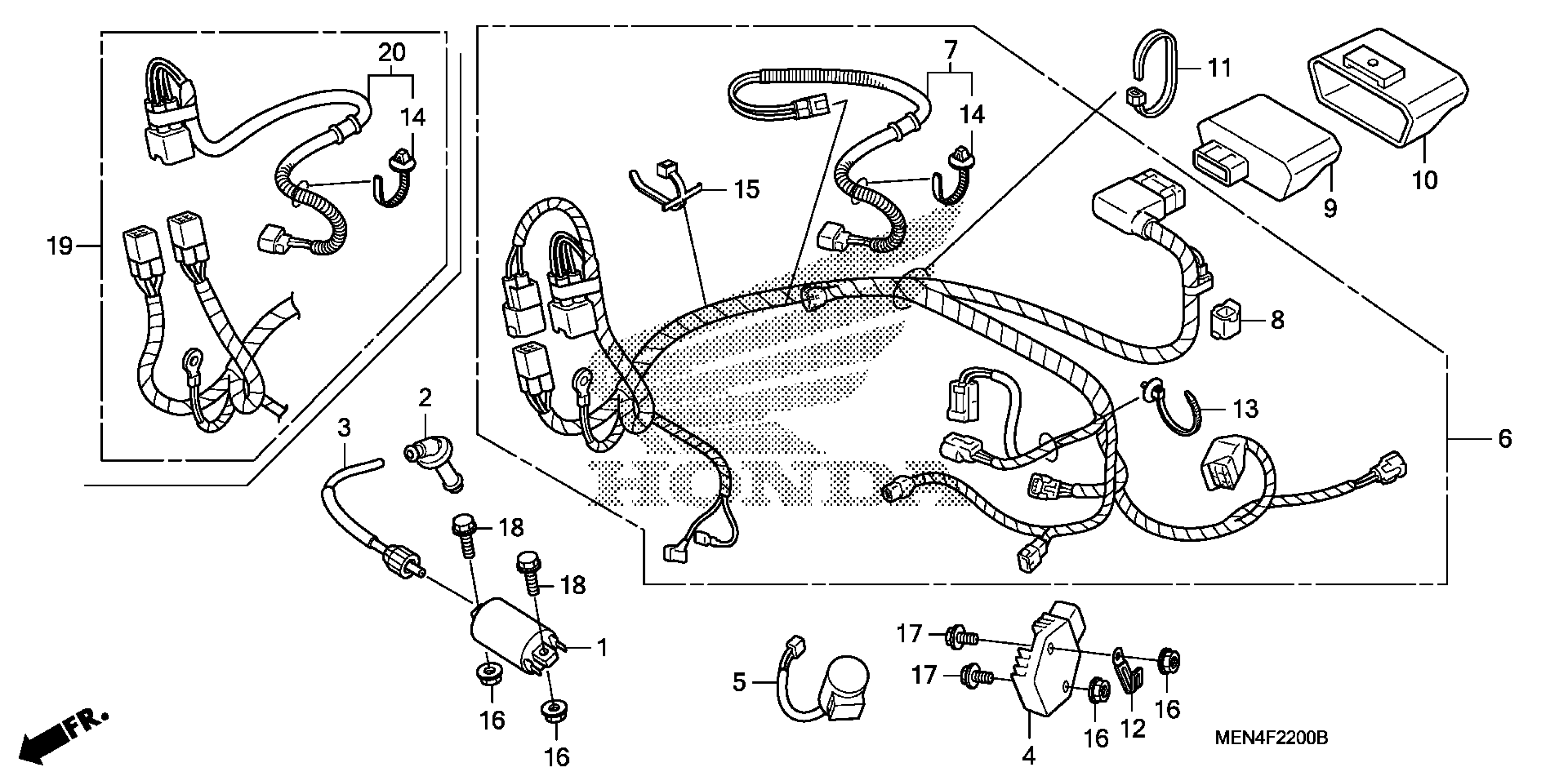

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 WIRE HARNESS Diagram

COIL, IGNITION

30500-ML7-013

$88.14

CAP ASSY., NOISE SUPPRESSOR

30700-MEN-A31

$47.17

WIRE ASSY., IGNITION

30731-MEN-A30

$18.15

RECTIFIER, REGULATOR

31600-MEN-A31

$237.98

CONDENSER UNIT

31700-MEN-A41

$249.25

PGM-FI UNIT

38770-MEN-A42

$725.03

SUSPENSION, UNIT (PGM-F1)

38771-MEN-A30

Unavailable

BAND, WIRE HARNESS

90620-SB2-003

$24.63

CLIP (2X70)

91410-KCR-000

$3.16

CLIP, HARNESS BAND (155.3MM) (BLACK)

91540-STK-003

$3.88

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.80

BAND, HARNESS

91548-SA5-003

$5.62

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

WIRE HARNESS

32100-MEN-A41

$324.69

SUB-HARNESS, FUEL PUMP

32101-MEN-A40

$19.31
