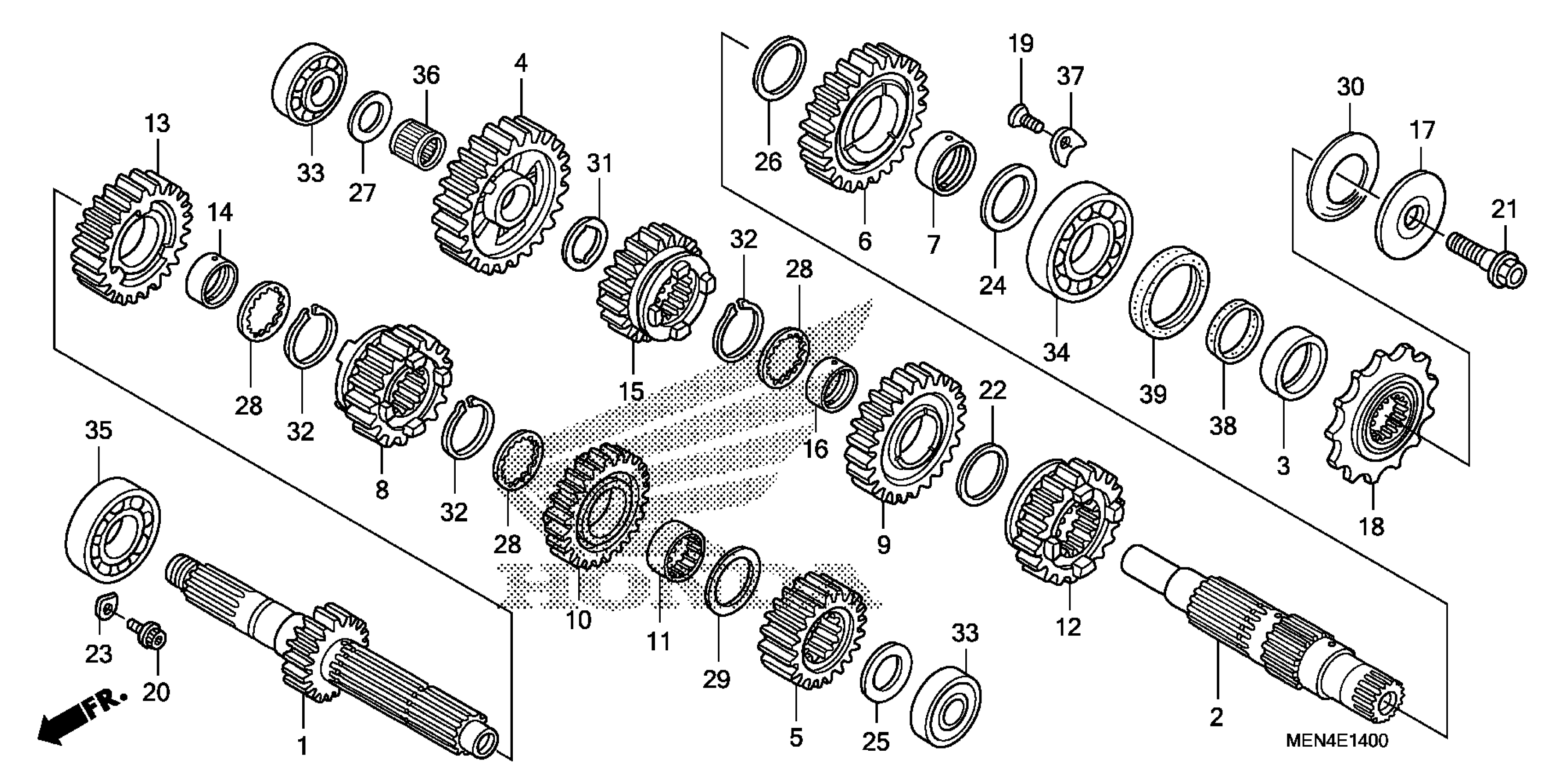

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23210-MEN-A30

$129.25

2

COUNTERSHAFT

23220-MEN-A30

$138.43

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$12.86

4

GEAR, COUNTERSHAFT LOW (27T)

23411-MEN-A30

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23421-MEN-A31

Unavailable

6

GEAR, COUNTERSHAFT SECOND (25T)

23431-MEN-A32

$99.41

7

COLLAR, COUNTERSHAFT SECOND GEAR

23432-MEN-A30

$10.78

8

GEAR, MAINSHAFT THIRD (17T)

23441-MEN-A30

$103.16

9

GEAR, COUNTERSHAFT THIRD (21T)

23451-MEN-A30

$84.68

10

GEAR, MAINSHAFT FOURTH (20T)

23461-MEN-A31

$95.46

11

COLLAR, MAINSHAFT FOURTH GEAR

23462-MEY-670

$12.13

12

GEAR, COUNTERSHAFT FOURTH (21T)

23471-MEN-A30

$92.41

13

GEAR, MAINSHAFT FIFTH (22T)

23481-MEN-A30

$94.38

14

COLLAR (25X28X10)

23482-MEN-A00

$11.76

15

GEAR, COUNTERSHAFT FIFTH (20T)

23491-MEN-A30

$96.74

16

COLLAR (25X28X11)

23492-KY2-000

$20.49

17

COLLAR, DRIVE SPROCKET

23802-KSC-670

$13.49

18

SPROCKET, DRIVE (13T)

23802-MEN-730

$36.27

19

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$1.88

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.19

21

BOLT, UBS (8X33)

90112-413-000

$3.68

22

WASHER (25X32X1.0)

90401-HP1-670

$2.65

23

PLATE, BEARING HOLDER | Use up to Engine SN 2803967.

90441-KA4-700

$3.19

23

PLATE, BEARING HOLDER | Use from Engine SN 2803968.

90441-KRM-840

$0.56

24

WASHER, THRUST (25.1X36X1.5)

90445-ML3-871

$4.88

25

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.68

26

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.65

27

WASHER, THRUST (17.2MM)

90446-357-000

$3.44

28

WASHER, THRUST INVOLUTE (25X31X1.5)

90451-MEY-670

$2.32

29

WASHER C, THRUST (25MM)

90459-357-000

$3.44

30

WASHER, SPRING (24MM)

90501-KSC-670

$4.07

31

WASHER, THRUST (19MM)

90554-KA5-680

$4.17

32

CIRCLIP (OUTER) (25MM)

90602-259-010

$5.87

33

BEARING, RADIAL BALL (6203U)

91001-KSK-671

$10.32

34

BEARING, RADIAL BALL (24X56X14) (TOYO)

91001-ML3-873

$17.37

35

BEARING, RADIAL BALL SPECIAL (6205U)

91003-MEN-A31

$16.16

36

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$8.63

37

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.66

38

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.50

39

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17
