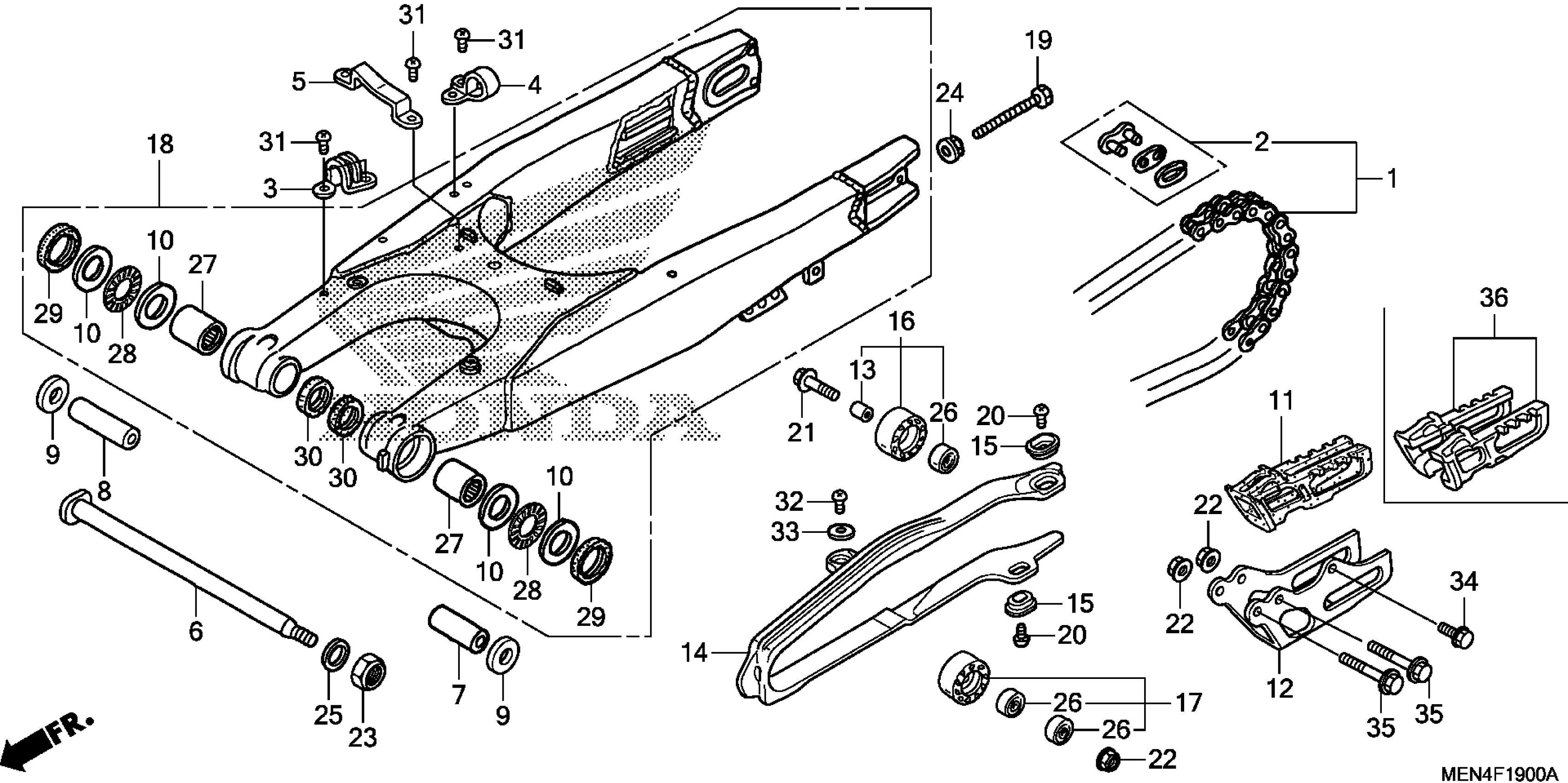

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL) This part replaces 40530-MEN-A31.

40530-MEN-A32

$158.31

1

CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL)

40530-MEN-A32

$158.31

1

CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO) (STANDARD LINK 114L) | (Optional).

40540-KRN-A31

$217.66

1

CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL) (STANDARD LINK 114L) | (Optional).

40540-KRN-A32

$205.25

2

MASTER LINK (RK EXCEL)

40531-KRN-A12

$7.85

2

MASTER LINK (DAIDO)

40531-KRN-A31

$7.89

3

GUIDE, BRAKE HOSE

43468-MCJ-000

$9.19

4

GUIDE, RR. BRAKE HOSE

43468-MEB-000

$3.86

5

GUIDE, BRAKE HOSE

43469-MEB-000

$4.65

6

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$25.58

7

COLLAR, SWINGARM (46MM)

52141-MEN-710

$22.70

8

COLLAR, SWINGARM SIDE (54MM)

52142-KZ4-J40

$16.91

9

COLLAR, SWINGARM PIVOT SIDE

52143-KZ4-J40

$4.10

10

WASHER, SWINGARM SIDE THRUST

52143-MEN-A30

$1.92

11

GUIDE, CHAIN

52146-MEN-J00

$34.62

12

PLATE, CHAIN GUIDE

52147-MEN-J00

$47.39

13

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.72

14

SLIDER, CHAIN

52170-MEN-A30

$57.95

15

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

16

ROLLER, CHAIN (38MM)

52175-MEN-A30

Unavailable

17

ROLLER, CHAIN (LOWER) (38MM)

52176-MEN-A30

$37.31

18

SWINGARM SUB-ASSY., RR. This part replaces 52200-MEN-A30.

52200-MEN-A50

Unavailable

18

SWINGARM SUB-ASSY., RR.

52200-MEN-A50

Unavailable

19

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.92

20

SCREW, PAN (5X8)

90115-KV3-700

$2.61

21

BOLT, FLANGE (8X32)

90124-MEB-770

$2.03

22

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

23

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.81

24

NUT, HEX. (10MM)

90309-357-000

$3.40

25

WASHER (26X14X2.8)

90501-GAH-000

$6.63

25

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.63

26

BEARING, RADIAL BALL (608UU)

91051-KRN-A31

$12.50

27

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

27

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

28

BEARING, NEEDLE THRUST

91072-KZ3-861

$13.46

29

DUST SEAL (30X37X4)

91253-KZ3-861

$8.68

30

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.92

31

BOLT, FLANGE (8X62)

93500-05008-0A

$1.49

32

SCREW, PAN (5X8)

93500-05008-0G

$1.49

33

WASHER, PLAIN (5MM)

94103-05700

$1.49

34

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

35

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
