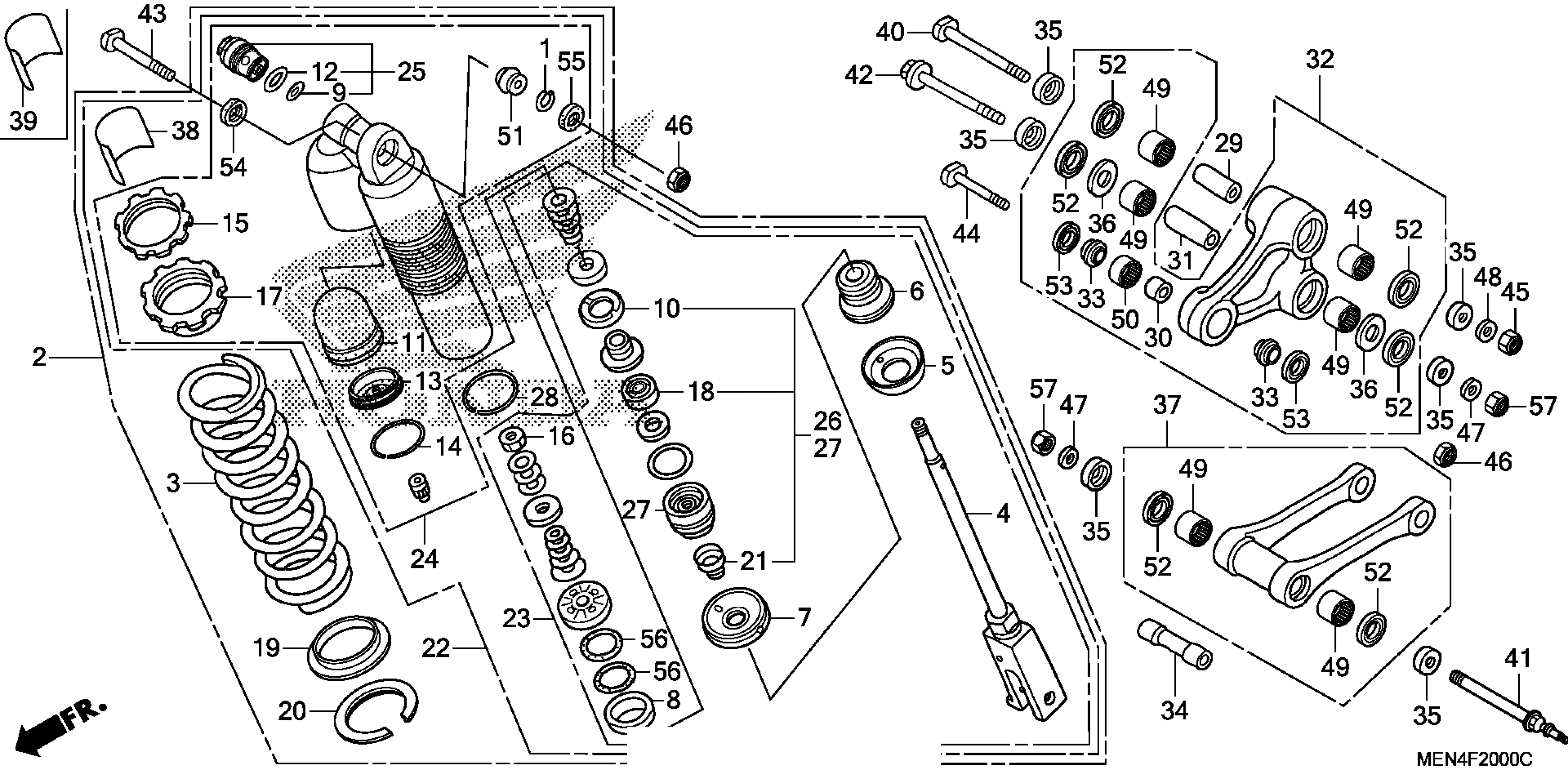

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.83

2

CUSHION ASSY., RR. (COO)

52400-MEN-305

$1,078.81

3

SPRING, RR. SHOCK ABSORBER (54N/MM)

52401-MEN-A31

$186.00

3

SPRING, RR. SHOCK ABSORBER (52N/MM) | (Optional).

52402-MEN-A31

$180.62

3

SPRING, RR. SHOCK ABSORBER (56N/MM) | (Optional).

52403-MEN-A31

$194.38

4

ROD

52421-MEN-A41

$407.87

5

CAP, BUMPER RUBBER

52422-MEN-A31

$15.04

6

RUBBER, BUMPER

52423-MEN-A31

$12.54

7

CAP, CASE

52424-MEN-A31

$14.15

8

RING, PISTON

52428-MEN-A31

$13.19

9

O-RING (21.5X1.5)

52433-MAC-741

$3.21

10

RUBBER, STOPPER

52434-KSR-711

$3.57

11

BLADDER

52434-MEN-A31

$15.18

12

O-RING (25.5X2.0)

52435-MAC-741

$5.21

13

CAP, BLADDER

52435-MEN-A31

$29.91

14

RING, SNAP

52436-MEN-A31

$2.88

15

NUT, ADJUST

52437-MEN-A31

$7.31

16

NUT, HEX. (12MM)

52438-KA3-731

$3.15

17

SEAT, SPRING (UPPER)

52438-MEN-A31

$11.90

18

OIL SEAL

52439-KSR-711

$3.93

19

WASHER, SPRING SEAT

52439-MEN-A31

$7.76

20

SEAT, SPRING (LOWER)

52440-MEN-A31

$27.37

21

DUST SEAL

52441-MEN-A31

$5.21

22

DAMPER, RR.

52410-MEN-A41

$841.56

23

ROD, PISTON

52422-MEN-A41

$381.00

24

CASE, RR.

52425-MEN-A41

$783.46

25

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MEN-A41

$90.22

26

OIL SEAL SET

52446-MEN-A31

$19.54

27

CASE ASSY., ROD GUIDE

52447-MEN-A31

$71.66

28

RING, SNAP

52448-MEN-A31

$2.88

29

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.44

30

COLLAR D, CUSHION ARM

52464-KRN-710

$9.44

31

COLLAR B, CUSHION

52464-MEN-A30

$7.00

32

ARM SUB-ASSY., CUSHION

52465-MEN-A30

$264.07

33

COLLAR D, CUSHION ARM SIDE

52466-KRN-710

$3.71

34

COLLAR, CONNECTING ROD

52473-MEN-A30

$14.76

35

COLLAR, LINK SIDE

52475-KZ4-J20

$6.48

36

WASHER, THRUST

52476-KZ4-J20

$4.95

37

ROD SUB-ASSY., CUSHION CONNECTING

52479-MEN-A30

Unavailable

38

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.22

40

BOLT, LINK (12X82)

90130-MEN-840

$9.51

41

BOLT, LINK (12X116)

90131-MEN-A30

$12.41

42

BOLT, LINK (12X87)

90132-MEN-A30

$9.79

43

BOLT, CUSHION (UPPER) (10X53)

90152-MEB-750

$2.80

44

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$8.08

45

NUT, U (12MM)

90305-KRN-A30

$4.51

46

NUT, U (10MM)

90306-KZ4-711

$3.58

47

WASHER, PLAIN (12MM)

90501-KRN-710

$3.77

48

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.06

49

BEARING, NEEDLE (20X26X15)

91051-KSC-003

$8.08

50

BEARING, NEEDLE (19X26X13)

91074-KRN-711

$7.84

51

BEARING, SPHERICAL (10)

91074-MAC-741

$32.15

52

DUST SEAL (25X32X4)

91262-KZ3-731

$7.16

53

DUST SEAL (17.5X26X3)

91351-KRN-711

$2.71

54

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.66

55

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.16

56

O-RING

91351-MEN-A31

$2.54

57

NUT, U (12MM)

90305-KRN-A30

$4.51
