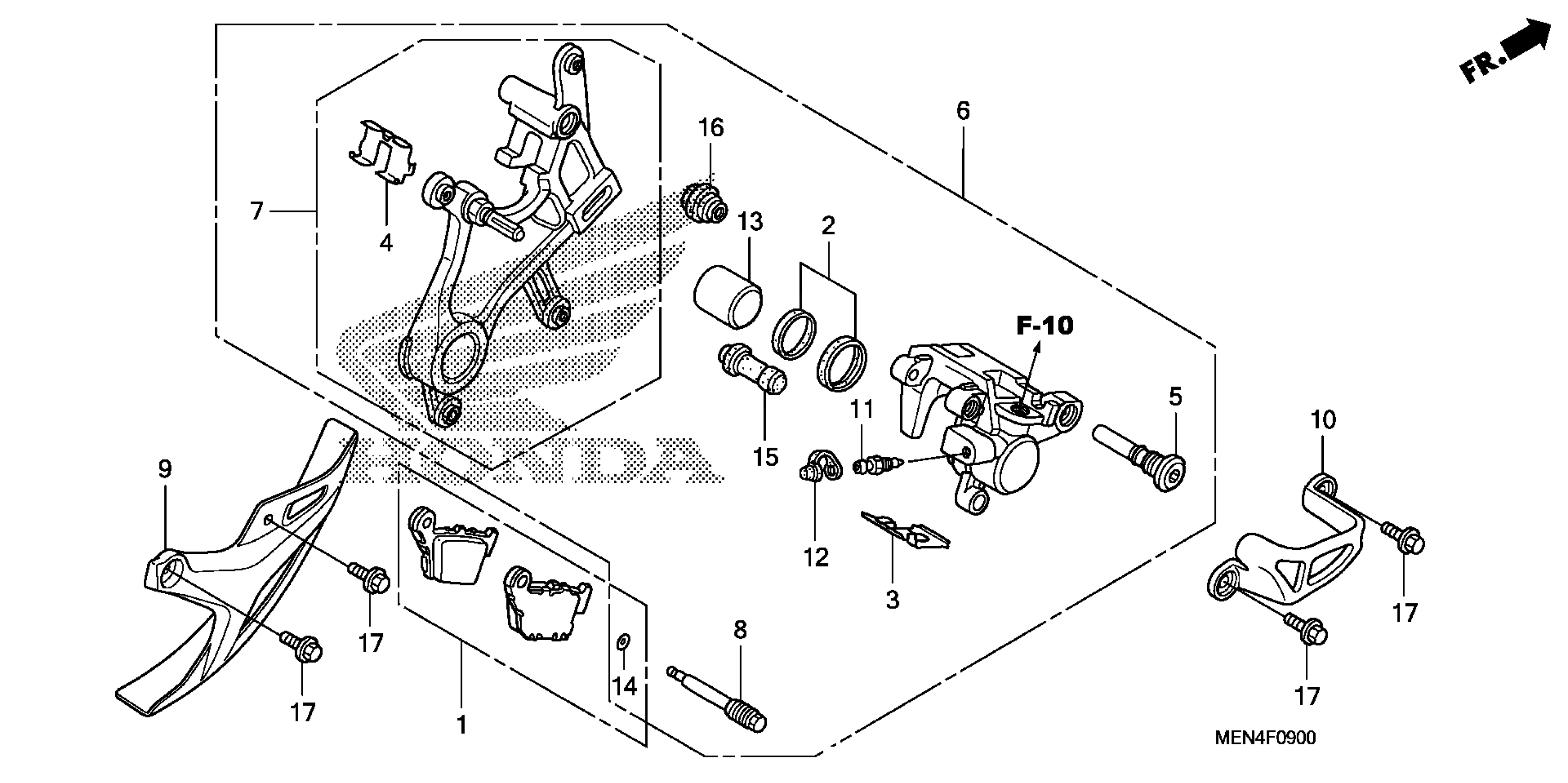

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 REAR BRAKE CALIPER Diagram

PAD SET, RR.

06435-KRN-712

$40.12

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

SPRING, PAD

43108-KZ4-J41

$3.61

RETAINER, BRACKET

43112-KZ4-J41

$4.05

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-KRN-711

$242.29

BRACKET SUB-ASSY., RR.

43190-KRN-711

$107.94

PIN, HANGER

43215-KZ4-J41

Unavailable

COVER, RR. DISK *TNATURAL* (NATURAL)

43330-KRN-A30ZA

$22.06

GUARD, RR. CALIPER *TNATURAL* (NATURAL)

43340-MEY-000ZA

$16.10

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (22 A)

45107-MCT-006

$27.07

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95
