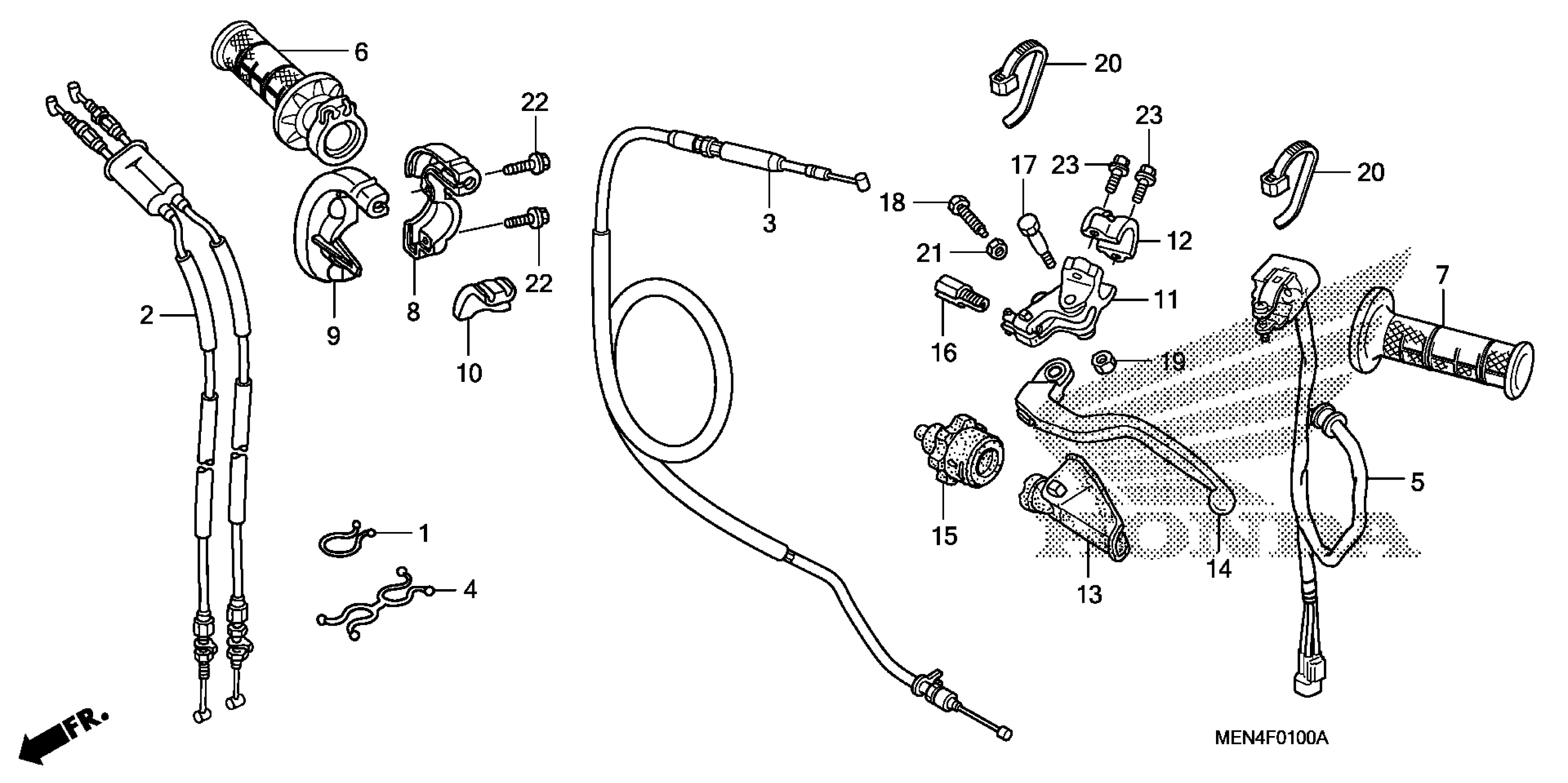

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

HOLDER, TUBE

17233-KCZ-J20

$1.71

2

CABLE, THROTTLE This part replaces 17910-MEN-A30.

17910-MEN-A81

$43.42

2

CABLE, THROTTLE This part replaces 17910-MEN-A71.

17910-MEN-A81

$43.42

2

CABLE, THROTTLE

17910-MEN-A81

$43.42

3

CABLE, CLUTCH

22870-MEN-A30

$28.92

4

PURSE, LOCK (11.5MM)

32173-MEN-A30

$2.12

5

SWITCH ASSY., ENGINE STOP & INDICATOR

35130-MEN-A31

$79.75

6

GRIP, THROTTLE

53140-KRN-A30

$20.08

6

GRIP, THROTTLE This part replaces 53140-MEN-305.

53140-KRN-A30

$20.08

7

GRIP, L. HANDLE

53166-KRN-A30

$9.49

7

GRIP, L. HANDLE This part replaces 53166-MEN-305.

53166-KRN-A30

$9.49

8

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$19.77

9

HOUSING, THROTTLE (LOWER)

53168-KRN-A90

$27.07

9

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-671.

53168-KRN-A90

$27.07

10

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.13

11

BRACKET, L. HANDLE LEVER

53172-KSK-670

$39.01

12

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.36

13

COVER, L. HANDLE LEVER

53177-KSK-670

$9.05

14

LEVER, L. HANDLEBAR

53178-MEN-A01

$22.10

14

LEVER, L. HANDLEBAR This part replaces 53178-MEN-305.

53178-MEN-A01

$22.10

15

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.35

16

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.56

17

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.68

18

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.71

19

NUT, U (6MM)

90301-782-000

$1.50

20

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

22

BOLT, FLANGE (6X20)

96001-06020-07

$1.25

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
