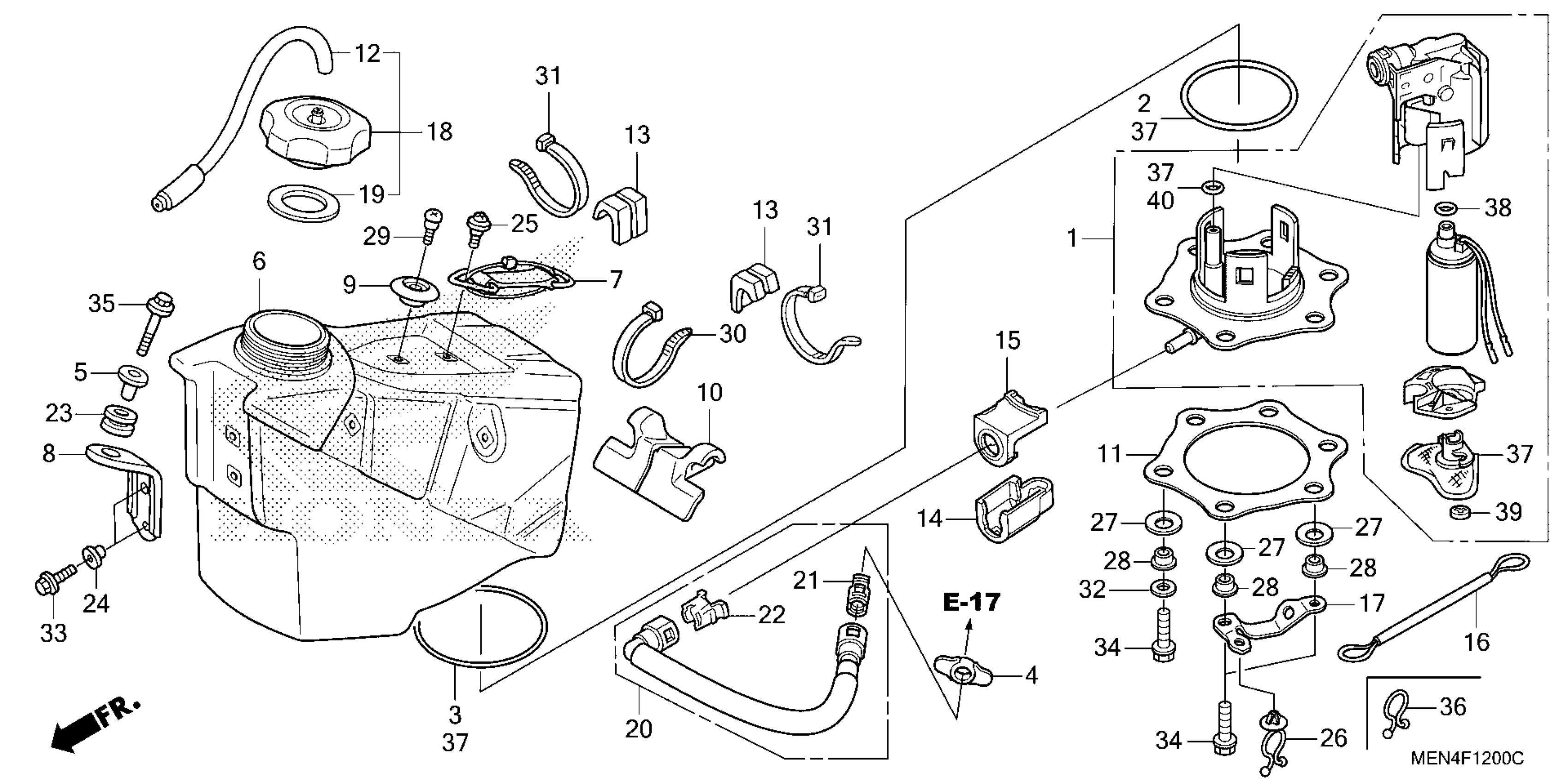

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 FUEL TANK (1) Diagram

#

Description
Price

1

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) | Use up to Frame SN AK801858. This part replaces 16700-MEN-A31.

16700-MEN-A52

$364.34

1

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) This part replaces 16700-MEN-A32.

16700-MEN-A52

$364.34

1

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$364.34

2

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

3

O-RING (2.4X88.4)

16712-MEN-A30

$11.06

4

RUBBER, FUEL JOINT

16719-HN8-A61

$2.33

5

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

6

TANK, FUEL This part replaces 17510-MEN-A30.

17510-MEN-A50

Unavailable

6

TANK, FUEL

17510-MEN-A50

Unavailable

7

BAND, RR. TANK

17516-KZ3-B00

$16.29

8

STAY, FR. FUEL TANK

17516-MEN-A30

$7.80

9

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

10

RUBBER, FUEL TANK MOUNTING

17518-MEN-A30

$11.87

11

PLATE, FUEL PUMP

17519-MEN-A30

$18.49

12

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$6.05

13

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.58

14

COVER, FUEL CONNECTOR

17575-MEN-A30

$7.02

15

RUBBER, FUEL CONNECTOR

17576-MEN-A30

$4.49

16

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.72

17

GUIDE, STOPPER CABLE

17578-MEN-A30

$8.43

18

CAP ASSY., FUEL TANK

17620-MEN-A30

$91.13

19

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

20

HOSE ASSY., FUEL FEED

17630-MEN-A31

$77.69

21

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

22

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

23

RUBBER, MUFFLER

18334-ML3-680

$3.87

24

COLLAR

84706-415-000

$2.23

25

SCREW (5X12)

90105-MEN-730

$1.67

27

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

28

COLLAR, FUEL PUMP

90503-MEN-A31

$4.67

29

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

30

TY-RAP, CABLE (240MM)

91560-MEN-A30

$1.97

31

TY-RAP, CABLE

91560-MS8-600

$2.38

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

33

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

34

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

35

BOLT, FLANGE (6X30)

96001-06030-00

$1.49

36

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.39

37

FILTER KIT, FUEL | Use up to Frame SN AK801854. This part replaces 06160-MEN-A30.

06160-MEN-A31

$49.98

37

FILTER KIT, FUEL | Use from Frame SN AK801855.

06160-MEN-A31

$49.98

38

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

39

CLIP, FUEL PUMP

16920-SE0-931

$3.75

40

O-RING (10X2.4)

16702-KTR-940

$5.28
