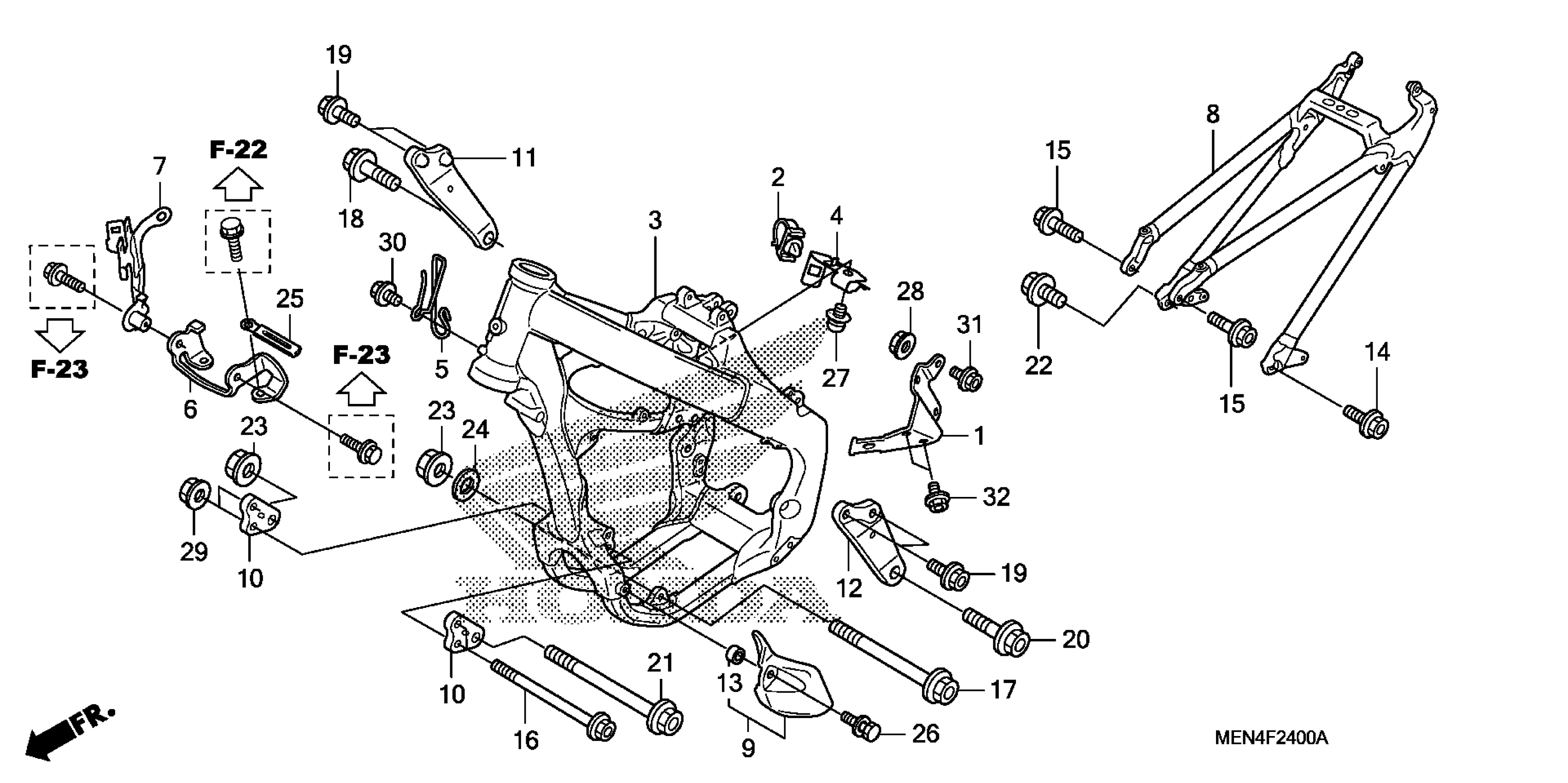

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 FRAME Diagram

#

Description
Price

1

BRACKET, REGULATOR

31410-MEN-A30

Unavailable

2

CLAMP, WIRE

32660-MJ6-710

$3.75

3

FRAME This part replaces 50100-MEN-A30.

50100-MEN-A50

$2,812.79

3

FRAME

50100-MEN-A50

$2,812.79

4

STAY, STOPPER CABLE

50127-MEN-A30

$6.15

5

GUIDE, CABLE

50128-MEN-A30

Unavailable

6

STAY, IGNITION COIL

50131-MEN-A30

Unavailable

7

STAY, CONNECTOR

50180-MEN-A30

Unavailable

8

FRAME, RR.

50200-MEN-A30

$701.52

9

GUARD, L. ENGINE

50360-MEN-A30

$15.70

10

PLATE, FR. ENGINE HANGER

50405-MEN-A30

$8.93

11

PLATE, R. HEAD HANGER

50407-MEN-A30

$50.03

12

PLATE, L. HEAD HANGER

50408-MEN-A30

Unavailable

13

COLLAR, SPLASH GUARD

80123-MA1-640

$2.05

14

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.66

15

BOLT (8X28)

90101-MEN-A10

$2.92

16

BOLT, FLANGE (8X121)

90101-MEN-A30

$6.07

17

BOLT, FLANGE (10X132)

90101-MEN-670

$5.10

18

BOLT, FLANGE (10X30)

90102-MEN-A30

$3.65

19

BOLT, FLANGE (8X18)

90103-MEB-670

$1.95

20

BOLT, FLANGE (10X37)

90105-MEN-A30

$3.65

21

BOLT, FLANGE (10X123)

90106-MEN-A30

$5.80

22

BOLT (10X24)

90122-MEN-730

$2.33

23

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.72

24

WASHER (10MM)

90410-HC4-000

$3.81

25

CLIP (4X60)

91410-KT7-000

$5.03

26

BOLT-WASHER (6X18)

93404-06018-00

$1.49

27

SCREW-WASHER (4X16)

93891-04016-08

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

31

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

32

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
