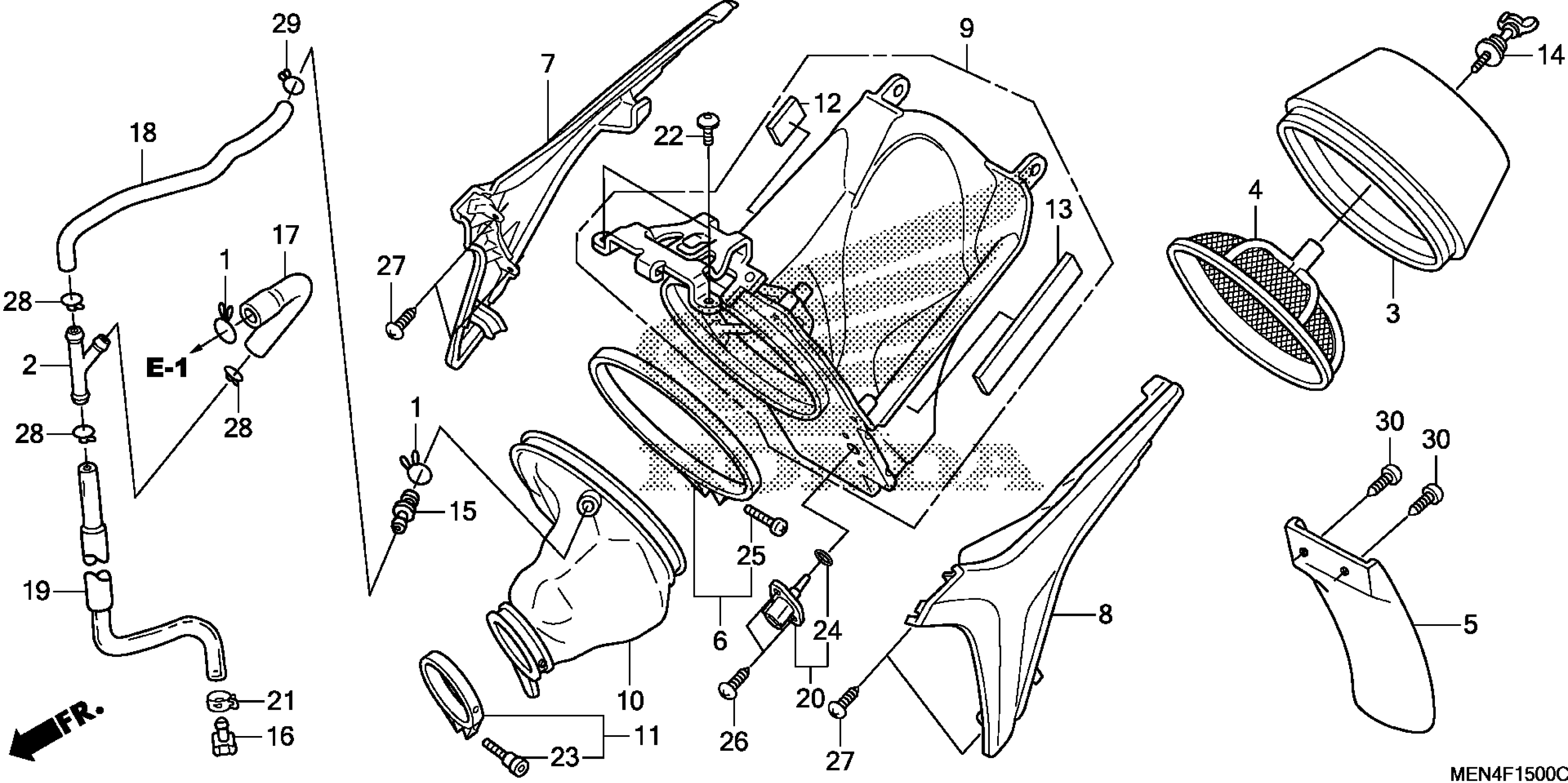

Honda CRF450RA (10) CRF450R, JPN, VIN# JH2PE053-AK800001 TO JH2PE053-AK899999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

JOINT, FUEL TUBE

16959-MY1-000

$17.77

3

ELEMENT, AIR CLEANER

17213-MEN-A31

$56.44

4

BASE ASSY., ELEMENT

17214-MEN-A31

$60.59

5

SPLASH GUARD, AIR CLEANER HOUSING

17218-MEN-A20

$39.05

6

BAND, AIR CLEANER CONNECTING TUBE (171)

17221-MEN-A30

$17.25

7

CASE, R. AIR CLEANER

17231-MEN-A31

$26.49

8

CASE, L. AIR CLEANER

17232-MEN-A31

$26.49

9

HOUSING, AIR CLEANER

17250-MEN-A31

$117.11

10

TUBE, AIR CLEANER CONNECTING

17253-MEN-A30

Unavailable

11

BAND, AIR CLEANER CONNECTING TUBE (64)

17255-MEN-A30

$13.92

12

RUBBER, AIR CLEANER HOUSING (R)

17256-MEN-A30

$1.49

13

RUBBER, AIR CLEANER HOUSING (L)

17257-MEN-A30

$2.39

14

BOLT, AIR CLEANER ELEMENT SETTING

17291-MEB-670

$6.40

15

JOINT, BREATHER TUBE

17359-MAG-L00

$5.26

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

TUBE A, BREATHER

17372-MEN-A30

$9.28

18

TUBE B, BREATHER

17374-MEN-A30

$12.20

19

TUBE C, BREATHER

17375-MEN-A30

$8.80

20

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

21

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

22

SCREW, PAN (6X12)

90106-KSE-000

$1.97

23

BOLT, SOCKET (4X25)

90107-MEN-A30

$2.23

24

O-RING (7.5X1.5) (Honda Code 2684819)

91303-PK2-005

$2.81

25

SCREW, PAN (4X25)

93500-04025-0G

$1.49

26

SCREW, TAPPING (5X20)

93911-25520

$1.49

27

SCREW, TAPPING (5X20)

93913-15510

$1.49

28

CLIP, TUBE (B12)

95002-02120

$2.00

29

CLIP, TUBE (B12.5)

95002-02130

$1.49

30

SCREW, TAPPING (5X20)

93913-15510

$1.49
