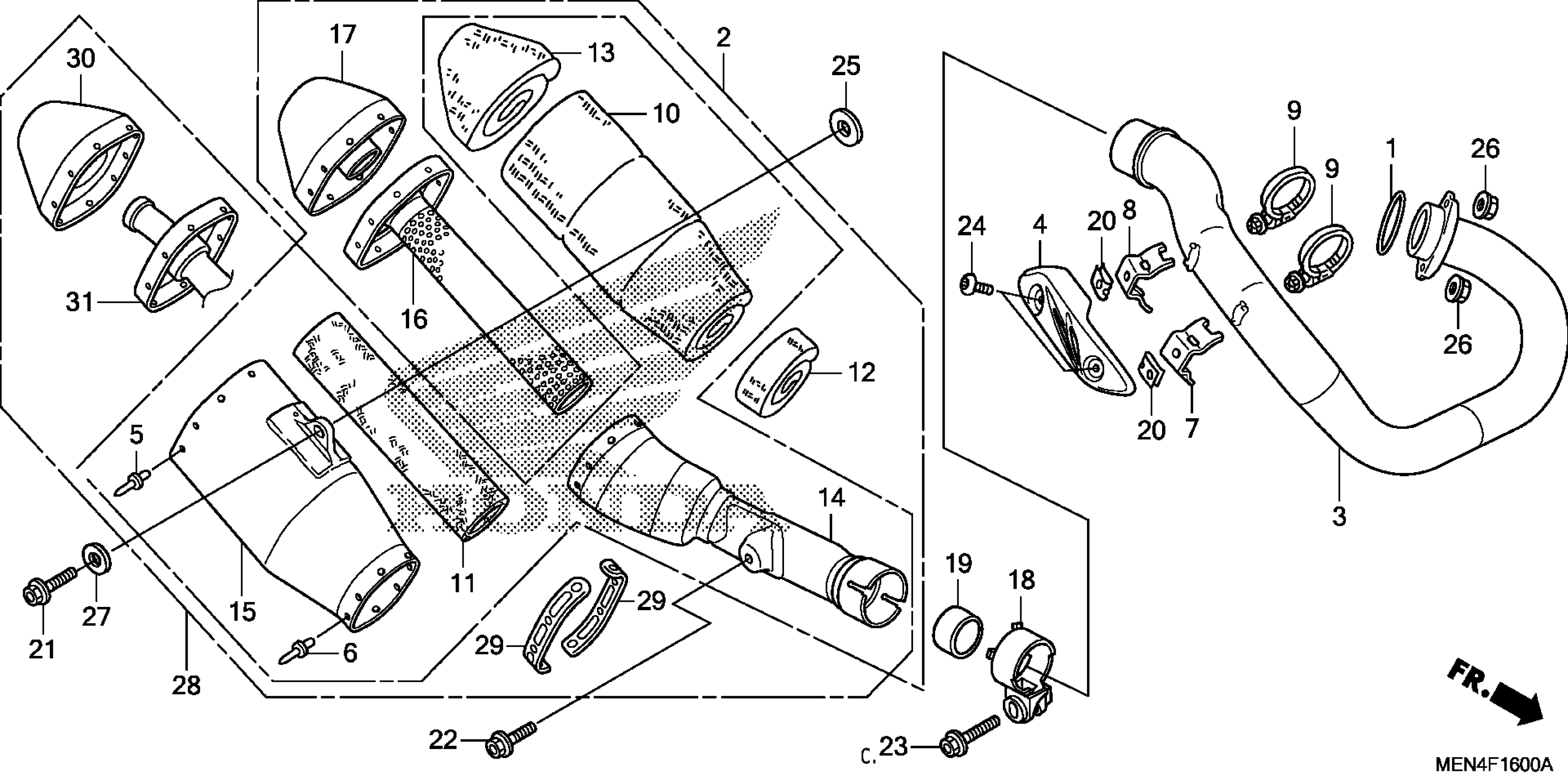

Honda CRF450RA (09) CRF450R, JPN, VIN# JH2PE053-9K700001 TO JH2PE053-9K799999 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.58

2

MUFFLER (COO) | Use up to Frame SN 9K705911. This part replaces 18310-MEN-A30.

18310-MEN-305

Unavailable

2

MUFFLER (COO) This part replaces 18310-MEN-A31.

18310-MEN-305

Unavailable

2

MUFFLER (COO)

18310-MEN-305

Unavailable

3

PIPE, EX.

18320-MEN-A30

Unavailable

4

PROTECTOR, EX. PIPE

18323-MEN-A30

$74.72

5

RIVET, BLIND (4.8)

18324-MEB-670

$0.97

6

RIVET, BLIND (3.2)

18326-KRN-A00

$1.13

7

STAY, EX. PIPE PROTECTOR

18327-MEN-A30

$5.38

8

STAY, RR. EX. PIPE PROTECTOR

18328-MEN-A30

$5.38

9

BAND, EX. PROTECTOR

18329-MEN-A30

$13.46

10

WOOL, CENTER GLASS

18334-MEN-A30

$125.62

11

WOOL, SUS

18336-MEN-A30

Unavailable

12

PACK B, GLASS WOOL

18337-KRN-A10

$20.75

13

WOOL, TAIL GLASS

18339-MEN-A30

$21.58

14

MUFFLER, FR. | Use up to Frame SN 9K705911.

18360-MEN-A30

$1,106.33

14

MUFFLER, FR. | Use from Frame SN 9K705912.

18360-MEN-A31

$1,224.28

15

BODY, MUFFLER

18361-MEN-A30

$359.62

16

SEPARATOR

18362-MEN-A30

$47.16

17

MUFFLER, RR.

18363-MEN-A30

$153.45

18

BAND, MUFFLER JOINT

18375-MEN-A30

$19.22

19

GASKET, MUFFLER

18391-ML0-003

$26.30

20

NUT, SPRING (6MM)

19508-KA3-710

$5.34

21

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.42

22

BOLT (8X20)

90109-MEN-A30

$2.77

23

BOLT (8X30)

90124-MEN-A00

$2.39

24

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.64

25

WASHER, RR. MUFFLER

90514-MEN-730

$2.72

26

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

27

WASHER, PLAIN (8MM)

94103-08000

$0.59
