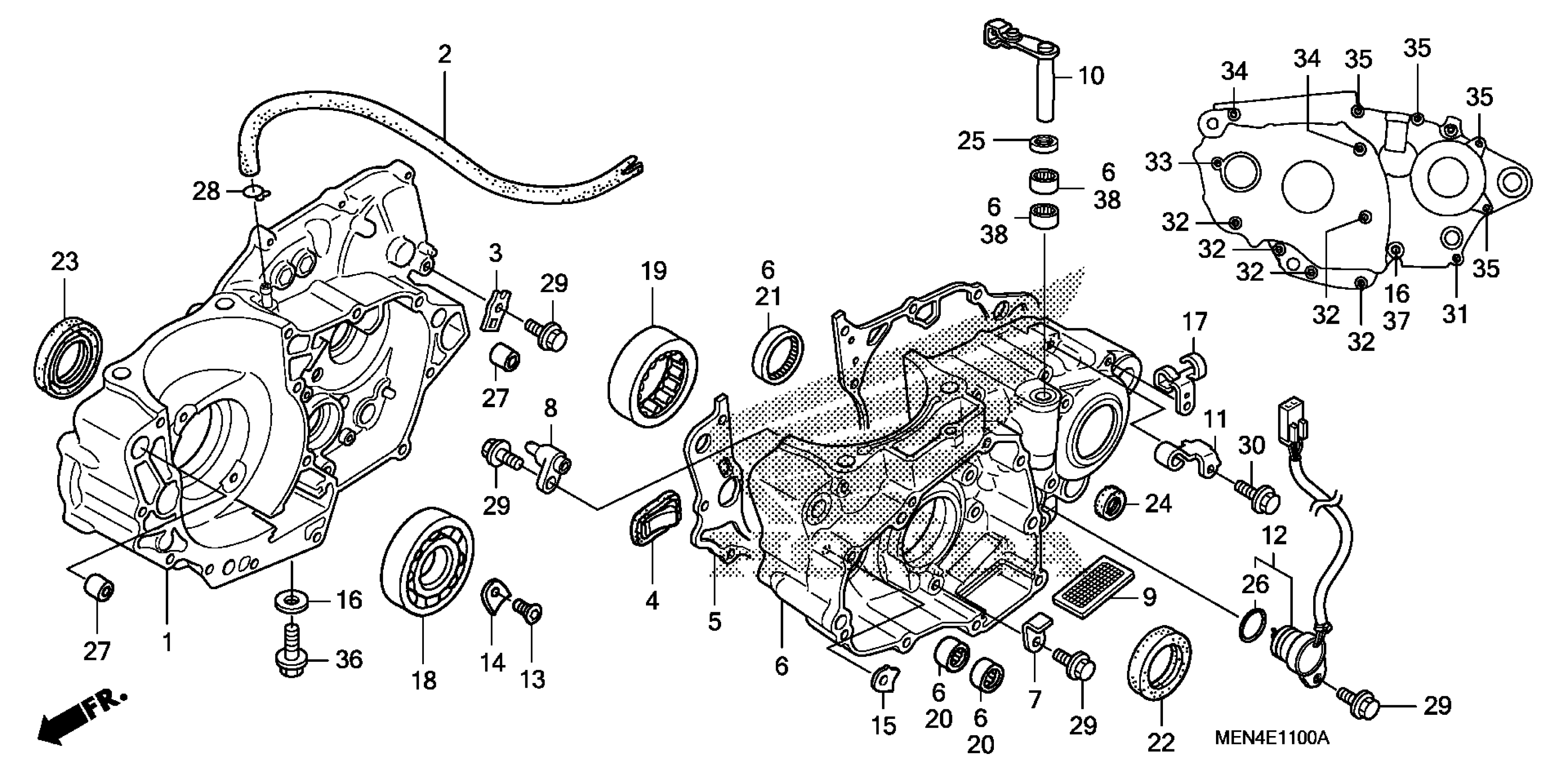

Honda CRF450RA (09) CRF450R, JPN, VIN# JH2PE053-9K700001 TO JH2PE053-9K799999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MEN-A30

$446.62

2

TUBE, BREATHER

11105-MEB-670

$12.03

3

PLATE, TUBE GUIDE

11106-MEN-A30

$1.63

4

VALVE, REED

11110-MEN-A31

$22.28

5

GASKET, CRANKCASE

11191-MEN-A30

$19.18

6

CRANKCASE, L.

11200-MEN-A30

$450.50

7

PLATE, CAM CHAIN GUIDE

11206-MEN-A30

$3.09

8

JET, PISTON (#80)

11210-MEN-A30

$26.26

9

SCREEN, OIL FILTER

15421-MEN-A31

$9.43

10

LEVER, CLUTCH LIFTER

22810-MEN-A30

Unavailable

11

RECEIVER, CLUTCH CABLE

22838-MEN-A30

$5.03

12

SWITCH ASSY., CHANGE This part replaces 35759-MEN-A31.

35759-MEN-A32

Unavailable

13

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.66

14

PLATE, BEARING HOLDER

90441-MEN-A30

$3.44

15

PLATE, BEARING HOLDER

90442-MEN-A30

$3.21

16

WASHER, SEALING (8MM)

90474-333-000

$4.15

17

GUIDE, TUBE

90610-MEN-A30

$5.99

18

BEARING, SPECIAL RADIAL BALL (6306)

91001-MEB-671

$21.42

19

BEARING, SPECIAL ROLLER (NTN)

91002-MEY-671

$45.83

20

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$12.24

21

BEARING, SHELL (33X38X8) (TOYO)

91022-KA4-740

$16.41

22

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$12.07

23

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$13.34

24

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

25

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.29

26

O-RING (16.5X2.5)

91305-KC1-850

$1.81

27

PIN A, DOWEL (14X20)

94301-14200

$2.80

28

CLIP, TUBE (B10)

95002-02100

$1.75

29

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

30

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

31

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

32

BOLT, FLANGE (6X55)

96001-06055-00

Unavailable

33

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable

34

BOLT, FLANGE (6X70)

96001-06070-00

$1.81

35

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

36

BOLT, FLANGE (8X20) BOLT, FLANGE (8X12)

96300-08020-00

$1.46

37

BOLT, FLANGE (8X65)

96300-08065-00

$2.21

38

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

38

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99
