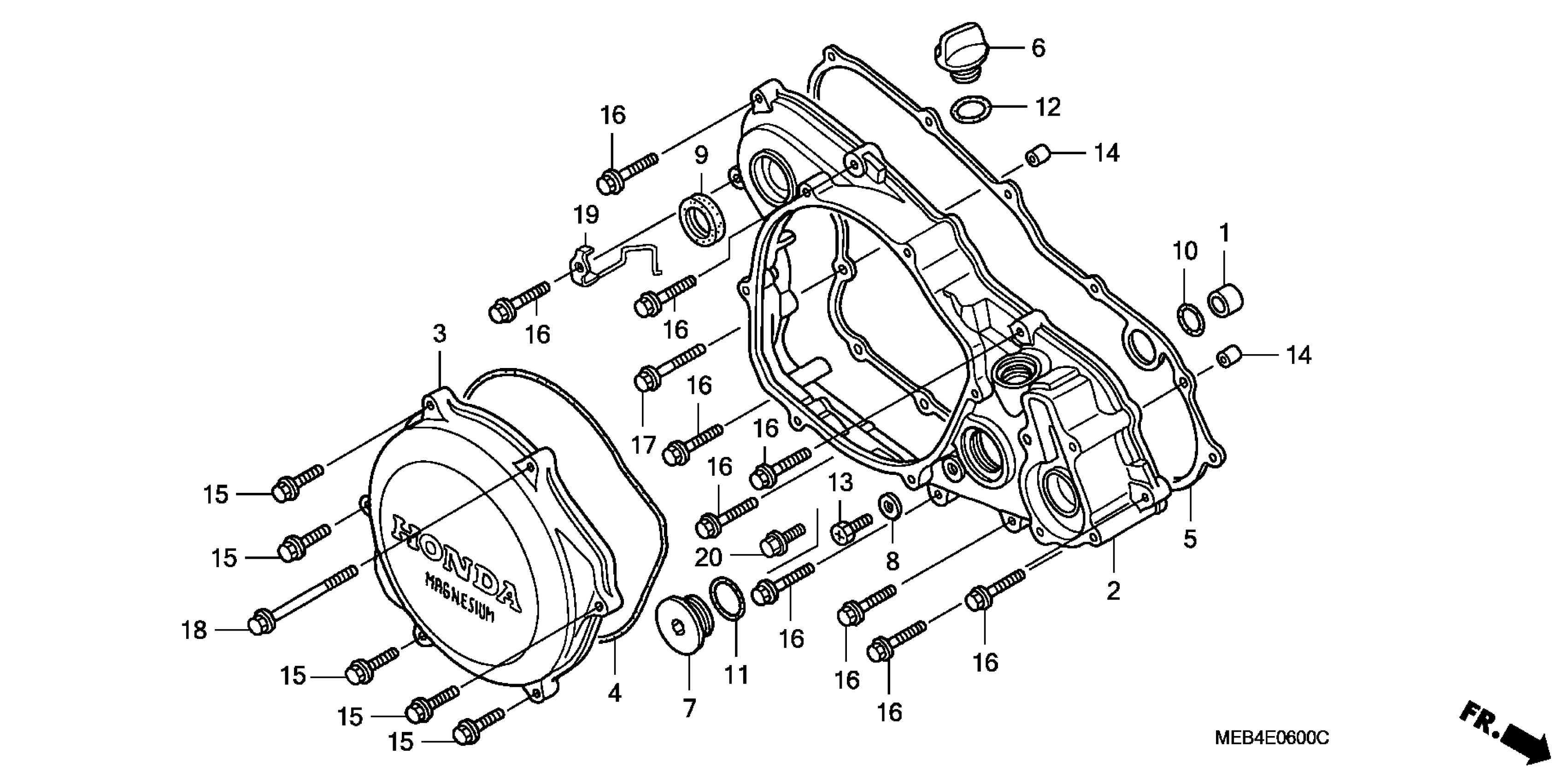

Honda CRF450RA (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 RIGHT CRANKCASE COVER Diagram

COLLAR, WATER PASS (18MM)

11102-MEB-670

$3.26

COVER, R. CRANKCASE

11331-MEN-A00

Unavailable

COVER, CLUTCH

11351-MEB-670

$93.07

GASKET, CLUTCH COVER

11352-MEB-671

$9.43

GASKET, R. COVER

11394-MEB-670

$20.83

CAP, OIL FILLER

15611-KA4-710

$14.40

CAP (30MM)

90087-KW3-000

$20.93

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

CLAMP, AIR VENT TUBE

16240-MEN-730

$7.67

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10
