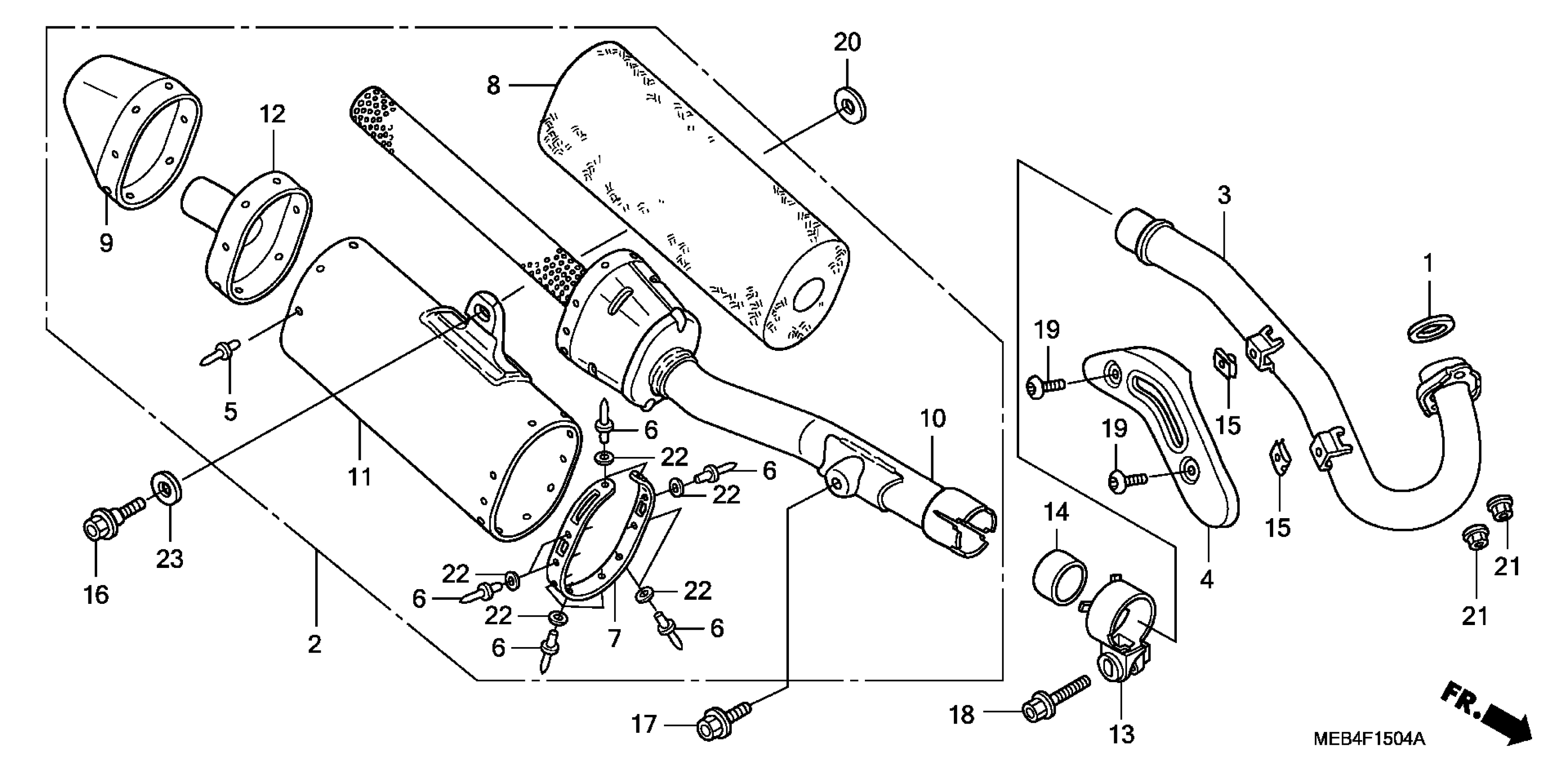

Honda CRF450RA (07) MOTORCYCLE, JPN, VIN# JH2PE053-7M500001 TO JH2PE053-7M519999 MUFFLER ('07-) Diagram

GASKET, EX. PIPE

18291-MEB-670

$4.69

MUFFLER (98DB)

18310-MEN-A00

Unavailable

PIPE, EX.

18320-MEN-850

Unavailable

PROTECTOR, EX. PIPE

18323-MEN-730

$55.60

RIVET, BLIND (4.8) This part replaces 18324-MEN-A00.

18324-MEB-670

$0.99

RIVET, BLIND (4.8)

18328-MEN-850

Unavailable

BAND, FR. MUFFLER BODY

18329-MEN-850

$45.59

WOOL, GLASS

18336-MEN-670

Unavailable

CAP, END

18338-MEN-A00

Unavailable

MUFFLER, FR. (98DB)

18350-MEN-A00

$472.26

BODY, MUFFLER (98DB)

18351-MEN-A00

Unavailable

MUFFLER, RR. (98DB)

18352-MEN-730

Unavailable

BAND, MUFFLER JOINT

18375-MEN-A00

$15.93

GASKET, MUFFLER

18392-MEY-670

$13.28

NUT, SPRING (6MM)

19508-KA3-710

$5.47

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.46

BOLT (8X18)

90123-MEN-730

$1.82

BOLT (8X30)

90124-MEN-A00

$2.43

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.66

WASHER, RR. MUFFLER

90514-MEN-730

$2.76

NUT, FLANGE (8MM)

94050-08000

$0.87

WASHER, PLAIN (5MM)

94101-05000

$0.91

WASHER, PLAIN (8MM)

94103-08000

$0.60
