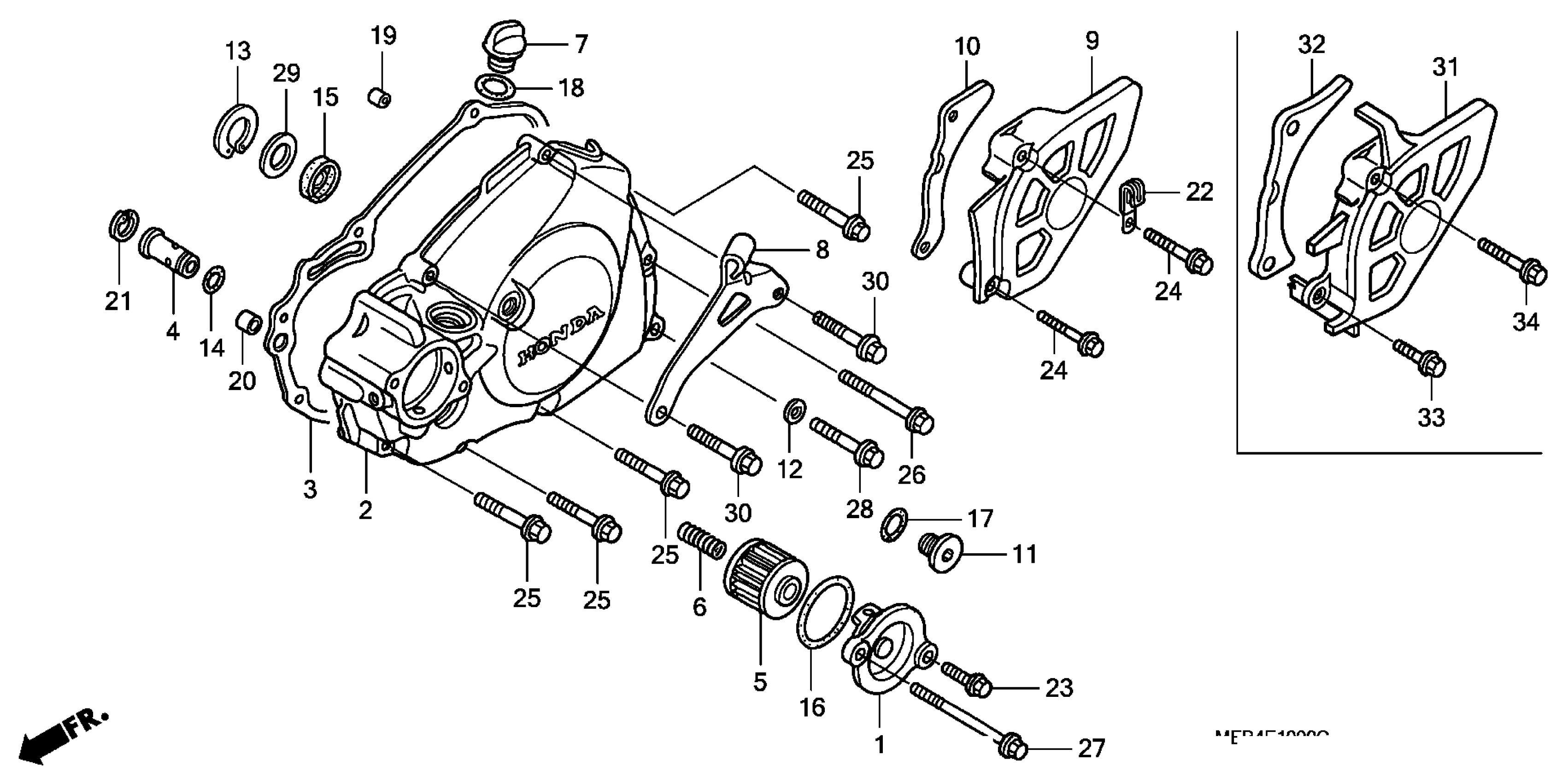

Honda CRF450RA (07) MOTORCYCLE, JPN, VIN# JH2PE053-7M500001 TO JH2PE053-7M519999 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL FILTER

11333-MEB-670

$45.22

2

COVER, L. CRANKCASE

11340-MEN-850

$220.16

3

GASKET, L. COVER

11395-MEB-670

$12.43

4

VALVE ASSY., RELIEF

15220-MEB-770

$23.77

5

FILTER, ENGINE OIL

15412-MEN-671

$7.74

6

SPRING, OIL FILTER

15414-MEB-670

$2.62

7

CAP, OIL FILLER

15611-KA4-710

$14.40

8

RECEIVER, CLUTCH CABLE

22838-MEN-730

Unavailable

9

COVER, DRIVE SPROCKET

23810-MEN-730

Unavailable

10

GUIDE, DRIVE CHAIN

23812-MEB-670

Unavailable

11

CAP (14MM)

90084-MEN-670

$11.93

12

WASHER, SEALING (8MM)

90474-333-000

$3.30

13

CIRCLIP, SPECIAL INNER (24MM)

90602-MEB-670

$3.08

14

O-RING (8.5X1.7)

90751-GK1-003

$2.70

15

OIL SEAL (10X21X5)

91204-KRN-671

$3.74

16

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

17

O-RING (13.8X2.5)

91303-377-000

$3.42

18

O-RING (18X3)

91307-035-000

$2.92

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

CIRCLIP, INNER (14MM)

94520-14000

$1.49

23

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

24

BOLT, FLANGE (6X30)

96001-06030-07

$1.80

25

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

26

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

27

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

28

BOLT, FLANGE (8X35)

90023-MEN-670

$3.24

29

WASHER, THRUST (13MM)

90451-459-770

$2.48

30

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07
