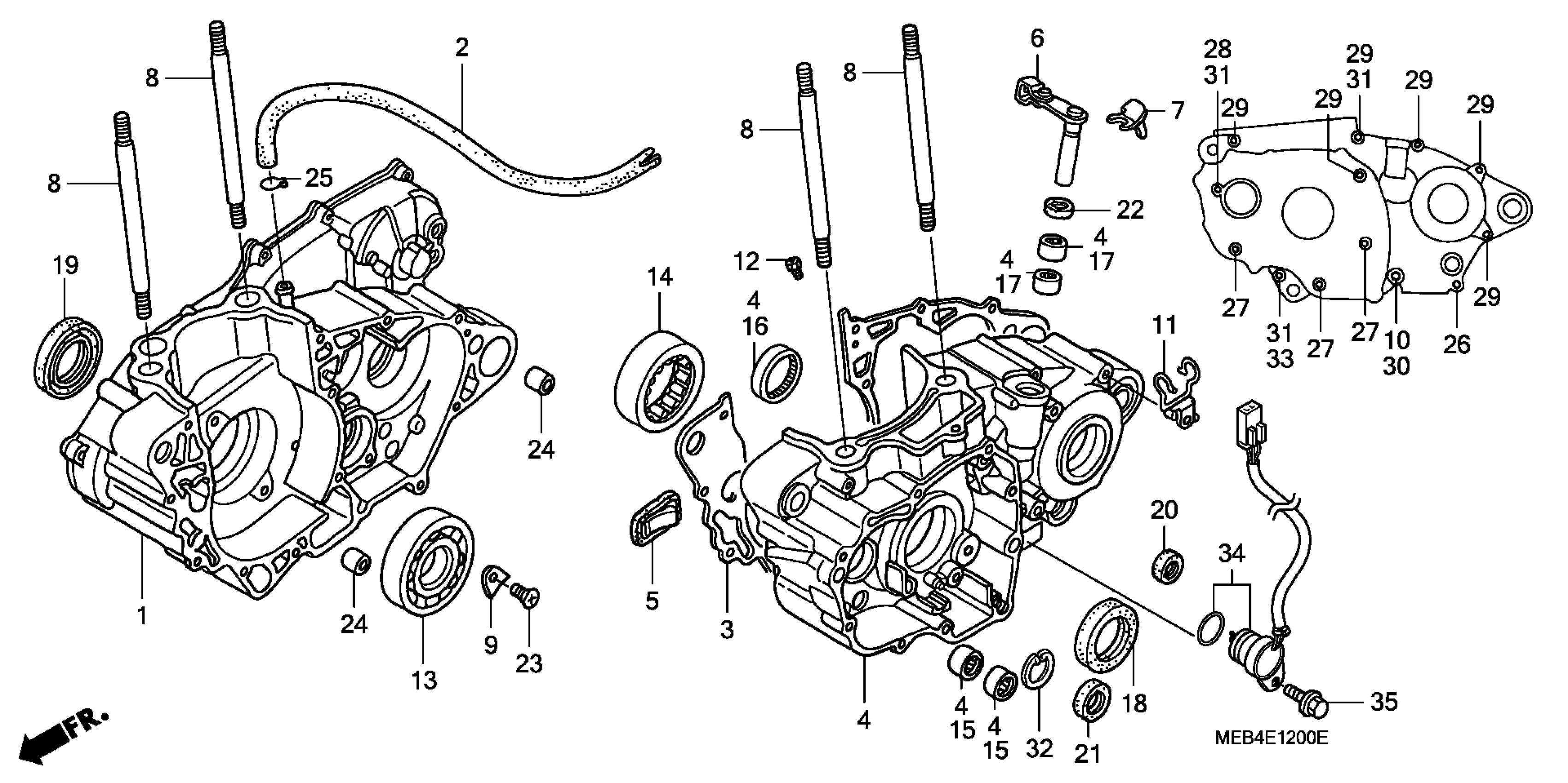

Honda CRF450RA (07) MOTORCYCLE, JPN, VIN# JH2PE053-7M500001 TO JH2PE053-7M519999 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-MEN-A00.

11100-MEN-A10

$472.06

CRANKCASE, R.

11100-MEN-A10

$472.06

TUBE, BREATHER

11105-MEB-670

$12.03

GASKET, CRANKCASE

11191-MEN-850

$16.47

CRANKCASE, L.

06110-MEN-506

Unavailable

CRANKCASE, L. This part replaces 11200-MEN-A00.

06110-MEN-506

Unavailable

CRANKCASE, L. This part replaces 11200-MEN-305.

06110-MEN-506

Unavailable

VALVE, REED

18601-MBW-003

$15.74

LEVER, CLUTCH LIFTER

22810-MEN-670

Unavailable

PLATE, CLUTCH LEVER

22813-MEB-670

$3.02

BOLT, STUD (12X148)

90031-MEB-670

$5.10

PLATE, BEARING HOLDER

90441-KRN-670

$2.80

WASHER, SEALING (8MM)

90474-333-000

$4.15

GUIDE, TUBE

90610-MEB-670

$11.88

JET, OIL (#80)

90901-MCF-000

$11.01

BEARING, SPECIAL RADIAL BALL (6306)

91001-MEB-671

$21.42

BEARING, SPECIAL ROLLER (NTN)

91002-MEY-671

$45.83

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$12.24

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.41

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$12.07

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$13.34

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

OIL SEAL (20X33X5) (ARAI)

91203-MEB-671

$4.67

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.29

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.66

PIN, DOWEL (14X20)

94301-14200

$2.80

CLIP, TUBE (B10)

95002-02100

$1.75

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

BOLT, FLANGE (6X50)

96001-06050-00

$2.54

BOLT, FLANGE (6X65)

96001-06065-00

$2.80

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

BOLT, FLANGE (8X65)

96300-08065-00

$2.21

WASHER, SEALING (6MM)

90488-425-000

$2.10

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.20

BOLT, FLANGE (6X65)

96001-06065-00

$2.80
