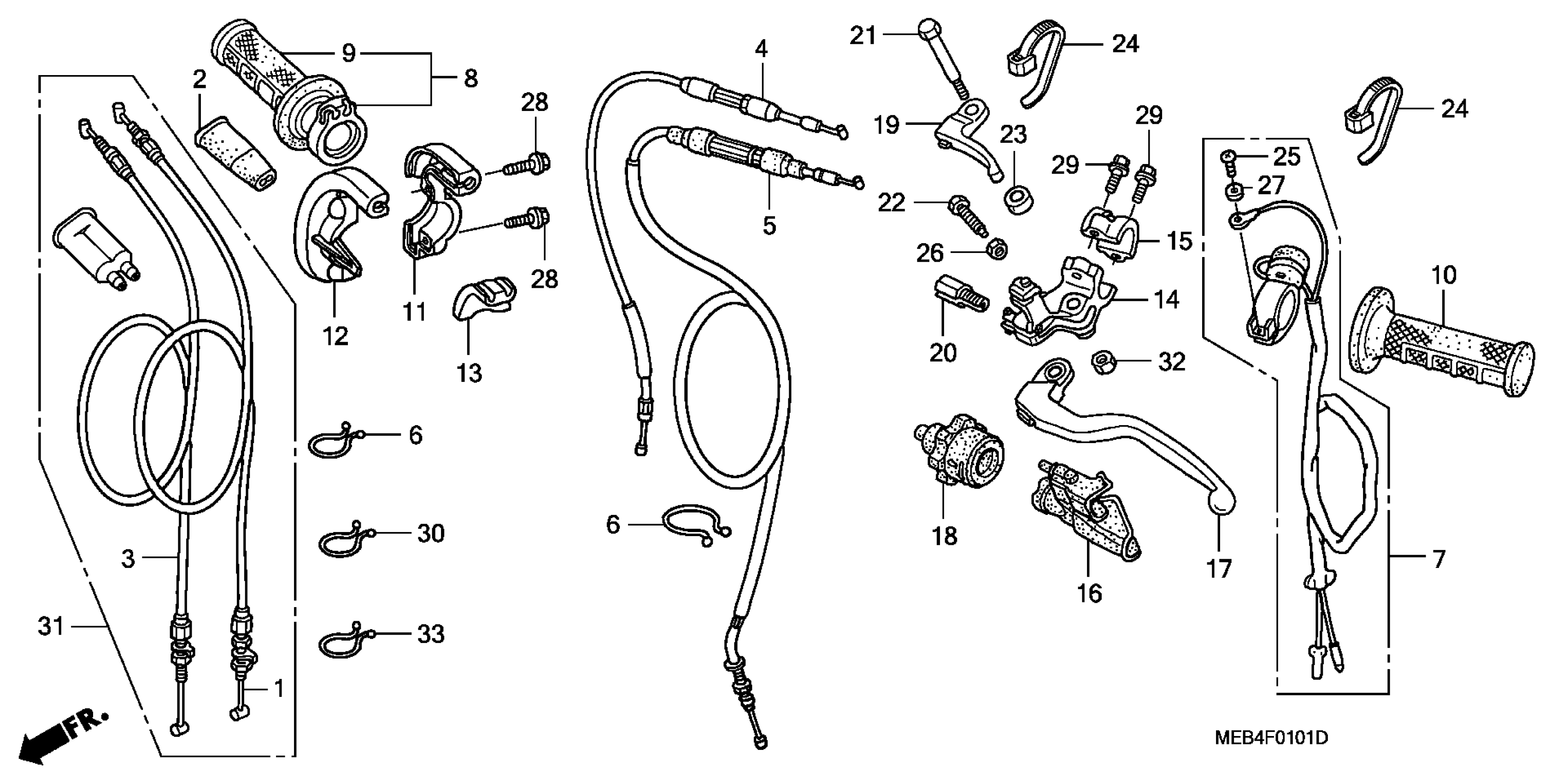

Honda CRF450RA (06) MOTORCYCLE, JPN, VIN# JH2PE053-6M400001 TO JH2PE053-6M419999 HANDLE LEVER + SWITCH + CABLE ('04-) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MEN-852

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.74

3

CABLE B, THROTTLE

17920-MEN-852

Unavailable

4

CABLE, HOT STARTER

17950-MEN-850

$27.90

5

CABLE, CLUTCH

22870-MEN-850

$28.99

6

LOCK, PURSE

32171-GF9-621

$1.97

7

SWITCH ASSY., STOP

35130-MEB-670

$28.13

8

GRIP, THROTTLE

53140-MEB-671

$24.39

9

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$9.46

9

GRIP, R. HANDLE (COO)

53165-KPT-305

$9.46

10

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$9.46

10

GRIP, L. HANDLE (COO)

53166-KPT-305

$9.46

11

HOUSING, THROTTLE (UPPER) This part replaces 53167-MEB-671.

53167-MEB-672

$19.77

11

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$19.77

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-670.

53168-KRN-A90

$27.07

12

HOUSING, THROTTLE (LOWER)

53168-KRN-A90

$27.07

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-671.

53168-KRN-A90

$27.07

13

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.13

14

BRACKET, L. HANDLE LEVER

53172-MEN-670

$29.12

15

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.36

16

COVER, L. HANDLE LEVER

53177-MEN-670

Unavailable

17

LEVER, L. HANDLEBAR

53178-MEN-670

$23.45

18

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.35

19

LEVER, HOT STARTER

53190-MEN-670

$15.57

20

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.56

21

BOLT, HANDLE LEVER PIVOT This part replaces 90113-MEN-670.

90113-MEY-A10

$4.31

21

BOLT, HANDLE LEVER PIVOT

90113-MEY-A10

$4.31

22

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.71

23

COLLAR, PIVOT

90501-MEN-670

$2.69

24

BAND, WIRE (95MM)

90650-KV6-003

$2.97

25

SCREW, PAN (4X12)

93500-04012-0A

$0.76

25

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.76

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

26

NUT, HEX. (6MM)

94001-06200-0S

$1.21

27

WASHER, SPRING (4MM)

94111-04000

$0.99

28

BOLT, FLANGE (6X20)

96001-06020-07

$1.25

29

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

30

PURSE, LOCK (18MM)

32173-MEN-850

$1.82

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

32

NUT, HEX. (6MM)

94001-06200-0S

$1.21
