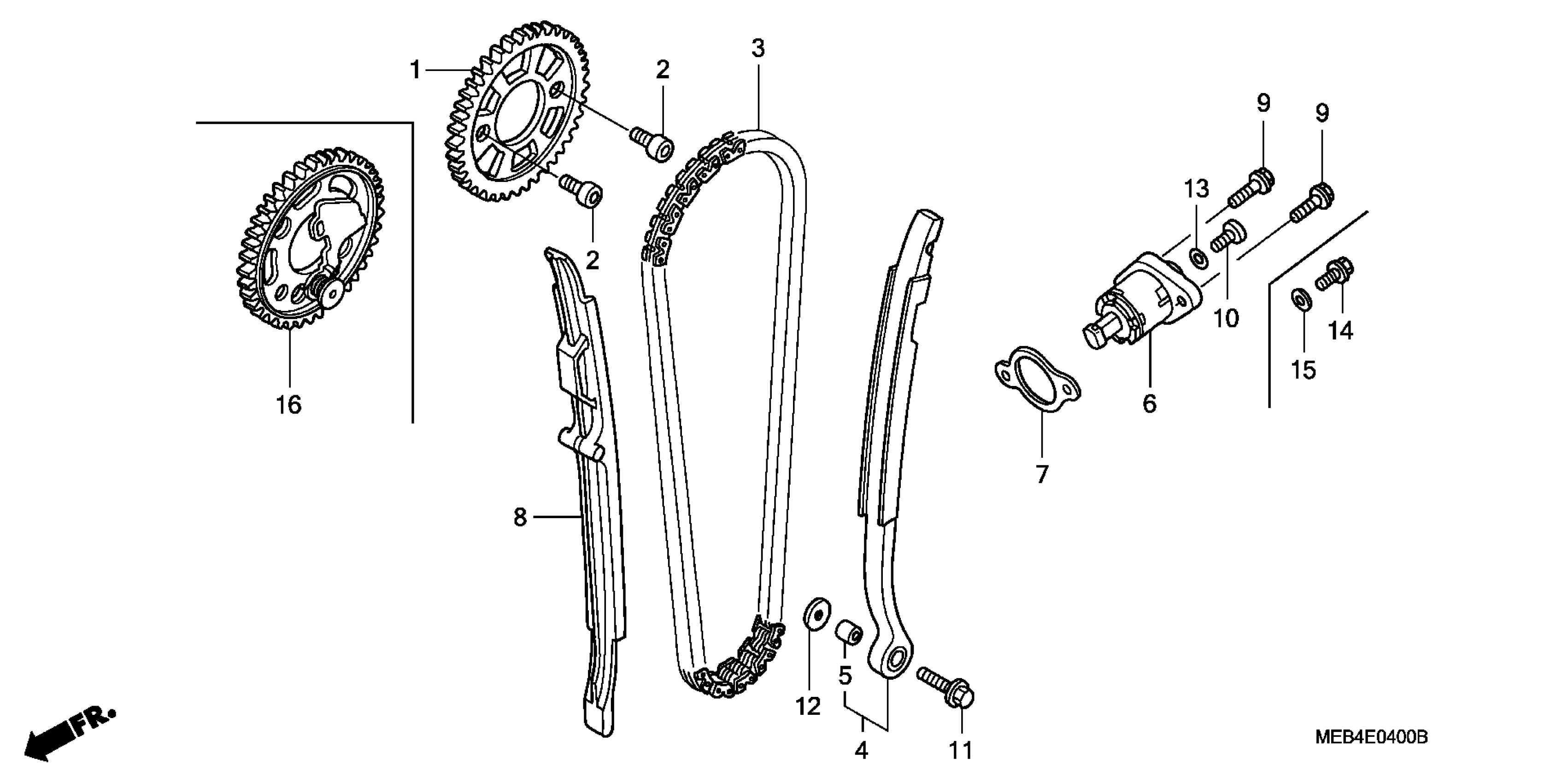

Honda CRF450RA (06) MOTORCYCLE, JPN, VIN# JH2PE053-6M400001 TO JH2PE053-6M419999 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (36T)

14321-MEB-671

$58.85

BOLT, SPECIAL KNOCK (7X10.4)

14322-MN1-670

$7.88

CHAIN, CAM (112L) (BORG WARNER)

14401-MEB-671

$60.82

TENSIONER, CAM CHAIN

14510-MEB-670

$57.44

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-MEN-671

$90.01

GASKET, TENSIONER LIFTER

14560-MEN-671

$6.01

GUIDE, CAM CHAIN

14620-MEN-671

$47.12

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X25)

90088-MEB-670

$1.49

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.87

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

WASHER, SEALING (6MM)

90442-397-000

$2.28
