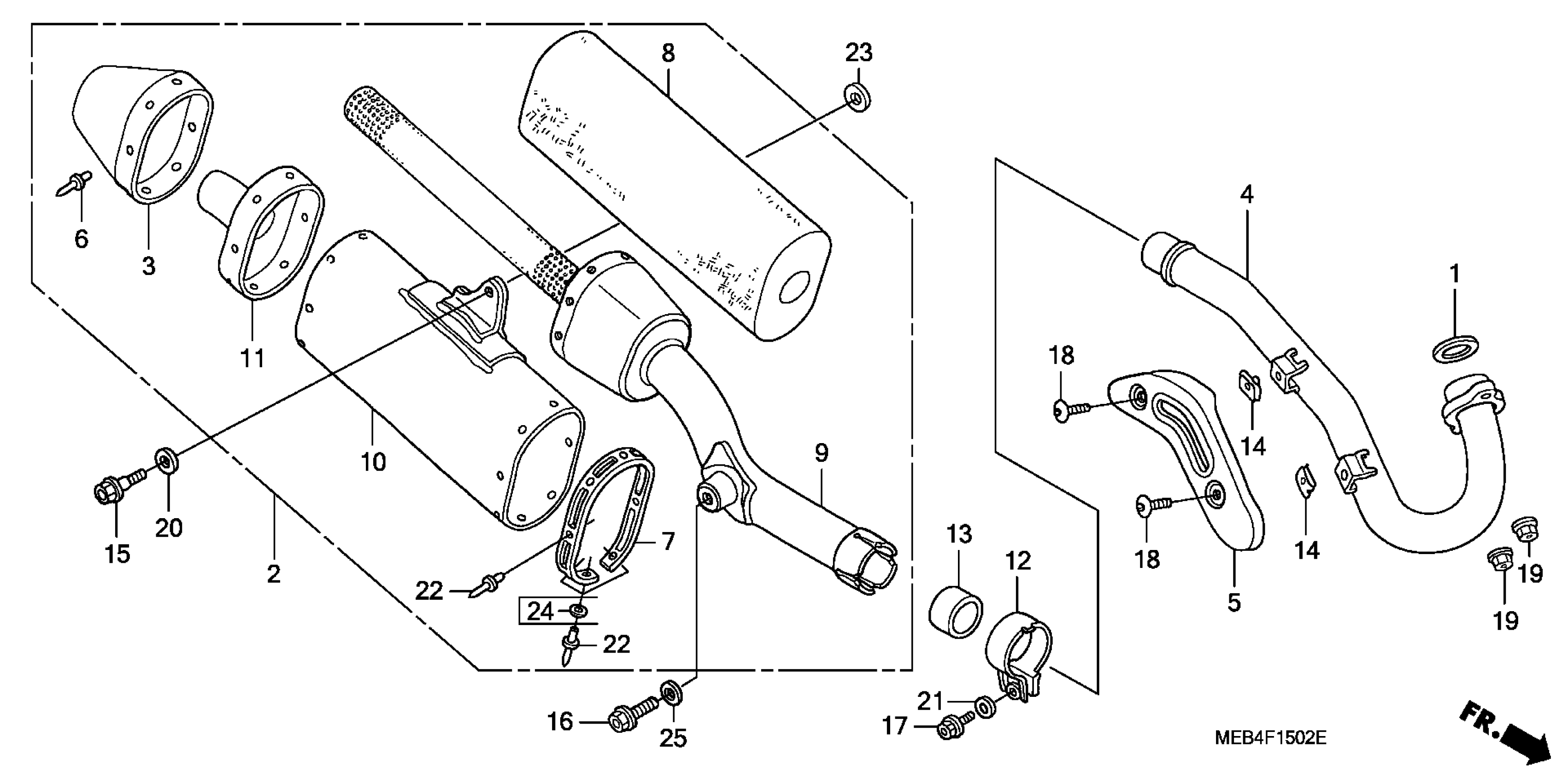

Honda CRF450RA (05) MOTORCYCLE, JPN, VIN# JH2PE053-5M300001 TO JH2PE053-5M319999 MUFFLER ('04-'05) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.92

2

MUFFLER (98DB) | Use up to Frame SN 5M303936 This part replaces 18310-MEN-730.

18310-MEN-731

Unavailable

2

MUFFLER (98DB)

18310-MEN-731

Unavailable

3

CAP, END

18338-MEN-A00

Unavailable

3

CAP, END This part replaces 18338-MEN-730.

18338-MEN-A00

Unavailable

4

PIPE, EX.

18320-MEN-730

Unavailable

5

PROTECTOR, EX. PIPE

18323-MEN-730

$60.18

6

RIVET, BLIND (4.8)

18324-MEB-670

$1.49

7

BAND, FR. MUFFLER BODY

18329-MEN-670

Unavailable

8

WOOL, GLASS

18336-MEN-670

Unavailable

9

MUFFLER, FR. (98DB)

18350-MEN-730

Unavailable

10

BODY, MUFFLER (98DB) | Use up to Frame SN 5M303936

18351-MEN-730

Unavailable

10

BODY, MUFFLER (98DB) | Use from Frame SN 5M303937

18351-MEN-731

Unavailable

11

MUFFLER, RR. (98DB)

18352-MEN-730

Unavailable

12

BAND, RR. MUFFLER

18375-MEN-670

Unavailable

13

GASKET, MUFFLER

18392-MEB-670

$14.98

14

NUT, SPRING (6MM)

19508-KA3-710

$5.72

15

BOLT, FLANGE (8X24) This part replaces 90121-KZ4-J40.

90101-KZ3-J50

$2.66

16

BOLT, FLANGE (8X22)

90125-KZ4-J40

$2.13

17

BOLT, FLANGE (8X16)

90123-MEN-670

$2.33

18

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

WASHER, PLAIN (8MM)

94103-08000

$1.49

21

WASHER, PLAIN (8MM)

94102-08800

$1.49

22

RIVET, BLIND (4.8)

18331-MJ6-003

$4.02

23

WASHER, RR. MUFFLER

90514-MEN-730

$3.00

24

WASHER, PLAIN (5MM)

94101-05000

$1.49

25

WASHER, PLAIN (8MM)

90505-KY4-900

$1.49
