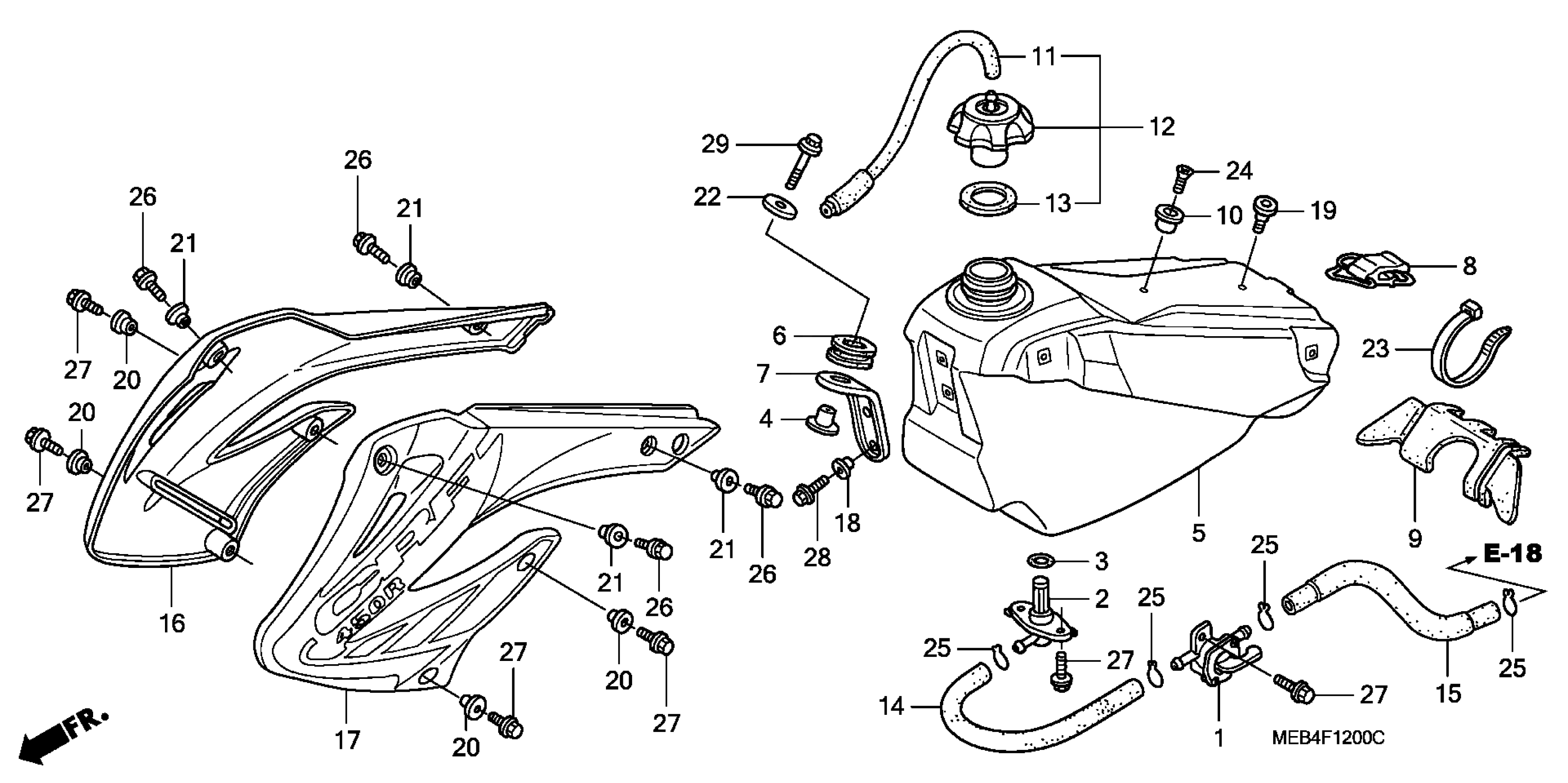

Honda CRF450RA (04) MOTORCYCLE, JPN, VIN# JH2PE053-4M200001 TO JH2PE053-4M249999 FUEL TANK ('02-'04) Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-MEB-671.

16950-MEN-731

$36.27

1

PETCOCK ASSY.

16950-MEN-731

$36.27

2

JOINT ASSY., FUEL

16955-MEB-671

$11.93

3

O-RING (11.8X3.55)

16997-467-000

$2.11

4

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

5

TANK, FUEL

17510-MEN-670

Unavailable

6

RUBBER, FR. TANK MOUNTING

17514-MEB-670

Unavailable

7

STAY, FR. TANK

17515-MEB-670

Unavailable

8

BAND, RR. TANK

17516-MEB-670

Unavailable

9

RUBBER, TANK MOUNTING

17517-MEN-670

Unavailable

10

COLLAR, FR. SEAT

17518-KS6-700

$6.87

11

TUBE, FUEL CAP BREATHER

17521-KZ4-J20

$4.83

12

CAP ASSY., FUEL TANK

17620-MEB-670

$91.13

13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

14

TUBE A, FUEL

17681-MEB-670

$3.13

15

TUBE B, FUEL

17682-MEN-670

Unavailable

16

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-MEN-670ZA

Unavailable

17

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-MEN-670ZA

Unavailable

18

COLLAR

84706-415-000

$2.23

19

SCREW, PAN (6X14)

90113-MM5-000

$3.10

20

COLLAR A

90501-KZ4-J20

$3.67

21

COLLAR, MIDDLE COVER

90504-KBP-900

$1.49

22

WASHER, FENDER MOUNTING

90506-430-000

$2.92

23

TY-RAP, CABLE

91560-MS8-600

$2.38

24

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

25

CLIP, TUBE (B12)

95002-02120

$2.00

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

28

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

29

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
