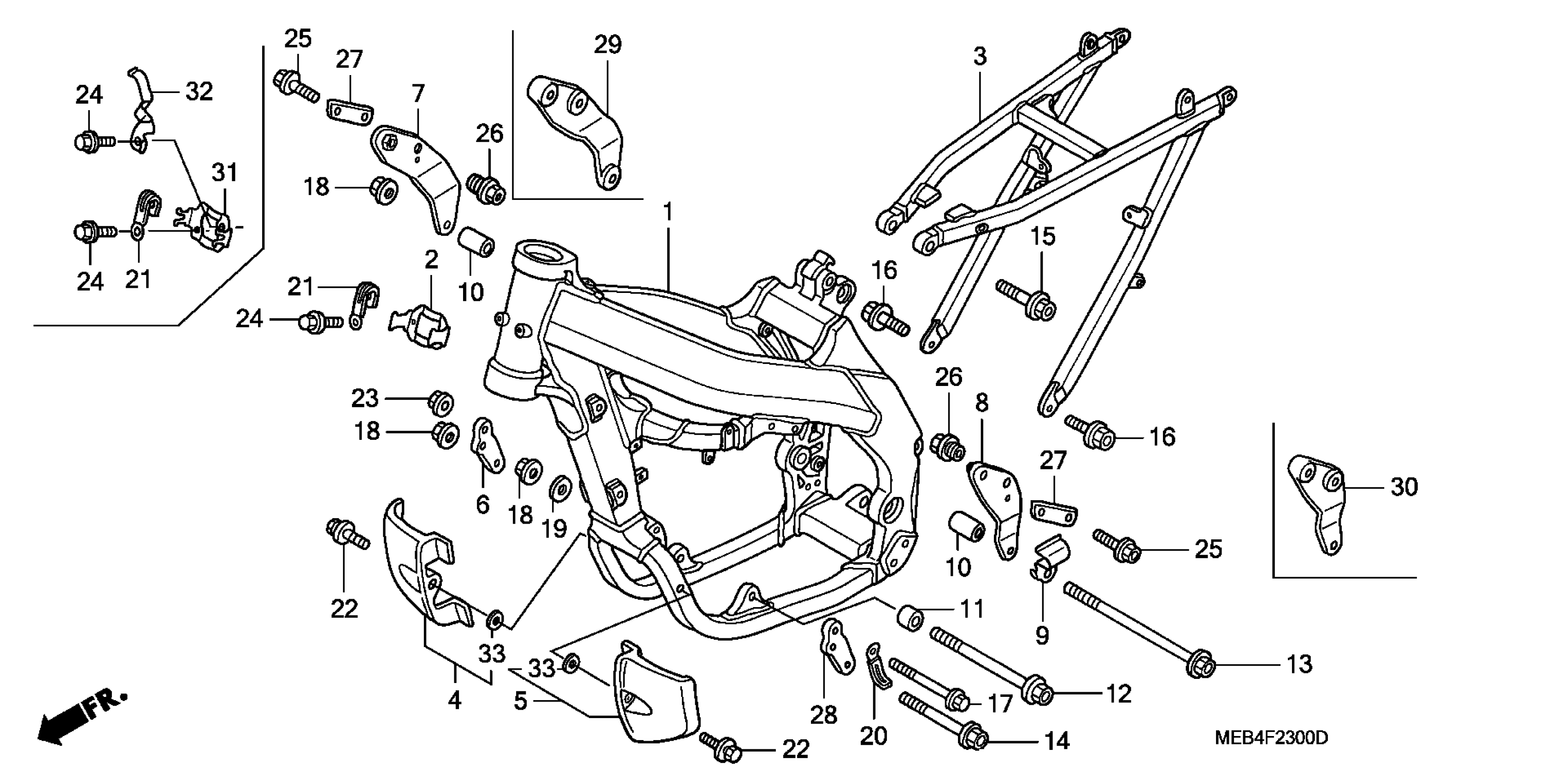

Honda CRF450RA (04) MOTORCYCLE, JPN, VIN# JH2PE053-4M200001 TO JH2PE053-4M249999 FRAME ('02-'04) Diagram

#

Description
Price

1

FRAME

50100-MEN-671

$2,621.54

3

FRAME, RR.

50200-MEN-670

Unavailable

4

GUARD, R. ENGINE

50355-MEB-670

Unavailable

4

GUARD, R. ENGINE This part replaces 50355-MEN-670.

50355-MEB-670

Unavailable

5

GUARD, L. ENGINE

50360-MEB-670

Unavailable

5

GUARD, L. ENGINE This part replaces 50360-MEN-670.

50360-MEB-670

Unavailable

6

HANGER, R. FR. ENGINE

50403-MEB-770

Unavailable

9

GUIDE, FUEL TUBE

50410-MEN-670

$8.48

10

SPACER, HEAD HANGER

50990-MEB-770

Unavailable

12

BOLT, FLANGE (10X132)

90101-MEN-670

$5.10

13

BOLT, FLANGE (10X172)

90102-MEN-670

Unavailable

14

BOLT, FLANGE (10X118)

90104-MEN-670

Unavailable

15

BOLT, FLANGE (8X70)

90120-KZ4-J40

$4.40

16

BOLT (10X24)

90122-MEN-670

$2.92

17

BOLT, FLANGE (8X118)

90103-MEN-670

$6.48

18

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.72

19

WASHER (10MM)

90410-HC4-000

$3.81

20

CLIP, WIRE HARNESS

91404-VM6-000

$6.25

21

CLIP, WIRE

91406-166-000

$3.83

22

BOLT-WASHER (6X20)

93404-06020-00

$1.55

23

NUT, FLANGE (8MM)

94050-08000

$1.49

24

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

25

BOLT, FLANGE (8X18)

90103-MEB-670

$1.95

28

HANGER, L. FR. ENGINE

50404-MEB-770

Unavailable

29

PLATE, R. HEAD HANGER

50407-MEN-670

Unavailable

30

PLATE, L. HEAD HANGER

50408-MEN-670

Unavailable

31

BRACKET, IGNITION CONTROL MODULE (CDI)

50124-MEN-670

Unavailable

32

GUIDE, HARNESS

50128-MEN-670

Unavailable

33

COLLAR (6.5X11X3)

50618-KE8-000

$2.75
