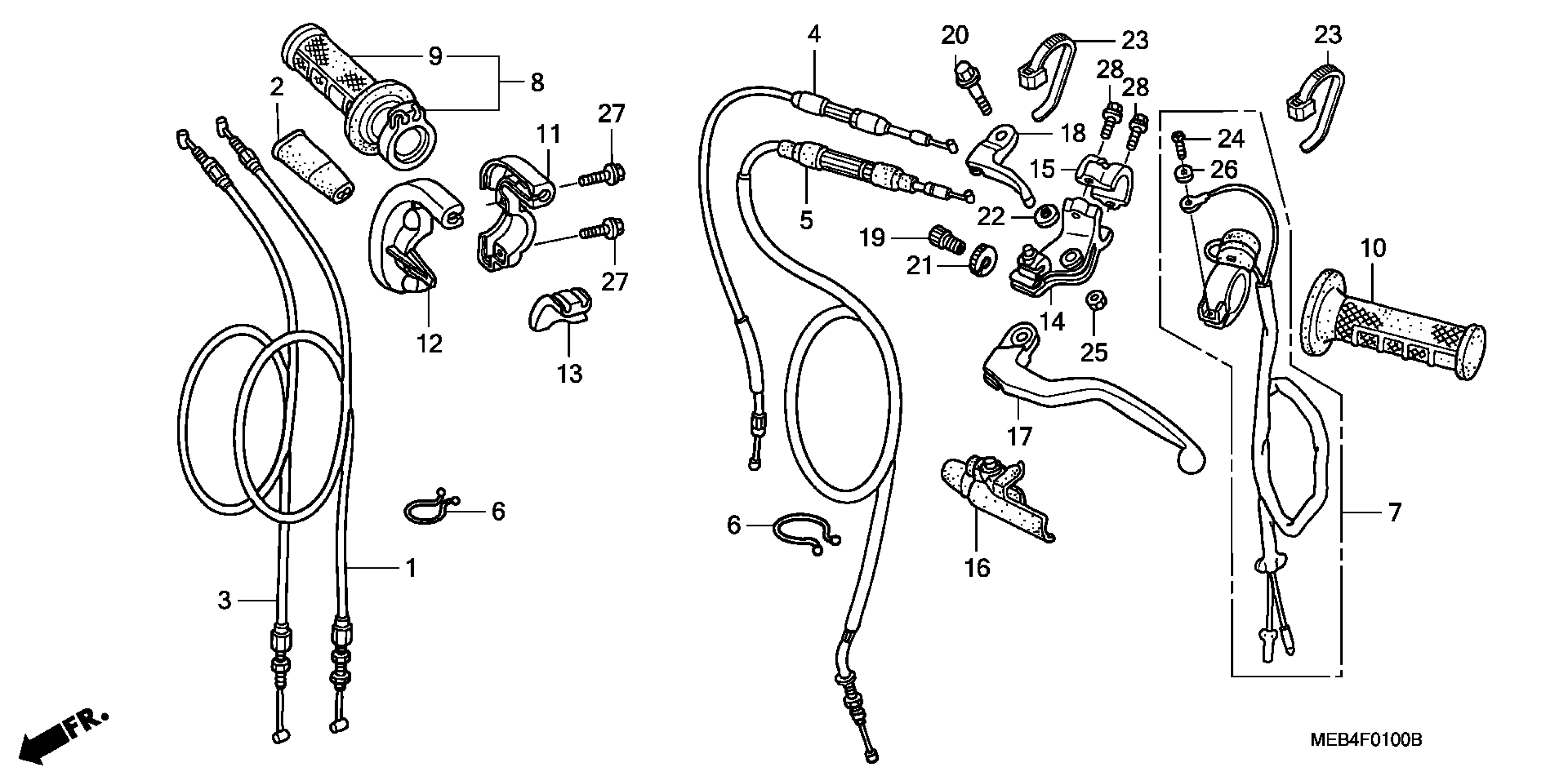

Honda CRF450RA (03) MOTORCYCLE, JPN, VIN# JH2PE053-3M100001 TO JH2PE053-3M199999 HANDLE LEVER + SWITCH + CABLE ('02-'03) Diagram

#

Description
Price

NI

LEVER KIT, DECOMPRESSION (OPTIONAL EQUIPMENT) (NOT AVAILABLE)

06502-MEB-810

Unavailable

1

CABLE A, THROTTLE

17910-MEB-670

$25.75

2

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

3

CABLE B, THROTTLE

17920-MEB-670

Unavailable

4

CABLE, HOT STARTER

17950-MEB-670

Unavailable

5

CABLE, CLUTCH

22870-MEB-670

Unavailable

6

LOCK, PURSE

32171-GF9-621

$2.13

7

SWITCH ASSY., STOP

35130-MEB-670

$30.65

8

GRIP, THROTTLE This part replaces 53140-MEB-670.

53140-MEB-671

$26.57

8

GRIP, THROTTLE

53140-MEB-671

$26.57

9

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

9

GRIP, R. HANDLE (COO)

53165-KPT-305

$10.28

10

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

10

GRIP, L. HANDLE (COO)

53166-KPT-305

$10.28

11

HOUSING, THROTTLE (UPPER) This part replaces 53167-MEB-671.

53167-MEB-672

$21.52

11

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$21.52

12

HOUSING, THROTTLE (LOWER)

53168-KRN-A90

$29.49

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-670.

53168-KRN-A90

$29.49

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-671.

53168-KRN-A90

$29.49

13

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.33

14

BRACKET, L. HANDLE LEVER

53172-MEB-670

$31.47

15

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

16

COVER, L. HANDLE LEVER

53177-MEB-670

$13.43

17

LEVER, L. HANDLEBAR This part replaces 53178-KSE-305.

53178-MAC-740

$19.97

17

LEVER, L. HANDLEBAR

53178-MAC-740

$19.97

18

LEVER, HOT STARTER

53190-MEB-670

$20.24

19

BOLT, CLUTCH WIRE ADJUSTING

53192-KA3-700

$14.07

20

BOLT, LEVER PIVOT (NSHF)

90112-MEB-670

$3.08

21

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

21

NUT, FIXING

90321-KF0-000

$9.76

22

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87

23

BAND, WIRE (95MM)

90650-KV6-003

$3.12

24

SCREW, PAN (4X12)

93500-04012-0A

$1.49

24

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49

27

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
