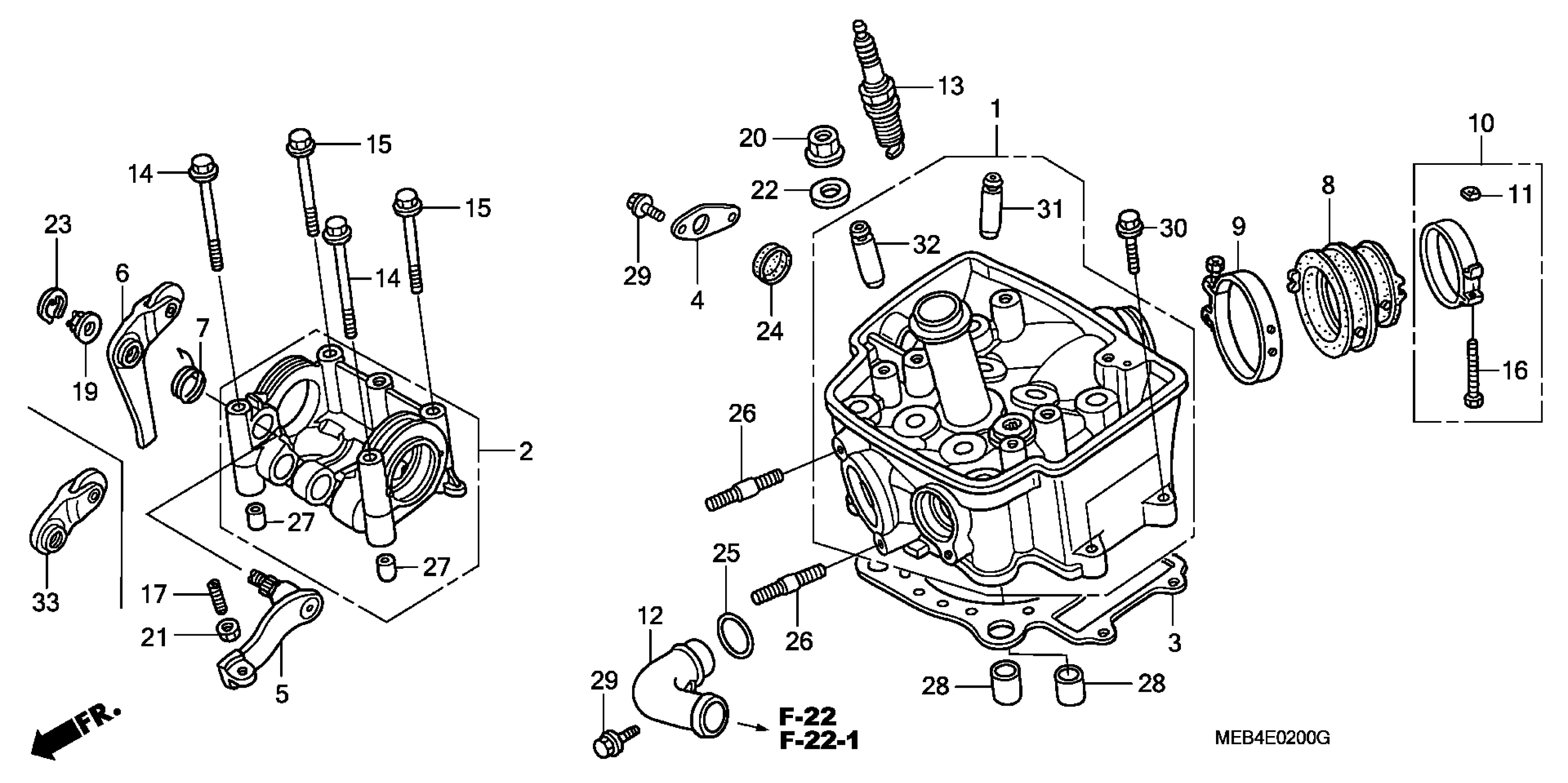

Honda CRF450RA (03) MOTORCYCLE, JPN, VIN# JH2PE053-3M100001 TO JH2PE053-3M199999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-MEB-770

Unavailable

HOLDER, CAMSHAFT This part replaces 12240-MEB-770.

12240-MEB-771

$122.39

HOLDER, CAMSHAFT

12240-MEB-771

$122.39

GASKET, CYLINDER HEAD

12251-MEB-671

$31.26

PLATE, HEAD SIDE

12328-MEB-670

Unavailable

ARM, DECOMPRESSION LIFTER

14120-MEB-770

$141.12

SLIPPER, DECOMPRESSION

14130-MEB-671

Unavailable

SPRING, DECOMPRESSION ARM

14133-MEB-670

$1.39

INSULATOR, CARBURETOR

16210-MEB-670

$12.58

BAND, INSULATOR

16218-MCA-000

$6.78

BAND B, INSULATOR

16218-MCJ-000

$7.86

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

PIPE, WATER

19523-MEB-670

Unavailable

SPARK PLUG (IFR8H11) (NGK)

31918-MEB-671

$16.03

SPARK PLUG (VK24PRZ11) (DENSO)

31918-MEB-672

$14.23

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional). This part replaces 31919-MEB-671.

31919-MEB-672

$14.23

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional).

31919-MEB-672

$14.23

BOLT, FLANGE (6X72)

90003-MEB-770

Unavailable

BOLT, FLANGE (6X65)

90002-MEB-770

$3.10

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.38

SCREW, TAPPET ADJUSTING

90012-MEB-670

$2.42

NUT, SPECIAL (8MM)

90201-MEB-670

$10.26

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

NUT, FLANGE (10MM)

94050-10000

$1.41

NUT, TAPPET ADJUSTING

90206-KM3-000

$1.23

WASHER, PLAIN (10MM)

90453-KCY-670

$3.86

CIRCLIP, SPECIAL (12MM)

90603-MEB-670

$2.61

CAP, SEAL (20MM)

91206-MEB-671

$4.87

O-RING (19X3) (NOK)

91312-KE7-003

$2.38

BOLT, STUD (8X22)

92900-08022-0B

$1.94

PIN, DOWEL (8X10)

94301-08100

$2.04

PIN, DOWEL (14X20)

94301-14200

$2.25

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

GUIDE, VALVE (OVER SIZE)

12204-MEB-P00

$15.23

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$14.23
