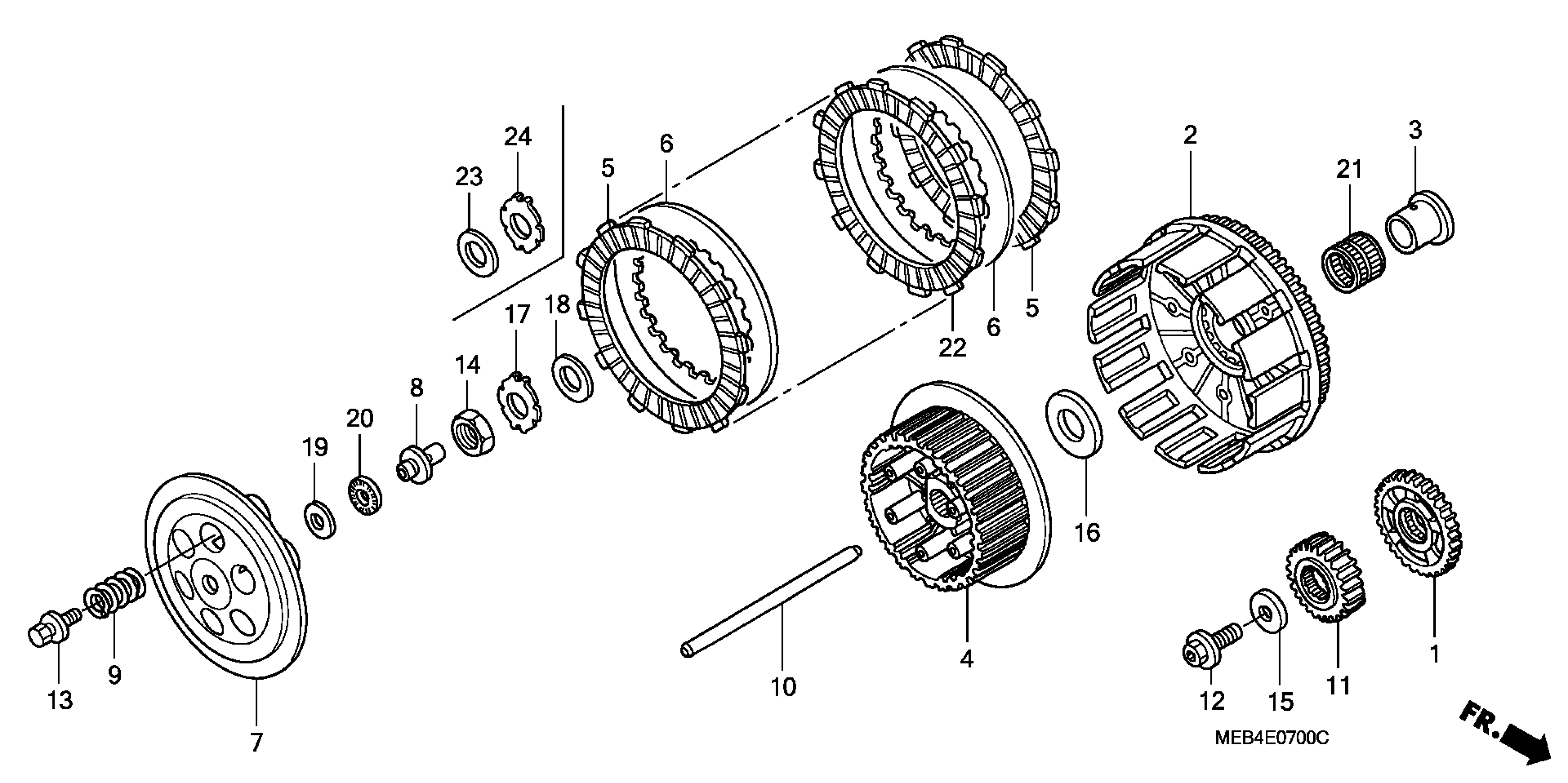

Honda CRF450RA (03) MOTORCYCLE, JPN, VIN# JH2PE053-3M100001 TO JH2PE053-3M199999 CLUTCH Diagram

#

Description
Price

NI

CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET) | (Optional).

06001-MEN-000

$256.03

NI

CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET) | (Optional).

06001-MEN-001

$266.10

1

GEAR, BALANCER DRIVE (40T) This part replaces 13415-MEB-670.

13415-MEN-A10

Unavailable

1

GEAR, BALANCER DRIVE (40T)

13415-MEN-A10

Unavailable

2

CLUTCH OUTER

22100-MEB-770

Unavailable

3

COLLAR, CLUTCH (OUTER)

22106-KS7-000

$26.35

4

CENTER, CLUTCH This part replaces 22120-KZ3-B11.

22120-MEN-A00

$120.55

4

CENTER, CLUTCH

22120-MEN-A00

$120.55

4

CENTER, CLUTCH This part replaces 22120-KZ3-B10.

22120-MEN-A00

$120.55

5

DISK, CLUTCH FRICTION

22201-MEB-670

$17.07

6

PLATE B, CLUTCH

22321-KZ3-690

$16.11

7

PLATE, CLUTCH PRESSURE

22351-KZ3-860

$78.39

8

PIECE, CLUTCH LIFTER

22352-KAE-770

$32.47

9

SPRING, CLUTCH (PINK)

22401-KZ3-690

$5.05

10

ROD, CLUTCH LIFTER

22851-KZ3-J20

$20.74

11

GEAR, PRIMARY DRIVE (23T)

23121-MEB-770

Unavailable

12

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.98

13

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

14

NUT (18MM)

90235-KA4-000

$11.09

15

WASHER, PLAIN (12MM)

90402-KW6-960

$5.55

16

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

17

WASHER, LOCK (18MM)

90461-KZ3-J10

$6.23

18

WASHER (18X32X2)

90501-ML3-910

$4.37

19

WASHER (12MM)

90608-072-000

$3.80

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

21

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$17.87

22

DISK, CLUTCH FRICTION

22201-MEB-670

$17.07
