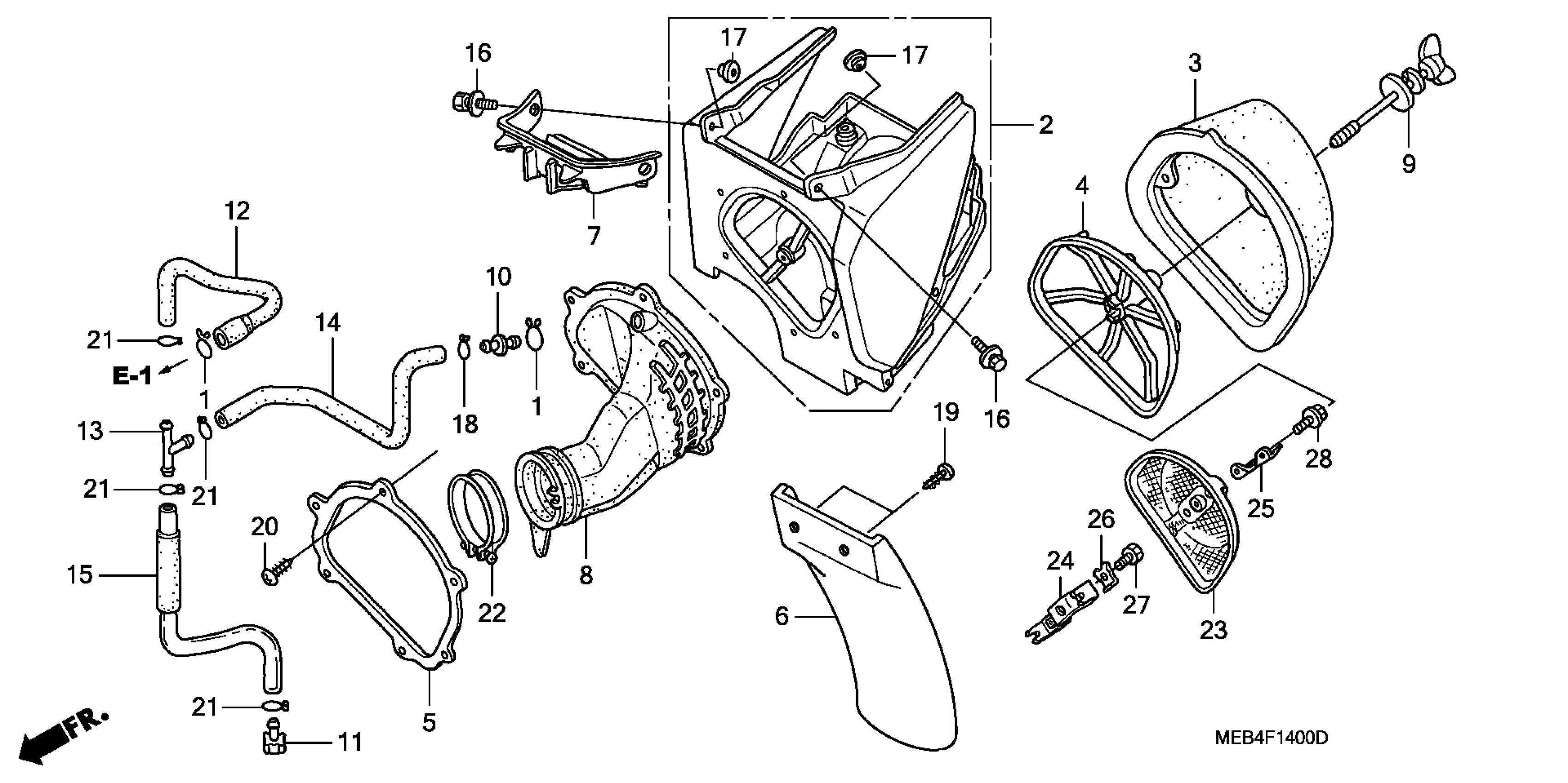

Honda CRF450RA (02) MOTORCYCLE, JPN, VIN# JH2PE053-2M000001 TO JH2PE053-2M099999 AIR CLEANER ('02) Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

HOUSING, AIR CLEANER

17210-MEB-670

Unavailable

3

ELEMENT, AIR CLEANER

17213-MEB-670

Unavailable

4

BASE, ELEMENT

17205-MEB-305

Unavailable

4

BASE, ELEMENT This part replaces 17215-MEB-671.

17205-MEB-305

Unavailable

5

PLATE, FR. AIR CLEANER HOUSING (NOT AVAILABLE)

17217-MEB-670

Unavailable

6

SPLASH GUARD, AIR CLEANER HOUSING

17218-KZ3-860

$26.55

7

VISOR, AIR CLEANER HOUSING

17223-MEB-670

Unavailable

8

TUBE, AIR CLEANER CONNECTING

17253-MEB-670

Unavailable

9

BOLT, AIR CLEANER ELEMENT SETTING

17291-MEB-670

$6.40

10

JOINT, BREATHER TUBE

17359-MAG-L00

$5.26

11

PLUG, BREATHER TUBE

17370-419-700

$3.74

12

TUBE A, BREATHER

17372-MEB-670

Unavailable

13

JOINT, BREATHER THREE WAY

17373-KC1-J10

$9.26

14

TUBE B, BREATHER

17374-MEB-670

Unavailable

15

TUBE C, BREATHER

17375-MEB-670

$6.31

16

BOLT-WASHER (6X16)

90102-KS6-000

$9.16

17

WASHER, RR. COVER

90506-425-000

$2.89

18

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.62

19

SCREW, TAPPING (5X20)

93913-15510

$1.49

20

SCREW, TAPPING (5X10) (PO)

93913-25180

$1.49

21

CLIP, TUBE (B12)

95002-02120

$2.00

22

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60251

$6.69

23

STAY, AIR CLEANER ELEMENT

17205-MEB-305

Unavailable

23

BASE, ELEMENT This part replaces 17212-MEB-670.

17205-MEB-305

Unavailable

24

STAY SET, AIR CLEANER (NA USE ALT:17205-MEB-305)

17214-MEB-670

Unavailable

25

WASHER, SPECIAL (6MM)

90405-MEB-670

Unavailable

26

WASHER, LOCK (6MM)

90406-MEB-670

Unavailable

27

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
