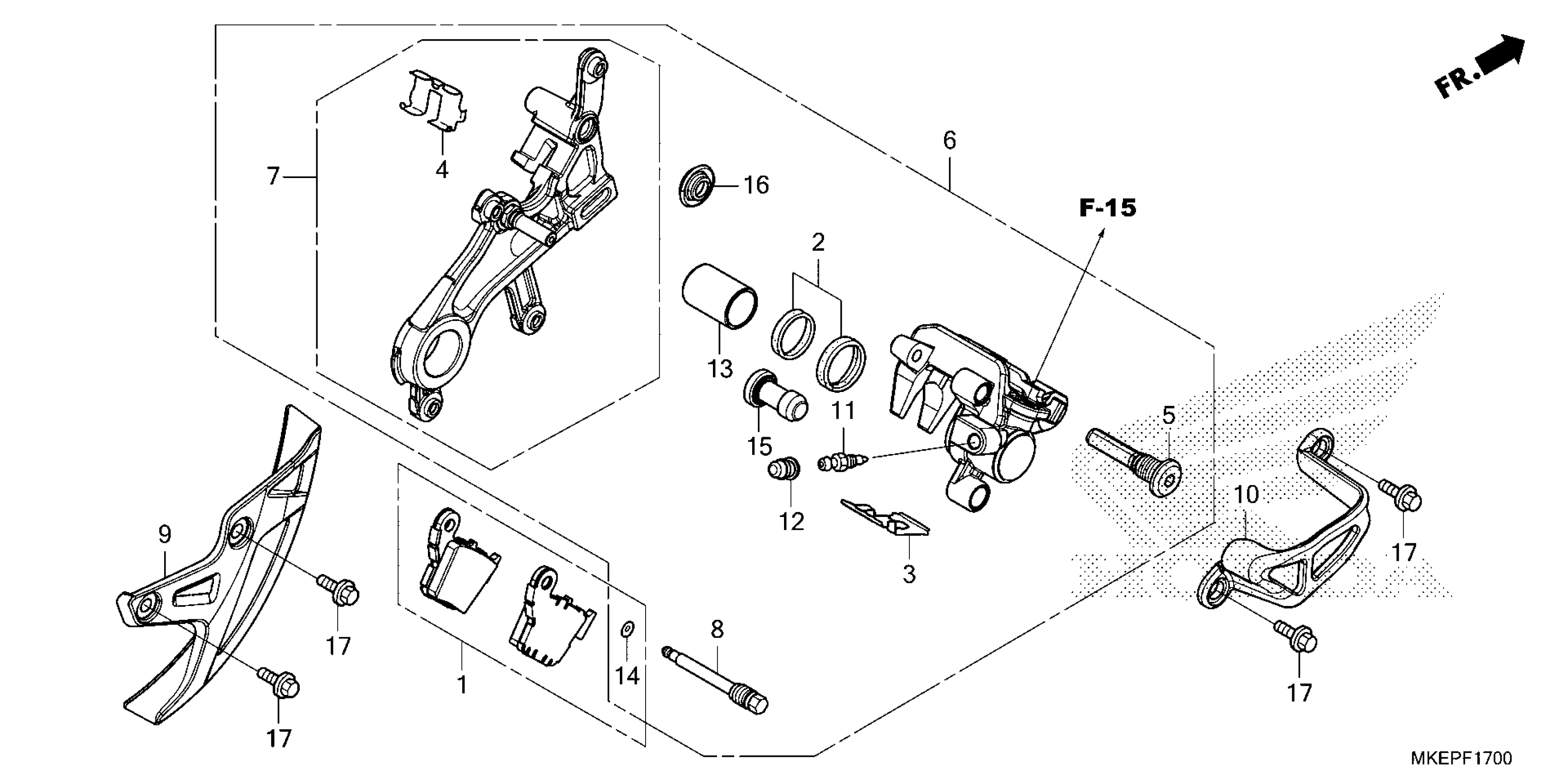

Honda CRF450R2AC (24) MOTORCYCLE, JPN, VIN# JH2PE07C-RK400001 TO JH2PE07C-RK499999 REAR BRAKE CALIPER Diagram

PAD SET, RR. | (Optional).

06435-KRN-712

$40.12

PAD SET, RR.

06435-MKE-AA1

$62.51

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

SPRING, PAD

43108-KZ4-J41

$3.77

RETAINER, BRACKET

43112-KZ4-J41

$4.24

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. (MSDS)

43150-MKE-A01

$255.23

BRACKET SUB-ASSY., RR.

43190-MKE-A01

$172.20

PIN, HANGER

43215-KZ4-J41

$5.25

COVER, RR. DISK | (Optional).

43330-MKE-AA0

$22.98

GUARD, RR. CALIPER (LIMITED EDITION)

43340-MEN-A20

$18.95

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (22 A)

45107-MCT-006

$29.49

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X10)

90026-GHB-610

$2.23
