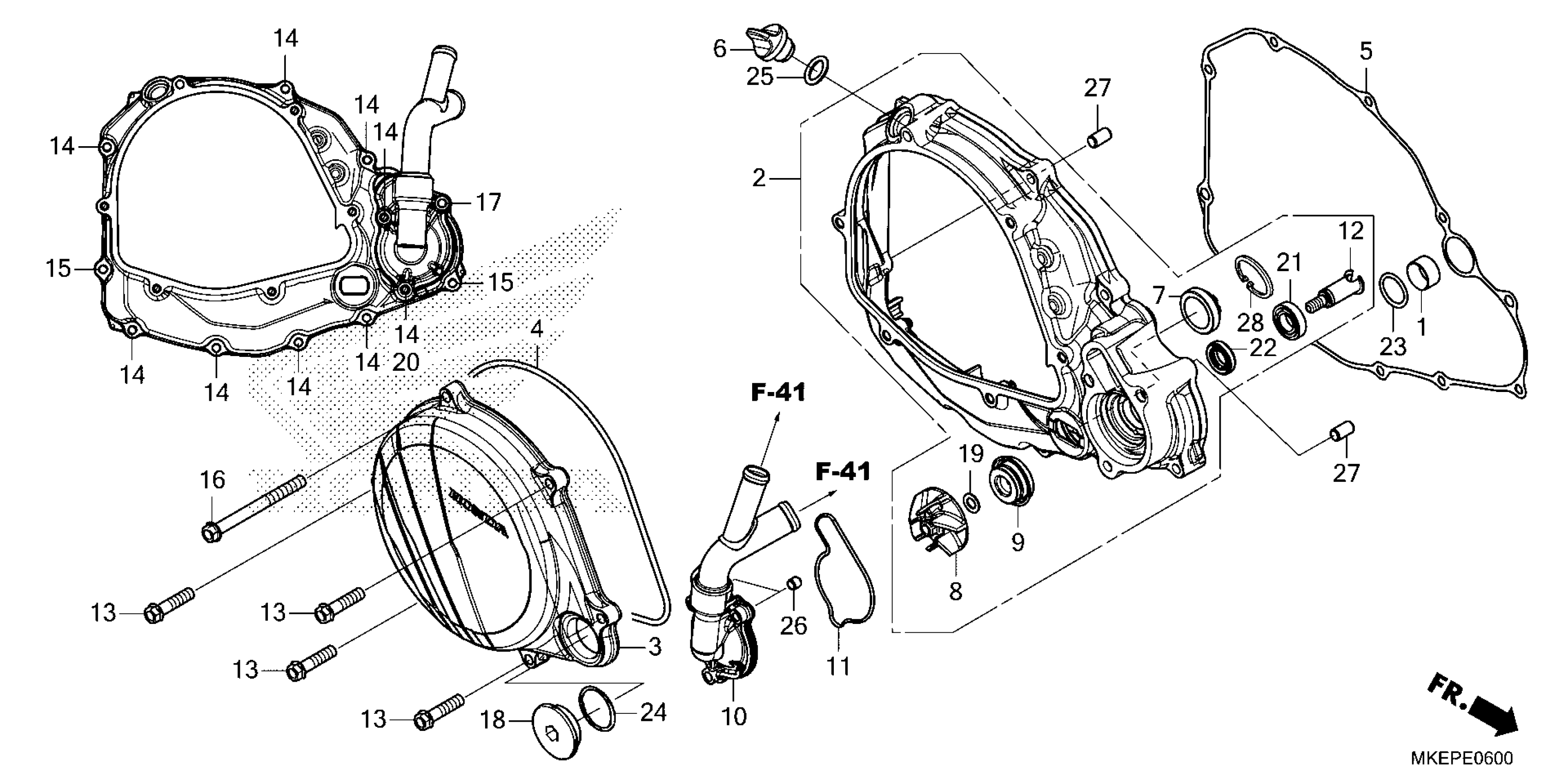

Honda CRF450R2AC (23) MOTORCYCLE, JPN, VIN# JH2PE07C-PK300001 TO JH2PE07C-PK399999 RIGHT CRANKCASE COVER @WATER PUMP Diagram

COLLAR, WATER PASS

11102-MKE-A00

$4.46

COVER ASSY., R. CRANKCASE

11330-MKE-AF0

$290.12

COVER, CLUTCH

11351-MKE-AF0

$143.82

GASKET, CLUTCH COVER

11352-MKE-A70

$12.33

GASKET, R. COVER

11394-MKE-A71

$31.58

CAP, OIL FILLER

15611-K95-A20

$16.26

FINDER, OIL LEVEL

15661-MAS-003

Unavailable

IMPELLER, WATER PUMP

19215-MEN-850

$42.58

SEAL, MECHANICAL

19217-KRN-A61

$46.40

COVER, WATER PUMP

19220-MKE-AF0

$110.23

GASKET, WATER PUMP

19226-MKE-A00

$5.12

SHAFT, WATER PUMP

19241-MKE-A00

$60.22

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

BOLT, FLANGE (6X35)

90020-GHB-720

$2.48

BOLT, FLANGE (6X65)

90020-GHB-790

$3.05

BOLT, FLANGE (6X75)

90020-GHB-810

$3.21

CAP (30MM)

90087-HB5-000

$16.69

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, BALL (12X24X6)

91002-MEN-A31

$8.83

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

O-RING (2.4X19)

91302-MKE-A70

$1.92

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

D-RING (14X3)

91307-KRN-A41

$2.92

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CIRCLIP (INNER) (32MM)

94520-32000

$1.69
