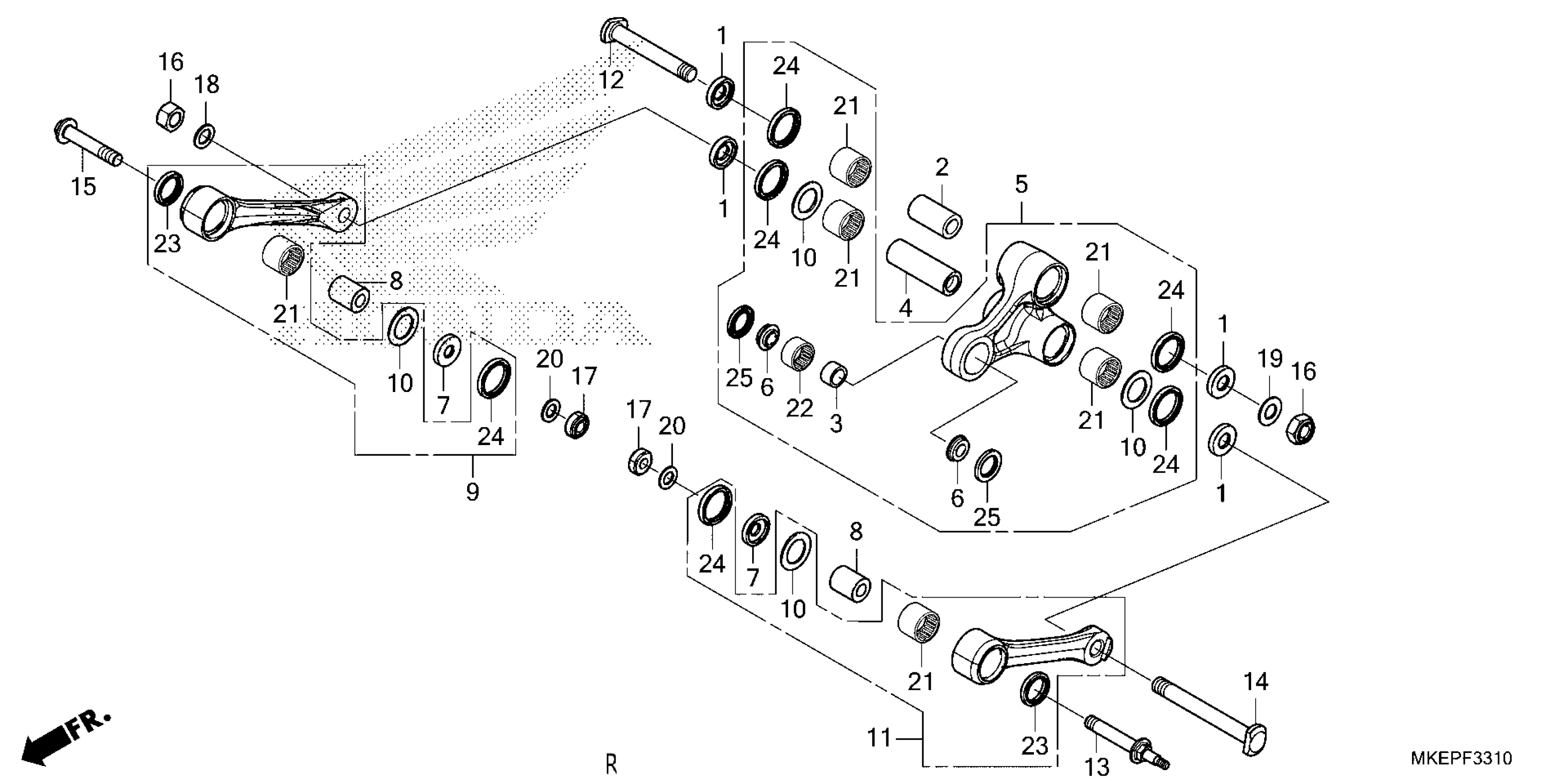

Honda CRF450R2AC (23) MOTORCYCLE, JPN, VIN# JH2PE07C-PK300001 TO JH2PE07C-PK399999 CUSHION ARM Diagram

COLLAR, LINK SIDE

52462-MKE-A60

$10.87

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.71

COLLAR D, CUSHION ARM

52464-KRN-710

$10.24

COLLAR B, CUSHION

52464-MKE-A00

$11.89

ARM SUB-ASSY., CUSHION

52465-MKE-AF0

$317.82

COLLAR D, CUSHION ARM SIDE

52466-KRN-710

$3.89

COLLAR, CONNECTING ROD SIDE

52472-MKE-A60

$10.87

COLLAR A, CONNECTING ROD

52473-MKE-A00

$9.36

ROD SUB-ASSY., R. CUSHION CONNECTING

52475-MKE-AF0

$110.31

WASHER, THRUST

52476-KZ4-J20

$5.19

ROD SUB-ASSY., L. CUSHION CONNECTING

52485-MKE-AF0

$110.31

BOLT, LINK (12X82)

90130-MEN-840

$9.71

BOLT, LINK A (10X54.5) (L)

90131-MKE-A00

$7.08

BOLT, LINK B (12X103.5)

90132-MKE-A00

$11.16

BOLT, LINK A (10X54.5) (R)

90133-MKE-A00

$4.97

NUT, U (12MM)

90305-KRN-A30

$4.45

NUT, U (10MM)

90306-KZ4-711

$3.74

WASHER, PLAIN (12MM)

90501-KRN-710

$3.95

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

WASHER (10MM)

90502-MKE-A00

$3.97

BEARING, NEEDLE (20X26X15)

91051-KSC-003

$8.78

BEARING, NEEDLE (19X26X13)

91074-KRN-711

$8.50

DUST SEAL (20X27X4)

91254-MKE-A01

$4.85

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

DUST SEAL (17.5X26X3)

91351-KRN-711

$2.92
