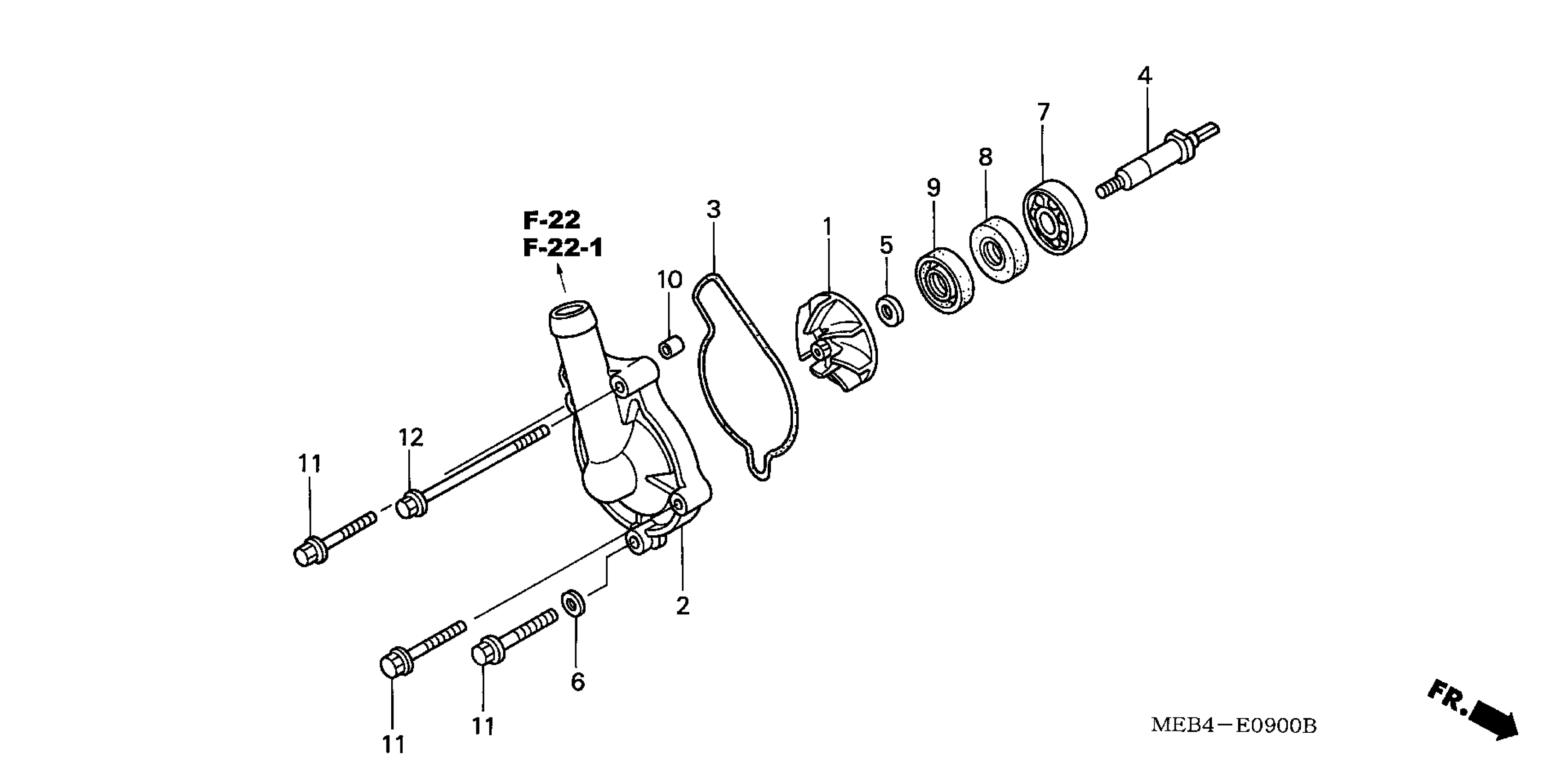

Honda CRF450R2A (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 WATER PUMP Diagram

#

Description

Price

1

IMPELLER, WATER PUMP

19215-MEN-850

$42.58

2

COVER, WATER PUMP

19221-MEN-850

$75.38

3

GASKET, WATER PUMP COVER

19226-MEB-670

$5.07

4

SHAFT, WATER PUMP

19241-MEB-670

$61.47

5

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

6

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

7

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

8

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

8

OIL SEAL (12X22X5)

91201-965-000

$4.06

9

SEAL, WATER PUMP

91211-MEN-A01

$5.55

10

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

11

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

12

BOLT, FLANGE (6X85)

96001-06085-00

$2.68
