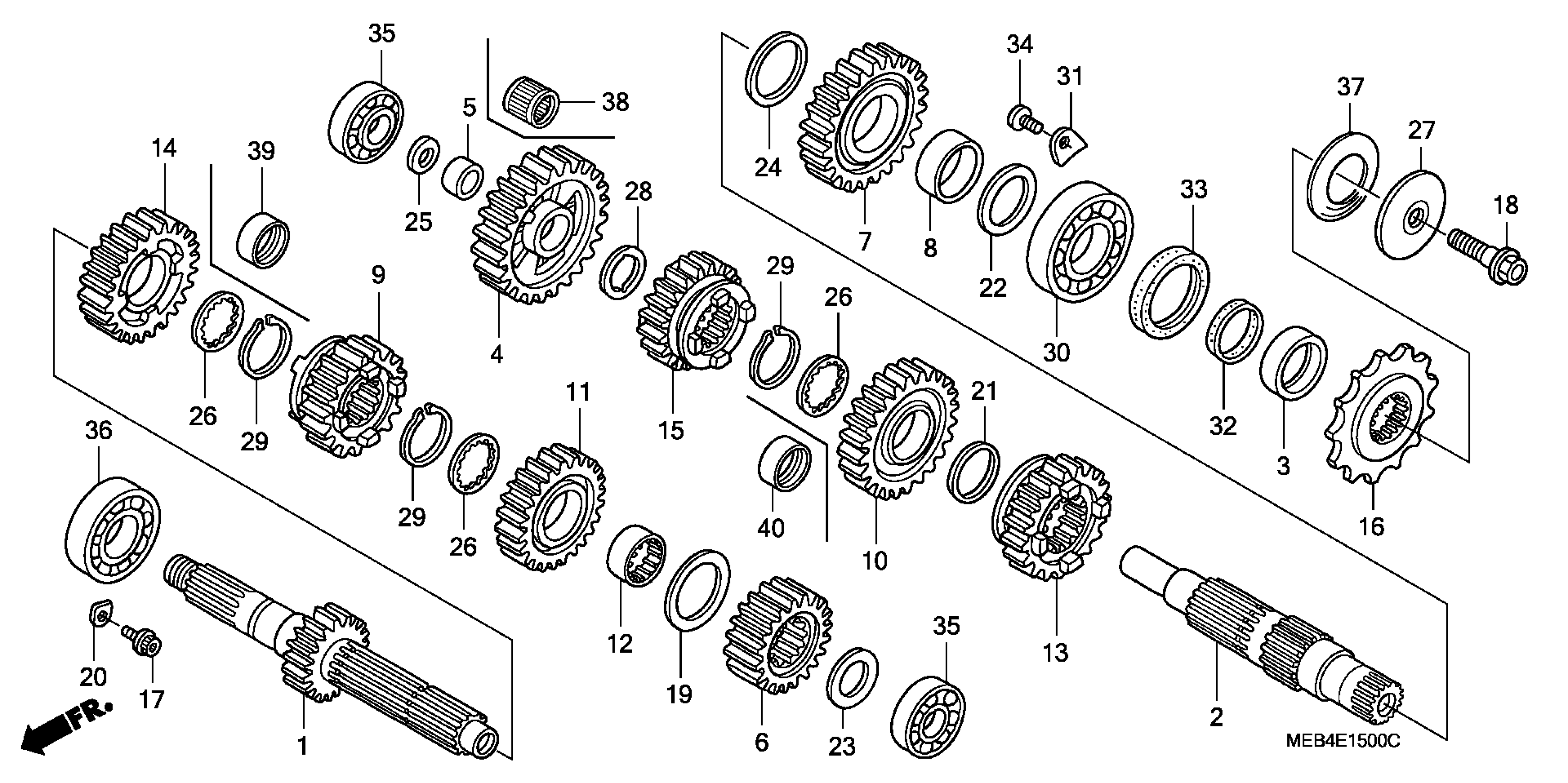

Honda CRF450R2A (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23210-MEN-A10

Unavailable

2

COUNTERSHAFT

23221-MEN-A00

Unavailable

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$14.95

4

GEAR, COUNTERSHAFT LOW (27T)

23411-MEN-730

$149.92

6

GEAR, MAINSHAFT SECOND (17T)

23421-MEN-A10

Unavailable

7

GEAR, COUNTERSHAFT SECOND (25T)

23431-KZ3-L30

$72.85

8

COLLAR, COUNTERSHAFT SECOND GEAR

23432-ML3-870

$18.66

9

GEAR, MAINSHAFT THIRD (17T)

23441-MEN-A10

$121.85

10

GEAR, COUNTERSHAFT THIRD (21T)

23451-MEN-A10

$111.77

11

GEAR, MAINSHAFT FOURTH (20T)

23461-MEN-A10

$114.54

12

COLLAR, MAINSHAFT FOURTH GEAR

23462-KZ3-L20

$14.92

13

GEAR, COUNTERSHAFT FOURTH (21T)

23471-MEN-A10

Unavailable

14

GEAR, MAINSHAFT FIFTH (22T)

23481-MEN-A10

$111.77

15

GEAR, COUNTERSHAFT FIFTH (20T)

23491-MEN-A10

$127.51

16

SPROCKET, DRIVE (13T)

23802-MEN-730

$39.50

17

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

18

BOLT, UBS (8X33)

90112-413-000

$3.85

19

WASHER, THRUST (25.2X34)

90446-430-000

Unavailable

20

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

21

WASHER (25X32X1.0)

90401-HP1-670

$2.87

22

WASHER, THRUST (24.1X36X1.5)

90445-ML3-871

$5.12

23

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

24

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.85

25

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

26

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

27

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

28

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

29

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

30

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-ML3-873

$18.92

31

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

32

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.67

33

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65

34

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

35

BEARING, RADIAL BALL (6203U)

91001-KSK-671

$11.23

36

BEARING, RADIAL BALL (6205U)

96140-62050-00

$30.39

37

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

38

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$9.37

39

COLLAR (25X28X10)

23482-MEN-A00

$12.74

40

COLLAR (25X28X11)

23492-KY2-000

$22.16
