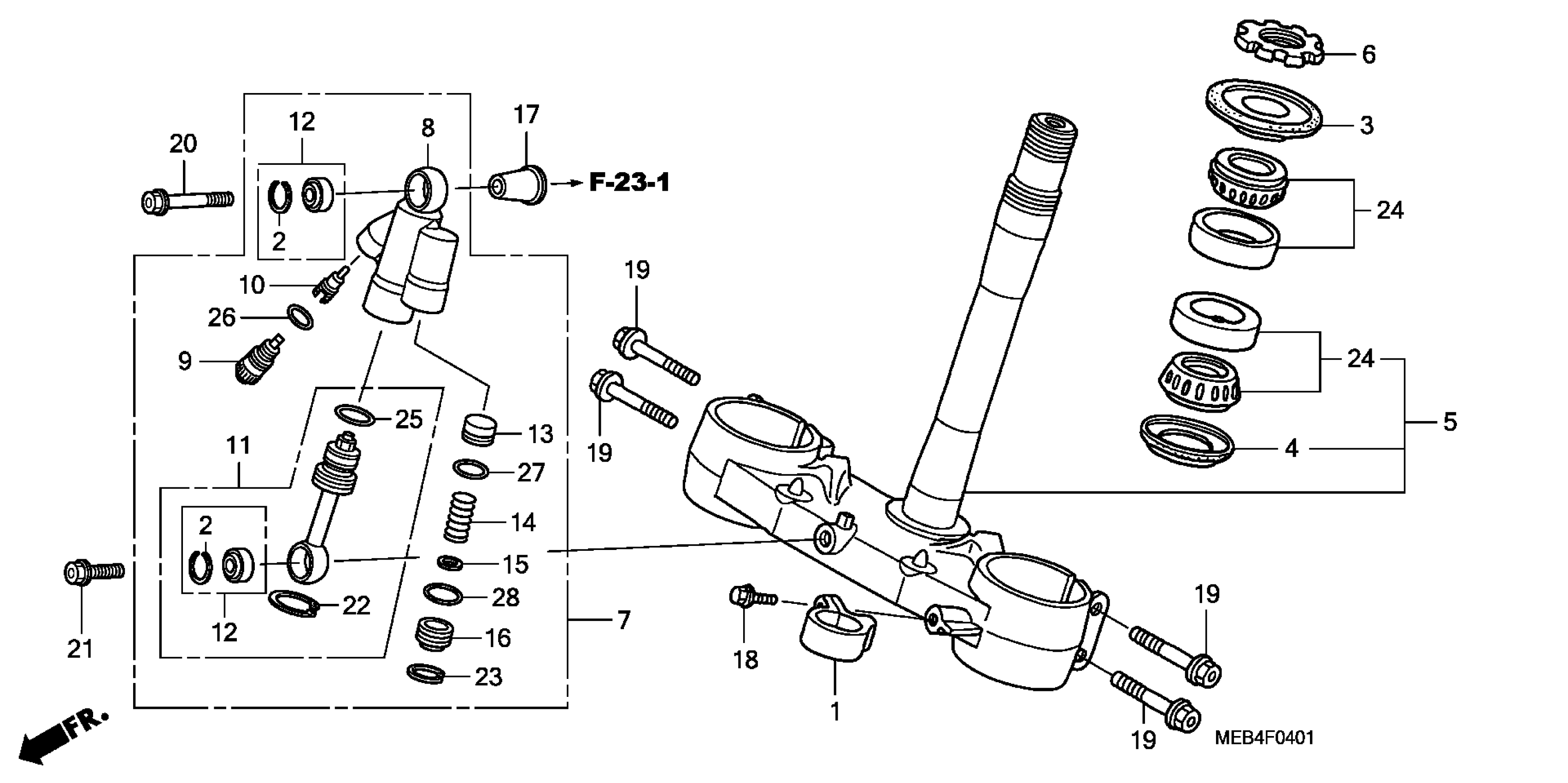

Honda CRF450R2A (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 STEERING STEM ('08) Diagram

GUIDE, FR. BRAKE HOSE

45468-KS7-830

$15.54

RING, STOPPER

52487-MEN-A11

$9.79

DUST SEAL, STEERING HEAD (ARAI)

53214-KZ3-861

$4.69

DUST SEAL, STEERING HEAD (ARAI)

53214-KZ4-701

$6.80

STEM SUB-ASSY., STEERING

53219-MEN-A10

Unavailable

THREAD, STEERING HEAD TOP

53229-KZ4-J30

$17.11

DAMPER ASSY., STEERING

53700-MEN-A11

Unavailable

CASE, DAMPER

53701-MEN-A11

$120.43

BOLT, PLUG

53711-MEN-A11

$30.37

PIECE, ADJUST

53712-MEN-A11

$9.03

ROD, PISTON This part replaces 53721-MEN-A11.

53721-KRN-A31

Unavailable

BEARING

53731-MEN-A11

$81.49

PISTON, FREE

53754-MEN-A11

$9.24

SPRING, RETURN

53755-MEN-A11

$5.93

WASHER

53756-MEN-A11

Unavailable

CAP, END

53757-MEN-A11

$8.21

COLLAR, STEERING DAMPER

53782-MEN-A10

$6.09

BOLT, FLANGE (6X16)

90106-MJ0-000

$2.80

BOLT, FLANGE (8X45)

90107-KZ4-J40

$1.97

BOLT (7X51.5)

90124-MEN-A10

$5.07

BOLT (7X25)

90125-MEN-A10

$3.84

CIRCLIP (23.5)

90651-MEN-A11

$3.51

CIRCLIP (17.3)

90652-MEN-A11

$3.37

BEARING, HEAD PIPE (NTN)

91015-KZ4-701

$35.20

O-RING (18.8X1.9)

91258-KZ3-B01

$2.51

O-RING (9.5X1.5)

91351-MEN-A11

$1.91

O-RING (11X1.9)

91352-MEN-A11

$1.76

O-RING (13.5X1.5)

91353-MEN-A11

$1.91
