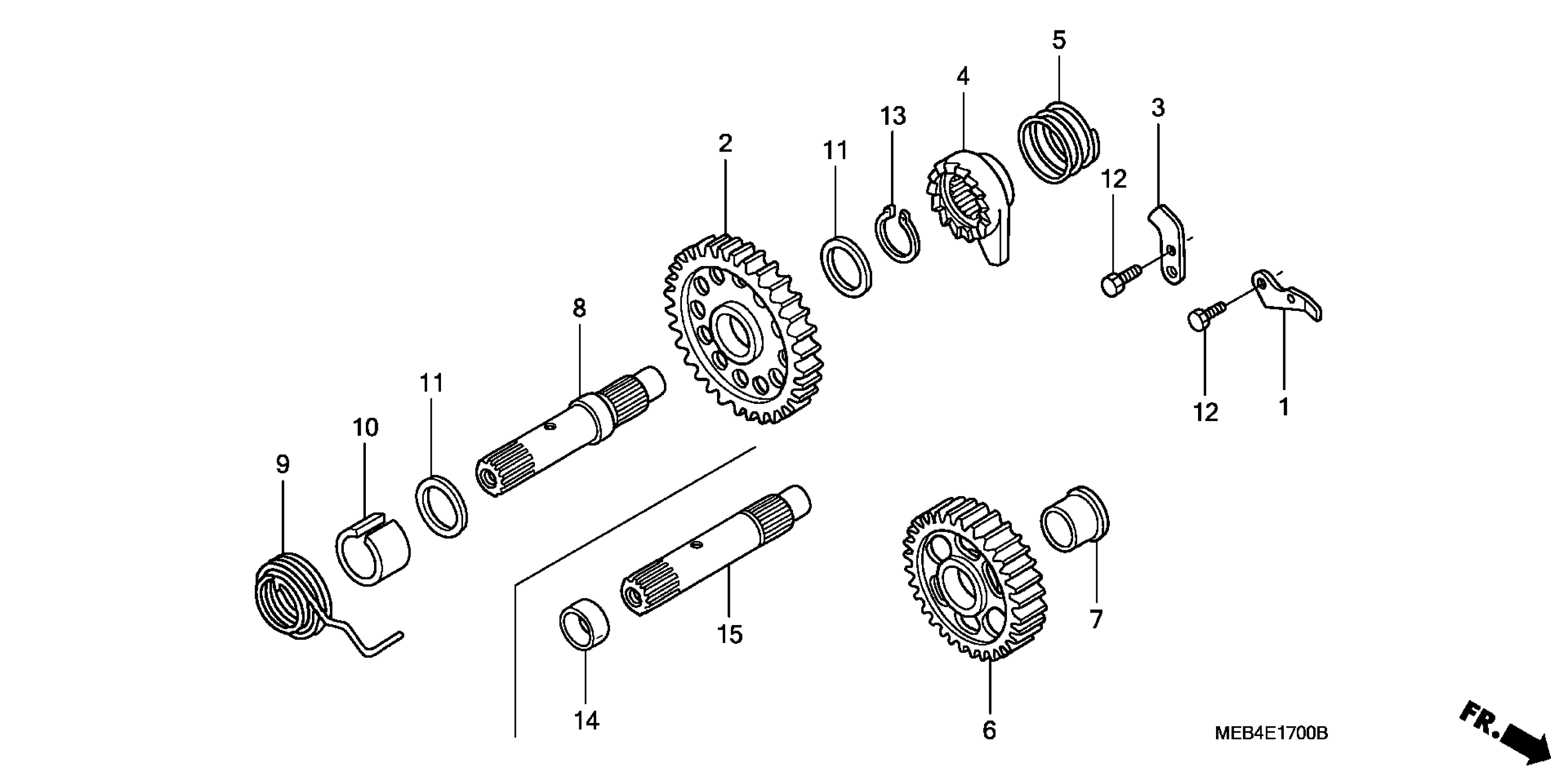

Honda CRF450R2A (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 KICK STARTER SPINDLE Diagram

PLATE, OIL GUIDE

15201-MEB-670

Unavailable

PINION, KICK STARTER (34T)

28211-MEN-670

Unavailable

PLATE, KICK STOPPER

28215-MEB-670

$5.48

RATCHET, KICK STARTER

28221-MEB-770

$45.93

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.92

GEAR, KICK STARTER IDLE (29T)

28231-KS7-000

$83.51

COLLAR, KICK STARTER IDLE GEAR

28232-KA4-740

$14.10

SPRING, KICK STARTER

28261-MEB-670

$9.43

COLLAR, KICK SPRING

28282-MEB-670

$6.22

WASHER, THRUST (20MM)

90554-728-940

$6.07

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP, OUTER (19MM)

94510-19000

$1.49

COLLAR (20X22X10)

23472-KY4-900

$9.72

SPINDLE, KICK STARTER

28251-MEN-670

$97.84
