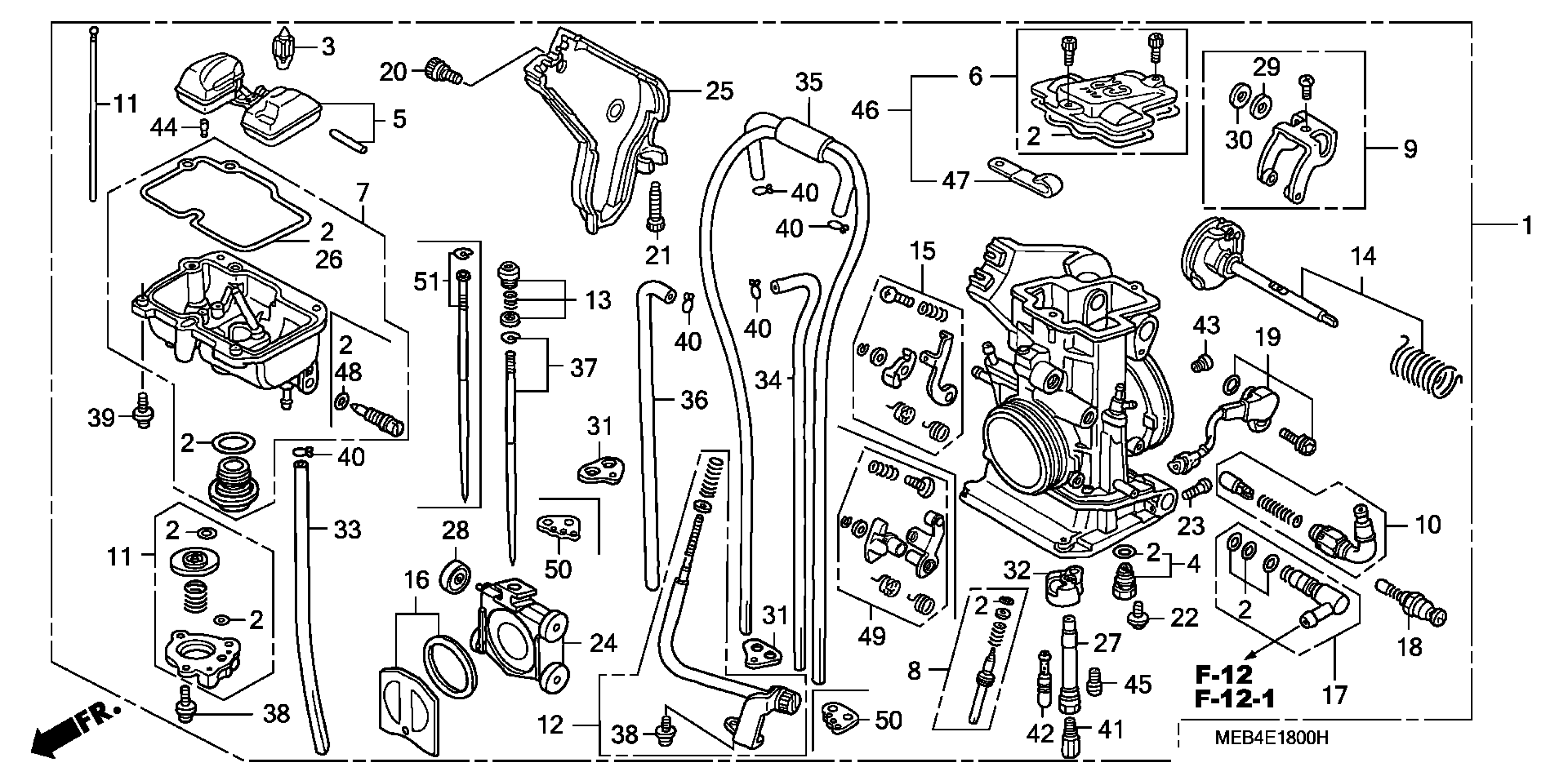

Honda CRF450R2A (08) MOTORCYCLE, JPN, VIN# JH2PE053-8M600001 TO JH2PE053-8M609999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (FCR00G A)

16100-MEN-A12

Unavailable

2

GASKET SET

16010-MEN-851

$23.60

3

VALVE SET, FLOAT

16011-MEN-851

$38.42

5

FLOAT SET

16013-KRN-851

Unavailable

6

TOP SET

16014-MEY-A11

$44.97

7

CHAMBER SET, FLOAT

16015-MEN-A01

Unavailable

8

SCREW SET A

16016-KRN-A01

$28.26

9

ARM SET, LINK

16018-MEY-A11

$14.41

10

START SET, HOT

16019-MEB-671

$26.30

11

DIAPHRAGM SET, PUMP

16021-MEN-A01

$35.96

12

SCREW SET B

16028-MEN-A01

$39.75

13

SCREW SET, JET NEEDLE

16029-MEY-A11

$11.41

14

SHAFT SET, THROTTLE

16032-MEN-A11

Unavailable

16

VALVE SET, FLOATING

16037-MEB-671

$106.14

17

JOINT SET, FUEL

16038-KRN-671

$37.57

18

VALVE SET, STARTER

16046-MEB-671

$26.34

19

SENSOR ASSY., THROTTLE

16060-MEN-A11

Unavailable

20

BOLT, COVER

16080-HP1-601

$3.79

23

SCREW, PAN

16083-MEB-671

$1.38

24

VALVE, THROTTLE

16112-HP1-A01

$280.06

25

COVER, THROTTLE

16157-MEN-A01

$22.65

26

GASKET, FLOAT CHAMBER

16163-MEB-671

$11.81

27

HOLDER, NEEDLE JET

16165-MEN-A01

Unavailable

28

ROLLER

16172-MEB-671

$7.03

29

WASHER, PLAIN (PO)

16177-MEB-671

$1.43

30

WASHER, PLAIN (SUS)

16178-MEB-671

$1.28

32

PLATE, BUFFER

16185-MEN-671

$10.12

33

TUBE, OVERFLOW

16196-MEN-851

$7.61

34

TUBE, AIR VENT

16197-MEB-671

$5.90

35

TUBE, AIR VENT

16198-MEB-671

$7.48

36

TUBE, AIR VENT

16199-MEB-671

$5.90

38

SCREW-WASHER (4X8)

93892-04008-08

$1.04

38

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.04

39

SCREW-WASHER (4X14)

93892-04014-08

$1.00

39

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.00

40

CLIP, TUBE (B7)

95002-02079

$1.09

41

JET, MAIN (#182) | (Optional). This part replaces 99101-357-1820.

99113-GHB-1820

Unavailable

41

JET, MAIN (#185) | (Optional). This part replaces 99101-357-1850.

99113-GHB-1850

Unavailable

41

JET, MAIN (#182) | (Optional).

99113-GHB-1820

Unavailable

41

JET, MAIN (#185) | (Optional).

99113-GHB-1850

Unavailable

41

JET, MAIN (#168) | (Optional). This part replaces 99101-357-1680.

99113-GHB-1680

$8.45

41

JET, MAIN (#170) | (Optional).

99101-357-1700

$8.45

41

JET, MAIN (#172) | (Optional).

99101-357-1720

$8.45

41

JET, MAIN (#175) | (Optional).

99101-357-1750

$8.45

41

JET, MAIN (#178) This part replaces 99101-357-1780.

99113-GHB-1780

$8.45

41

JET, MAIN (#180) | (Optional). This part replaces 99101-357-1800.

99113-GHB-1800

Unavailable

41

JET, MAIN (#168) | (Optional).

99113-GHB-1680

$8.45

41

JET, MAIN (#170) | (Optional). This part replaces 99113-GHB-1700.

99101-357-1700

$8.45

41

JET, MAIN (#172) JET, MAIN (#155) | (Optional). This part replaces 99113-GHB-1720.

99101-357-1720

$8.45

41

JET, MAIN (#178)

99113-GHB-1780

$8.45

41

JET, MAIN (#180) | (Optional).

99113-GHB-1800

Unavailable

41

JET, MAIN (#188) | (Optional). This part replaces 99101-357-1880.

99113-GHB-1880

$9.09

41

JET, MAIN (#188) | (Optional).

99113-GHB-1880

$9.09

42

JET, SLOW (#40) | (Optional).

99103-GBF-0400

$11.84

42

JET, SLOW (#45) | (Optional).

99103-GBF-0450

$12.58

42

JET, SLOW (#48) | (Optional).

99103-GBF-0480

$13.09

42

JET, SLOW (#40) | (Optional). This part replaces 99103-KA3-0400.

99103-GBF-0400

$11.84

42

JET, SLOW (#45) | (Optional). This part replaces 99103-KA3-0450.

99103-GBF-0450

$12.58

42

JET, SLOW (#40) | (Optional). This part replaces 99103-440-0400.

99103-GBF-0400

$11.84

42

JET, SLOW (#42)

99103-440-0420

$11.83

42

JET, SLOW (#45) | (Optional). This part replaces 99103-440-0450.

99103-GBF-0450

$12.58

42

JET, SLOW (#48) | (Optional). This part replaces 99103-440-0480.

99103-GBF-0480

$13.09

42

JET, SLOW (#38) | (Optional). This part replaces 99103-KA3-0380.

99103-KBA-0380

$11.84

42

JET, SLOW (#38) | (Optional).

99103-KBA-0380

$11.84

42

JET, SLOW (#38) | (Optional). This part replaces 99103-440-0380.

99103-KBA-0380

$11.84

44

JET, LEAK (#55)

99108-MEB-0550

$8.56

44

JET, LEAK (#45) | (Optional).

99108-KRN-0450

$8.80

44

JET, LEAK (#50) | (Optional).

99108-KRN-0500

$8.80

44

JET, LEAK (#60) | (Optional).

99108-KSE-0600

$7.59

44

JET, LEAK (#65) | (Optional).

99108-KSC-0650

$7.35

45

JET, BY-STARTER (#72)

99112-MEB-0720

$10.93

47

CLIP

16088-HP1-901

$8.67

48

O-RING (1.3X4.3)

16076-ND5-004

$2.26

49

LEVER SET, PUMP

16033-MEN-A01

$16.17

50

BINDER

16178-MEN-851

$4.89

51

NEEDLE SET, JET (NJYP) | (Optional).

16201-MEN-A01

Unavailable

51

NEEDLE SET, JET (NJYQ) | (Optional).

16202-MEN-A01

$32.25

51

NEEDLE SET, JET (NJYR) | (Optional).

16203-MEN-A01

$27.87

51

NEEDLE SET, JET (NJYS) | (Optional).

16204-MEN-A01

$28.29

51

NEEDLE SET, JET (NJYT) | (Optional).

16205-MEN-A01

$27.04

51

NEEDLE SET, JET (NJGP) | (Optional).

16229-MEN-E01

Unavailable

51

NEEDLE SET, JET (NJGQ) | (Optional).

16230-MEN-E01

Unavailable

51

NEEDLE SET, JET (NJGR)

16231-MEN-E01

Unavailable

51

NEEDLE SET, JET (NJGS) | (Optional).

16232-MEN-E01

$25.80

51

NEEDLE SET, JET (NJGT) | (Optional).

16233-MEN-E01

Unavailable
