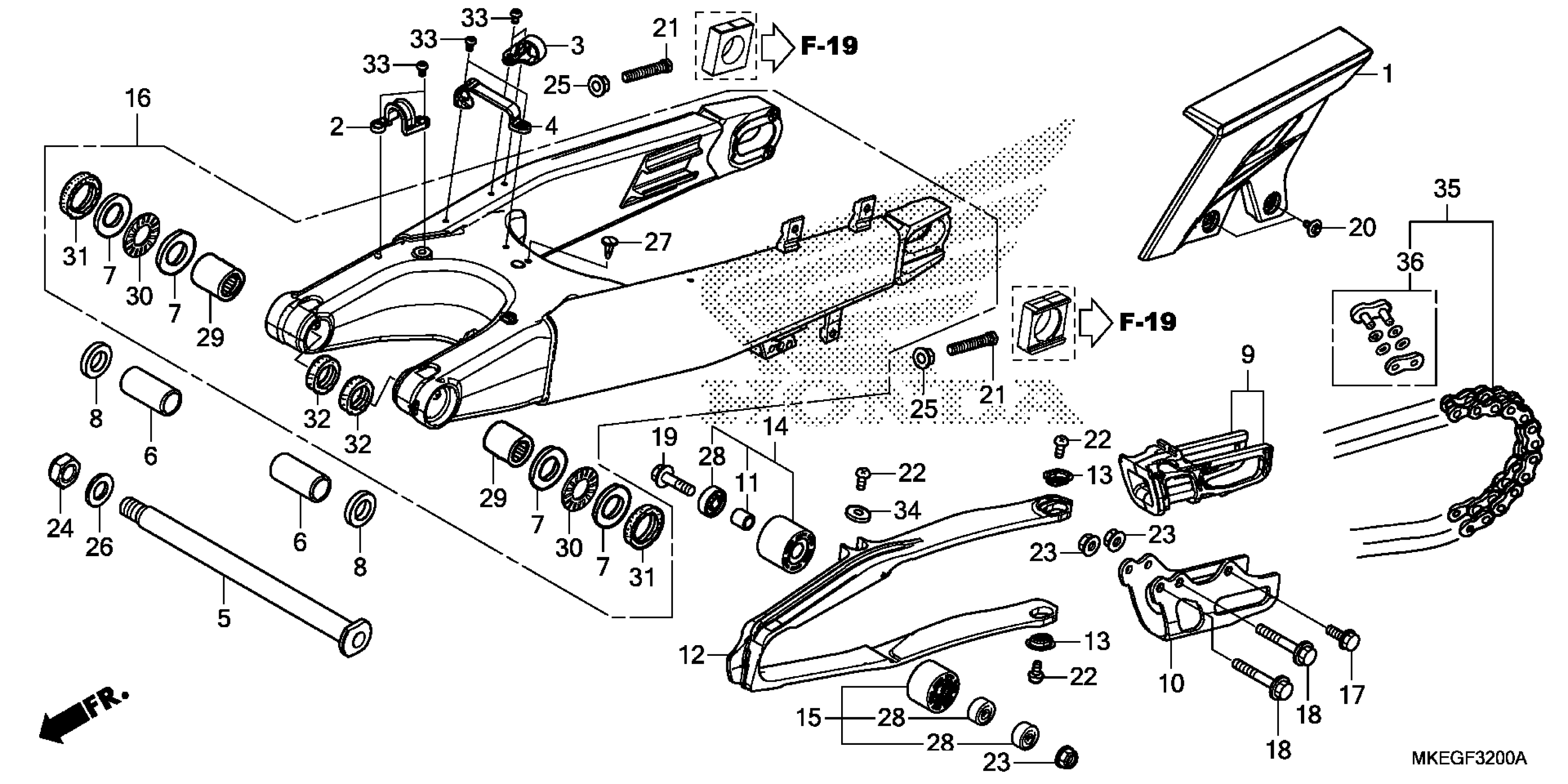

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MKE-A50

$80.91

2

GUIDE, BRAKE HOSE

43468-KRN-A90

$8.69

3

GUIDE A, BRAKE HOSE

43468-KRN-C90

$4.40

4

GUIDE B, BRAKE HOSE

43469-MKE-A00

$5.43

5

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$25.58

6

COLLAR, SWINGARM (45MM)

52141-MKE-A00

$22.70

7

WASHER, SWINGARM SIDE THRUST

52143-MEN-A30

$1.92

8

COLLAR, SWINGARM PIVOT SIDE

52143-MKE-A60

$10.85

9

GUIDE SET, CHAIN

52146-MKE-A50

$31.93

10

PLATE, CHAIN GUIDE

52147-MEN-J00

$47.39

11

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.72

12

SLIDER, CHAIN | Use up to Frame SN LK100587. This part replaces 52170-MKE-A50.

52170-MKE-A51

$91.42

12

SLIDER, CHAIN

52170-MKE-A51

$91.42

13

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

14

ROLLER, CHAIN (34MM)

52175-MKE-A00

$54.20

15

ROLLER, CHAIN (LOWER) (34MM)

52176-MKE-A00

$54.20

16

SWINGARM SUB-ASSY., RR. *NH900L* (DEEP BLACK)

52200-MKE-A50ZB

$1,030.43

17

BOLT, FLANGE (6X12)

90020-GHB-620

$2.15

18

BOLT, FLANGE (6X45)

90020-GHB-750

$2.70

19

BOLT, FLANGE (8X32)

90101-MEN-A70

$3.30

20

BOLT, SPECIAL (6MM)

90103-MKE-A00

$2.92

21

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.92

22

SCREW, PAN (5X8)

90115-KV3-700

$2.61

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

24

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.81

25

NUT, HEX. (10MM)

90309-357-000

$3.40

26

WASHER (26X14X2.8)

90501-GAH-000

$6.63

26

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.63

27

CLIP, TRIM (5MM) *NH900L* (DEEP BLACK)

90666-SA0-003M4

$6.43

28

BEARING, RADIAL BALL (608UU)

91051-KRN-A31

$12.50

29

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

29

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

30

BEARING, NEEDLE THRUST

91072-KZ3-861

$13.46

31

DUST SEAL (30X37X3)

91251-MKE-A01

$6.58

32

DUST SEAL (22X29X3)

91252-MKE-A01

$5.30

33

SCREW, PAN (5X8)

93500-05008-0G

$1.49

34

WASHER, PLAIN (5MM)

94103-05700

$1.49

35

CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L)

40540-MKE-A12

$201.90

36

MASTER LINK (RK)(SEAL TYPE)

40531-MKE-A12

$7.30
