Description

Price

1

NUT, SETTING (6MM)

19014-KEA-003

$3.10

2

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

3

SHROUD, FAN

19016-MKE-A51

$63.38

4

FAN, COOLING

19020-KVZ-631

$29.32

5

RUBBER, RADIATOR (UPPER)

19021-MEN-A30

$2.31

6

GRILLE, R. RADIATOR

19033-MKE-A50

$40.00

7

GRILLE, L. RADIATOR

19034-MKE-A50

$40.00

8

CAP, RADIATOR

19037-GEE-710

$30.28

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

11

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

12

HOSE A, WATER

19061-MKE-A50

$4.72

13

HOSE B, WATER

19062-MKE-A50

$6.02

14

HOSE C, WATER

19063-MKE-A50

$29.25

15

HOSE D, WATER

19064-MKE-A50

$28.77

16

HOSE E, WATER

19065-MKE-A50

$6.02

17

PETCOCK ASSY., DRAIN

19070-MEC-003

$10.07

18

PETCOCK, DRAIN

19071-MEC-003

$3.58

19

MOTOR ASSY., FAN

19080-MKE-A51

$191.99

20

RADIATOR ASSY., R.

19100-MKE-A50

$311.62

21

RADIATOR ASSY., L.

19160-MKE-A50

$293.78

22

CLAMP, WATER HOSE (D27)

19502-MKE-A00

$9.11

23

JOINT, HOSE THREE WAY

19503-MKE-A50

$35.41

24

CLAMP, WATER HOSE (D21)

19505-MKE-A50

$7.90

25

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

27

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

28

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

29

NUT, CLIP (6MM)

90201-KPR-901

$1.87

30

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

31

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

32

O-RING (9.8X1.9)

91353-MEC-003

$3.42

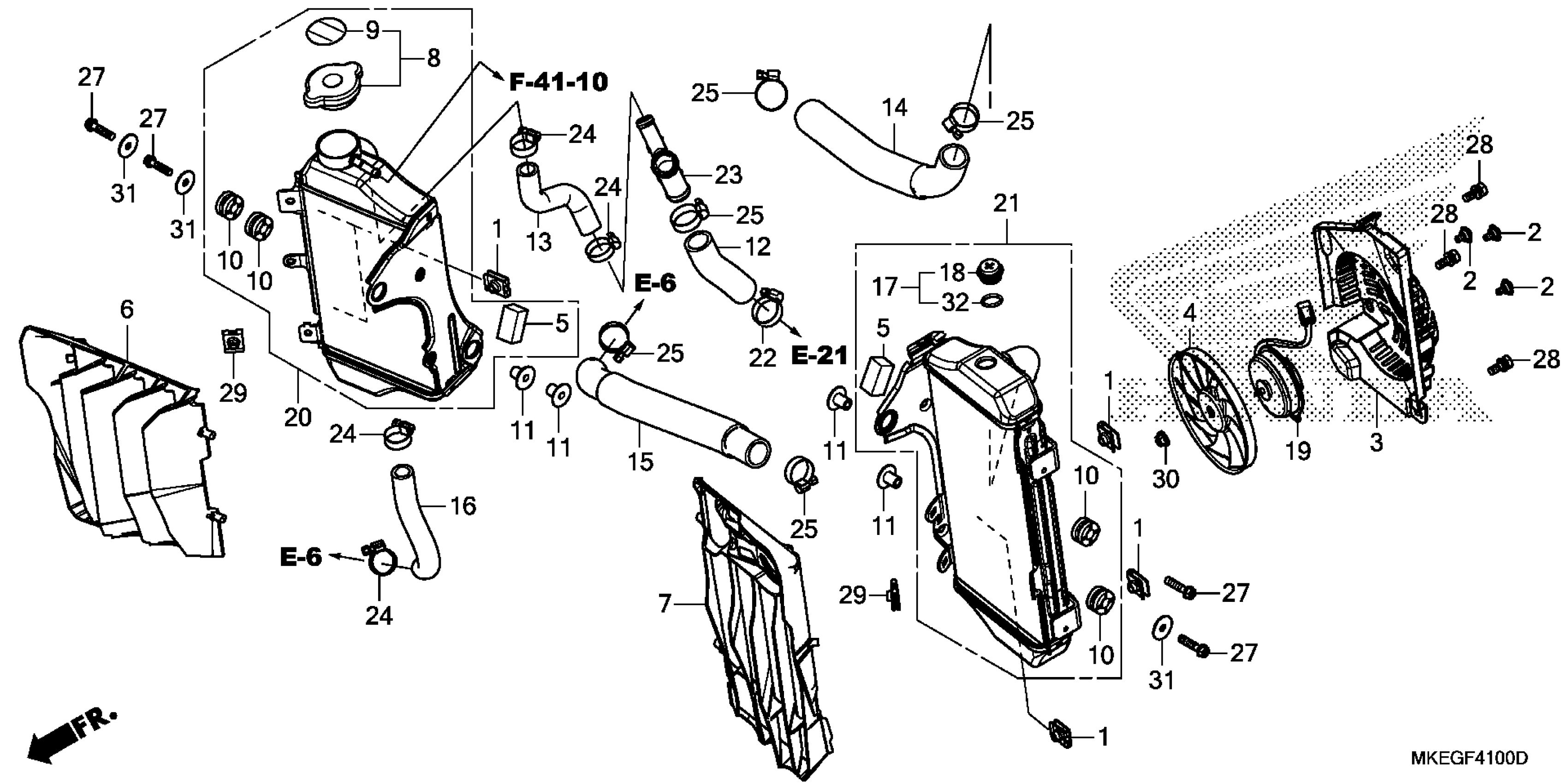

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 RADIATOR Diagram
