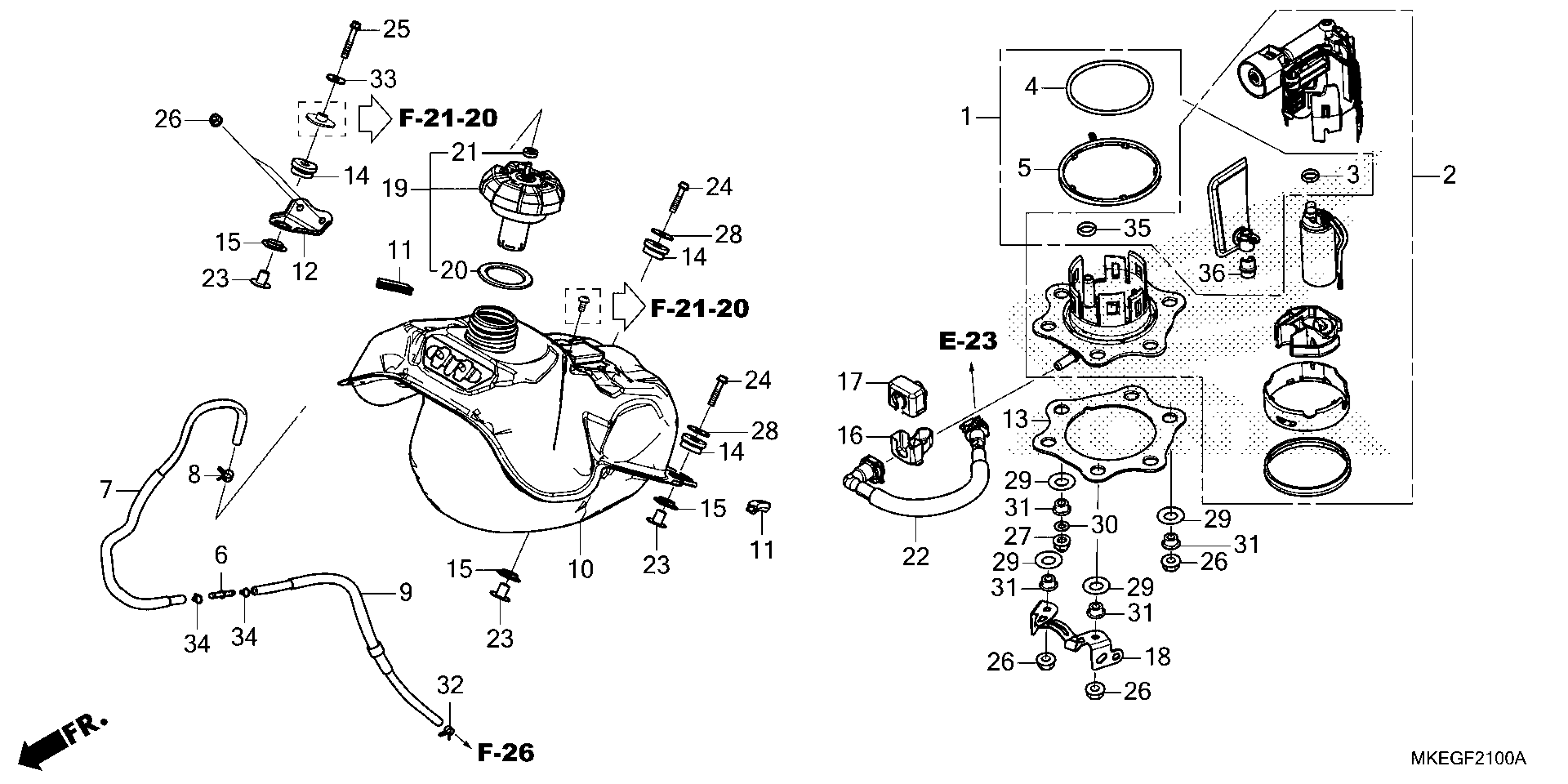

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 FUEL TANK Diagram

FILTER KIT, FUEL

06160-MKE-A00

$81.49

PUMP ASSY., FUEL (MSDS)

16700-MKE-A51

$491.57

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

DUST SEAL

16712-MKE-A00

$13.88

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

TUBE, CHARGE

17311-MKE-A50

$31.10

CLAMP, HOSE (9.5)

17323-MKE-A51

$4.13

TUBE B, CHARGE

17324-MKE-A50

$38.28

TANK, FUEL

17510-MKE-A50

$1,040.52

TRIM, FUEL TANK

17518-MFN-D00

$2.80

STAY, FR. FUEL TANK

17518-MKE-A50

$16.62

PLATE, FUEL PUMP

17519-MKE-A00

$20.80

RUBBER, TANK MOUNTING

17523-MKE-A50

$5.75

COLLAR, TANK MOUNTING

17524-MKE-A50

$12.02

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.92

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

GUIDE, STOPPER CABLE

17578-K95-A20

$25.64

CAP ASSY., FUEL TANK

17620-MKE-A52

$91.13

GASKET, FUEL CAP

17622-MKE-A00

$6.33

CAP, TUBE JOINT

17628-MKE-A50

$2.26

HOSE, FUEL FEED

17630-MKE-A01

$78.50

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

BOLT, FLANGE (6X35)

90021-GHB-720

$2.44

NUT, FLANGE (6MM) (Honda Code 7039662)

90217-HW1-670

$1.79

NUT, FLANGE CAP (6MM)

90301-MKE-A00

$3.79

WASHER, PLAIN (6MM)

90404-GE2-760

$2.13

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.87

COLLAR, FUEL PUMP

90504-MKE-A00

$6.49

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

O-RING (10X2.4)

16702-KTR-940

$5.28

RUBBER, STOPPER

16735-MEN-A51

$7.92
