Description

Price

1

SPOKE SET, FR. (240MM)

06440-KZ4-J40

$4.49

2

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

3

SENSOR, FR. WHEEL SPEED

38520-MKE-A51

$188.48

4

CLIP, WIRE

38525-MKE-A51

$4.16

5

CAP, VALVE

42714-KA3-710

$10.46

6

CAP, RIM HOLE

42717-329-000

$4.21

7

AXLE, FR. WHEEL

44301-MEN-000

$51.12

8

COLLAR, L. FR. WHEEL

44311-MKE-A60

$17.46

9

COLLAR, R. FR. WHEEL

44312-KRN-A30

$19.24

10

RING, FR. PULSER

44515-MKE-A50

$27.31

11

COLLAR, FR. DISTANCE

44620-MAC-680

$22.11

12

HUB SUB-ASSY., FR. WHEEL

44635-MAC-680

$176.07

13

WHEEL SUB-ASSY., FR.

44650-MKE-A50

$827.43

14

RIM, FR. WHEEL (21X1.60)

44701-MKE-A51

$272.89

15

TIRE, FR. (80/100-21M/C 51P) (IRC) This part replaces 44711-MKE-A51.

44711-MKE-A52

$136.95

15

TIRE, FR. (80/100-21M/C 51P) (IRC)

44711-MKE-A52

$136.95

16

TUBE, TIRE (3.00-21) This part replaces 44712-KAE-015.

44712-KAE-025

$39.48

16

TUBE, TIRE (3.00-21)

44712-KAE-025

$39.48

17

FLAP, TIRE (IRC)

44713-KZZ-901

$3.03

18

DISK, FR. BRAKE

45351-MKE-A50

$276.21

19

COVER, FR. DISK NH1 (BLACK)

51614-MKE-A50ZA

$32.67

20

BOLT, DISK (6X19)

90105-MAC-680

$4.99

21

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$3.10

22

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.21

23

BOLT, TORX (5X8)

90131-MGE-000

$2.92

24

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

25

NUT, FR. AXLE

90301-KZ4-J40

$16.85

26

BAND, RUBBER (35MM)

90650-KZZ-J80

$3.01

27

BEARING, RADIAL BALL (6904)

91062-MAC-681

$24.55

28

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$11.37

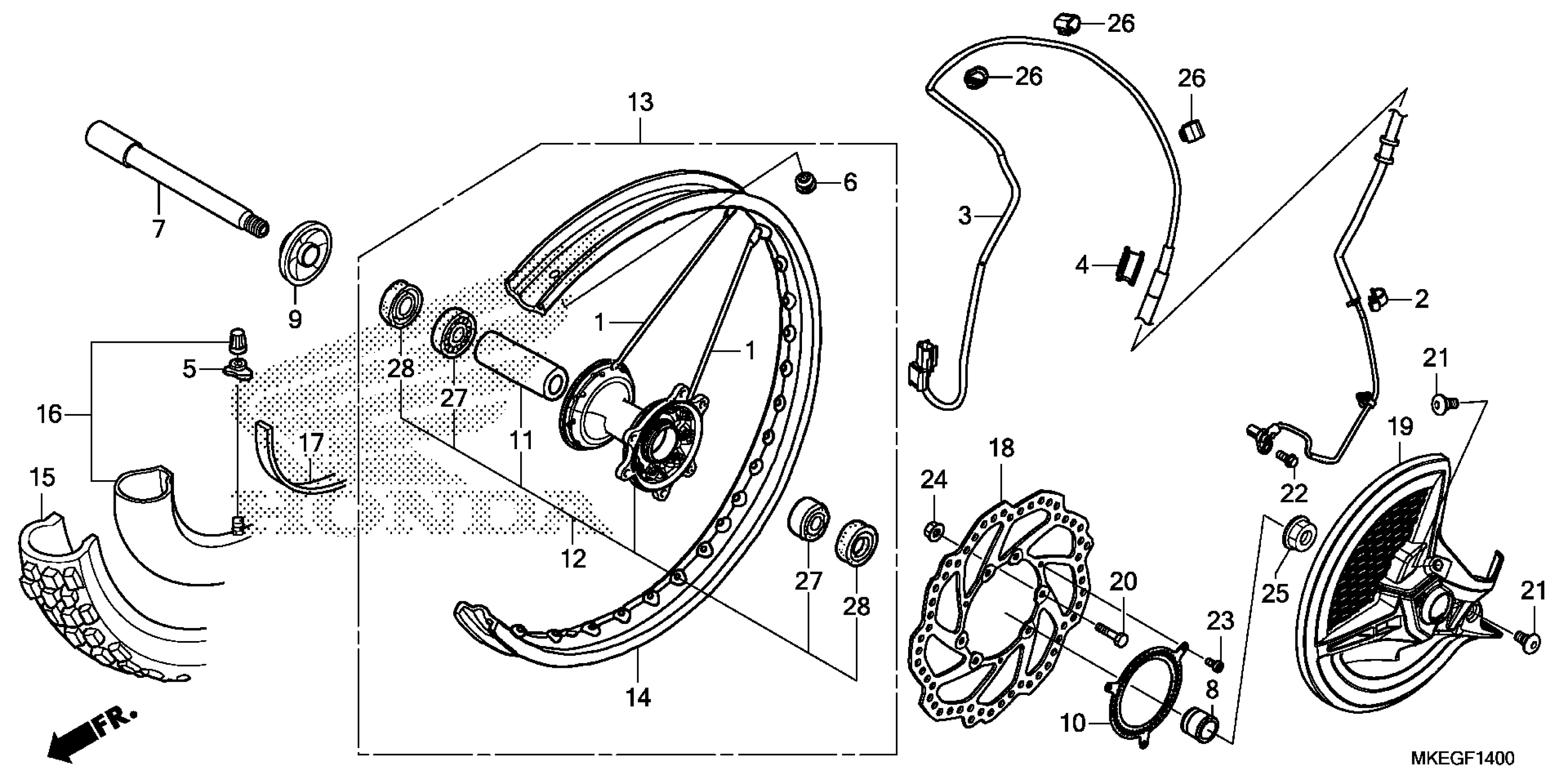

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 FRONT WHEEL Diagram
