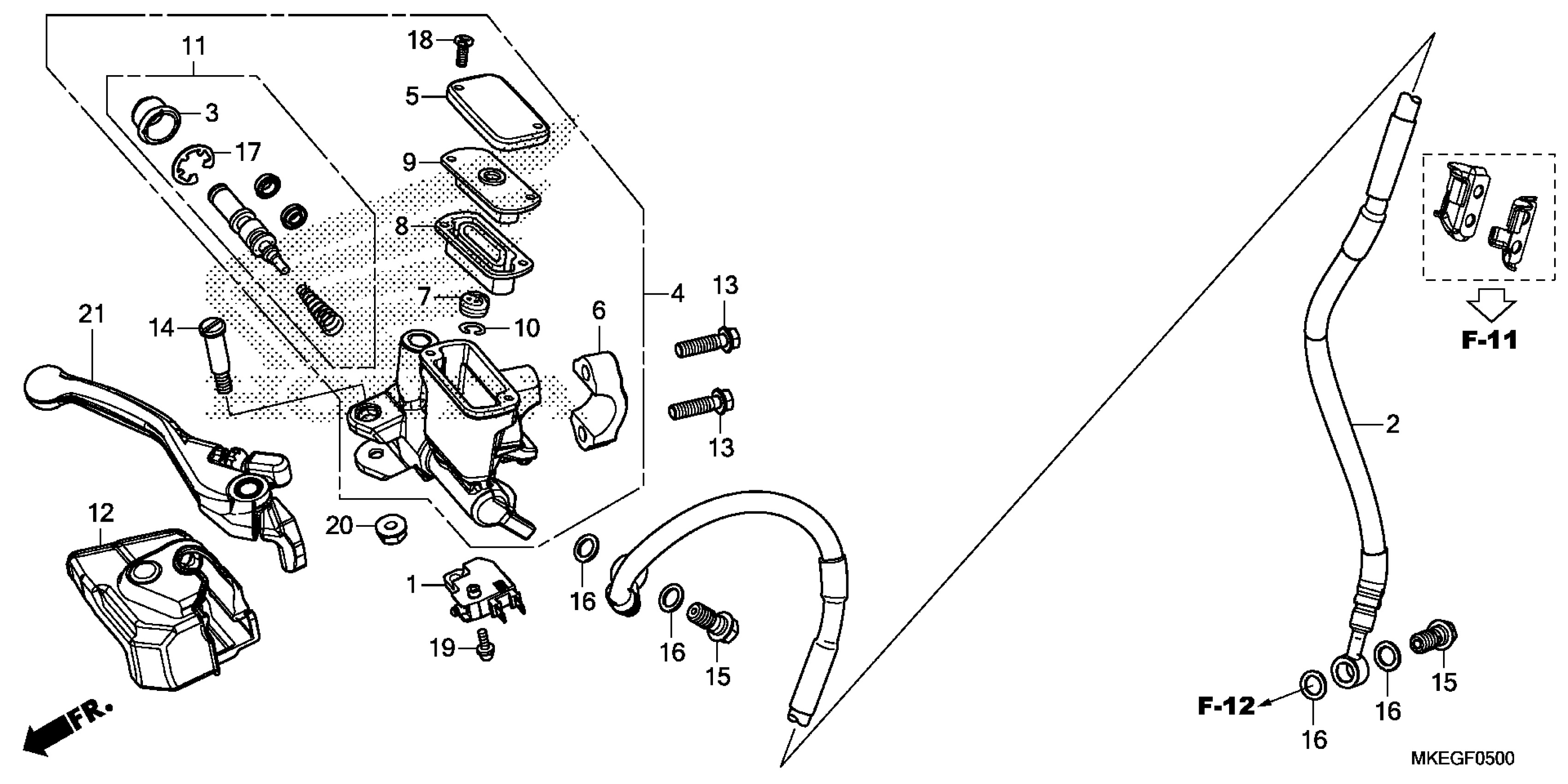

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

HOSE, FR. BRAKE

45125-MKE-A51

$130.04

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR.

45510-MKE-A51

$210.93

CAP, MASTER CYLINDER

45513-MKE-A51

$23.87

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.39

SEPARATOR

45518-KA3-731

$11.18

DIAPHRAGM

45520-GW0-911

$6.95

PLATE, DIAPHRAGM

45521-GW0-911

$5.47

RING

45523-KA3-731

$2.71

MASTER CYLINDER SET

45530-MKE-A51

$42.03

COVER, R. HANDLE LEVER

53176-MKE-A51

$13.65

BOLT, FLANGE (6X22)

90020-GHB-670

$2.15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP (INNER) (18.8)

90651-K03-M61

$0.63

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

NUT, FLANGE (6MM)

94050-06000

$0.60

LEVER ASSY., R. HANDLE

53170-MKE-A51

$40.87
