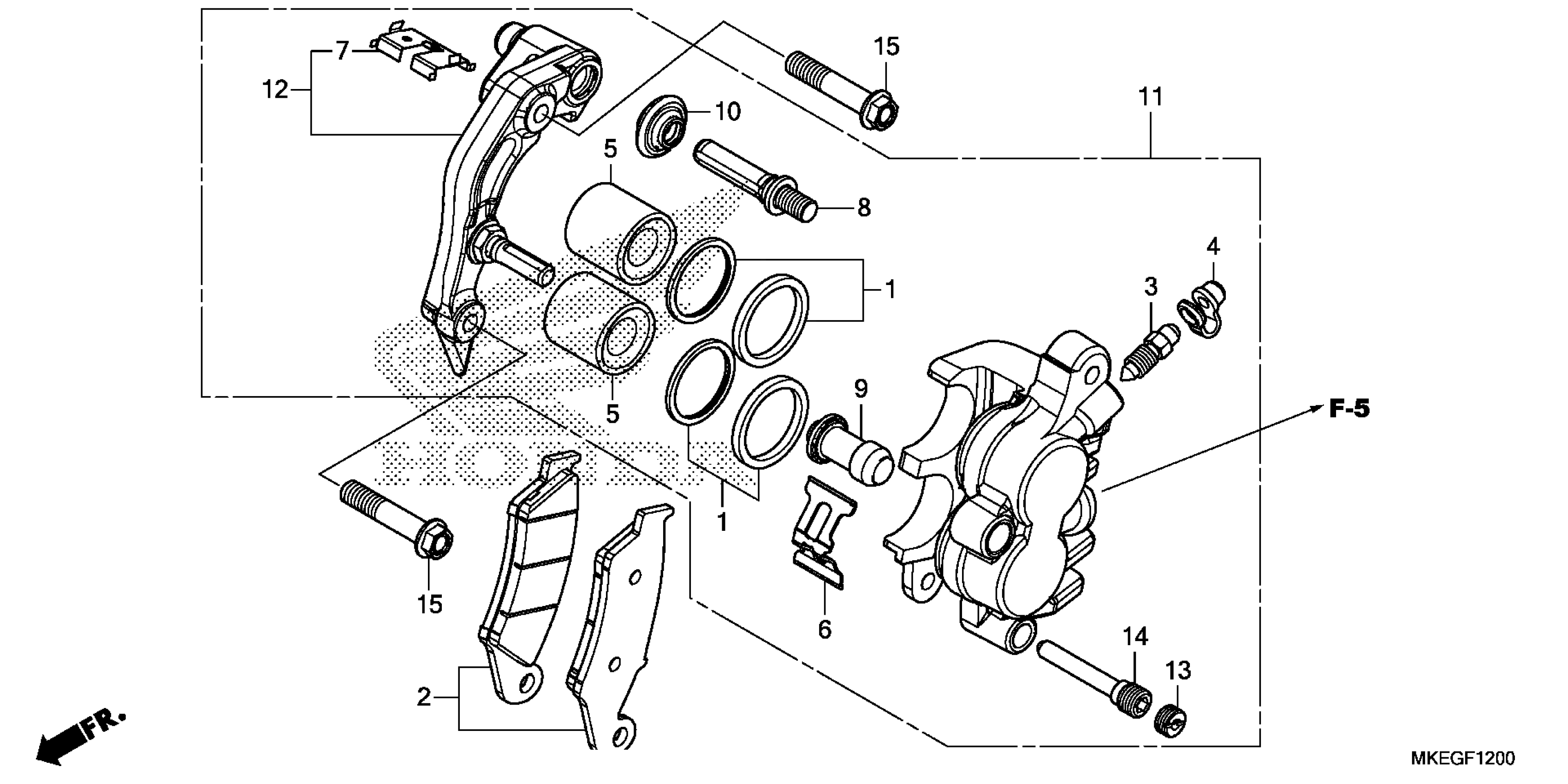

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, FR.

06455-KCZ-902

$118.29

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

PISTON

45107-KS6-702

$55.47

6

SPRING, PAD

45108-MY1-006

$10.74

7

RETAINER

45112-KS6-701

$6.08

8

BOLT A, BOLT

45131-HA5-672

$15.44

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

10

BOOT B

45133-MA3-006

$5.46

11

CALIPER SUB-ASSY., L. FR.

45150-MKE-A51

$289.11

12

BRACKET SUB-ASSY., L. FR.

45190-MKE-A51

$113.79

13

PLUG, PIN

45203-MG3-016

$5.12

14

PIN, HANGER

45215-HA5-672

$10.63

15

BOLT, FLANGE (8X40)

90110-KZ4-J40

$2.92
