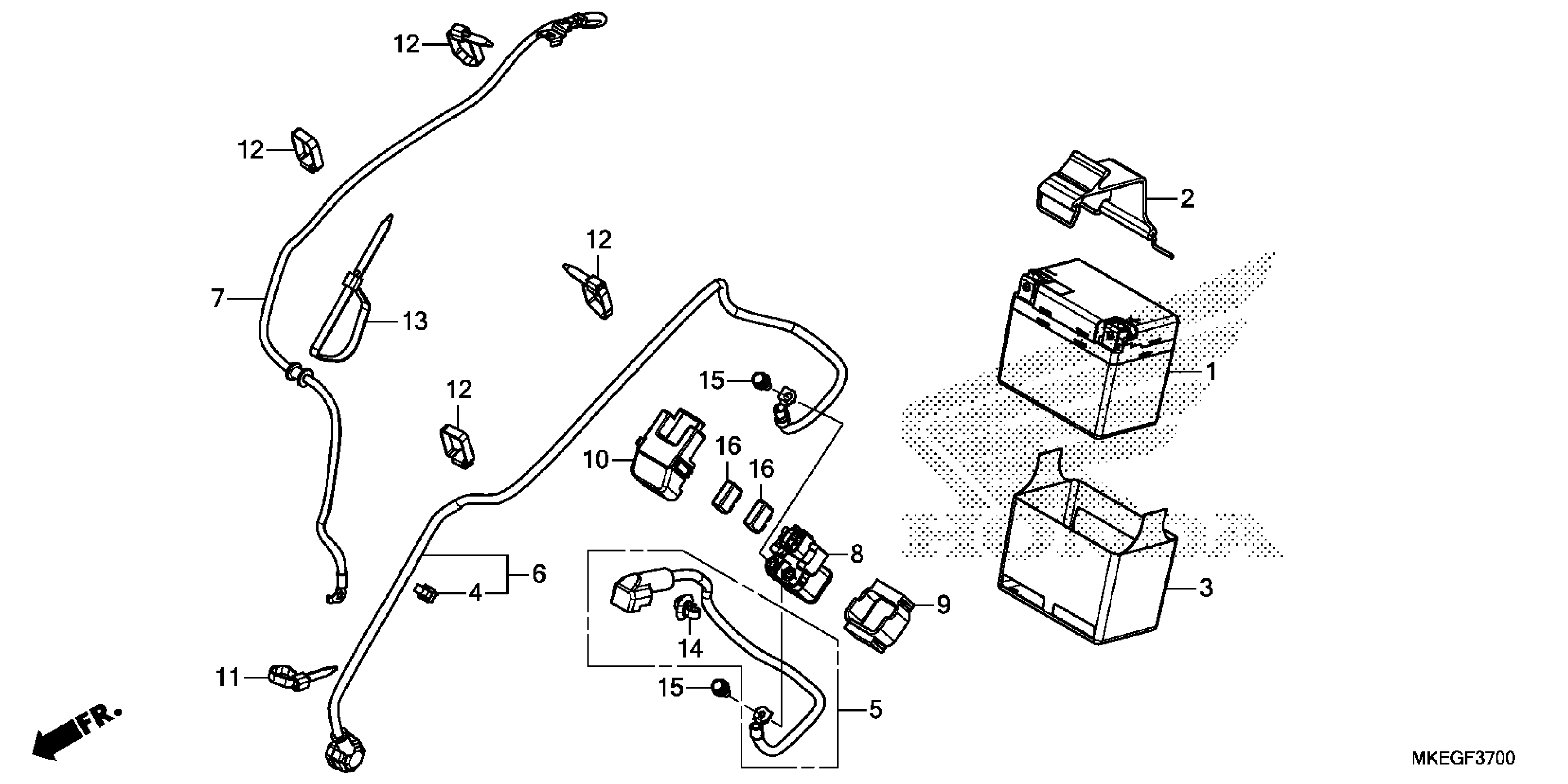

Honda CRF450LAC (20) MOTORCYCLE, JPN, VIN# JH2PD111-LK100001 BATTERY Diagram

BATTERY (HY93-C) (ELIIY POWER) (MSDS)

31500-MKE-A51

$255.60

BAND, BATTERY

31501-MKE-A50

$21.80

RUBBER, BATTERY

31525-MKE-A50

$19.02

BAND, WIRE HARNESS

32161-GFL-J41

$1.85

CABLE, STARTER MAGNETIC BATTERY

32401-MKE-A50

$33.26

CABLE, STARTER MOTOR

32410-MKE-A50

$45.72

CABLE, BATTERY GROUND

32601-MKE-A50

$29.38

SWITCH, STARTER MAGNETIC

35851-MKE-A11

$85.51

RUBBER, SHOCK

35856-MKE-A11

$9.02

COVER, STARTER MAGNETIC SWITCH

35857-MKE-A11

$8.56

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.80

BOLT-WASHER (6X12)

93403-06012-08

$1.57

FUSE, BLADE (20A) FUSE (F20) (LITTEL)

98200-32000

$1.49
