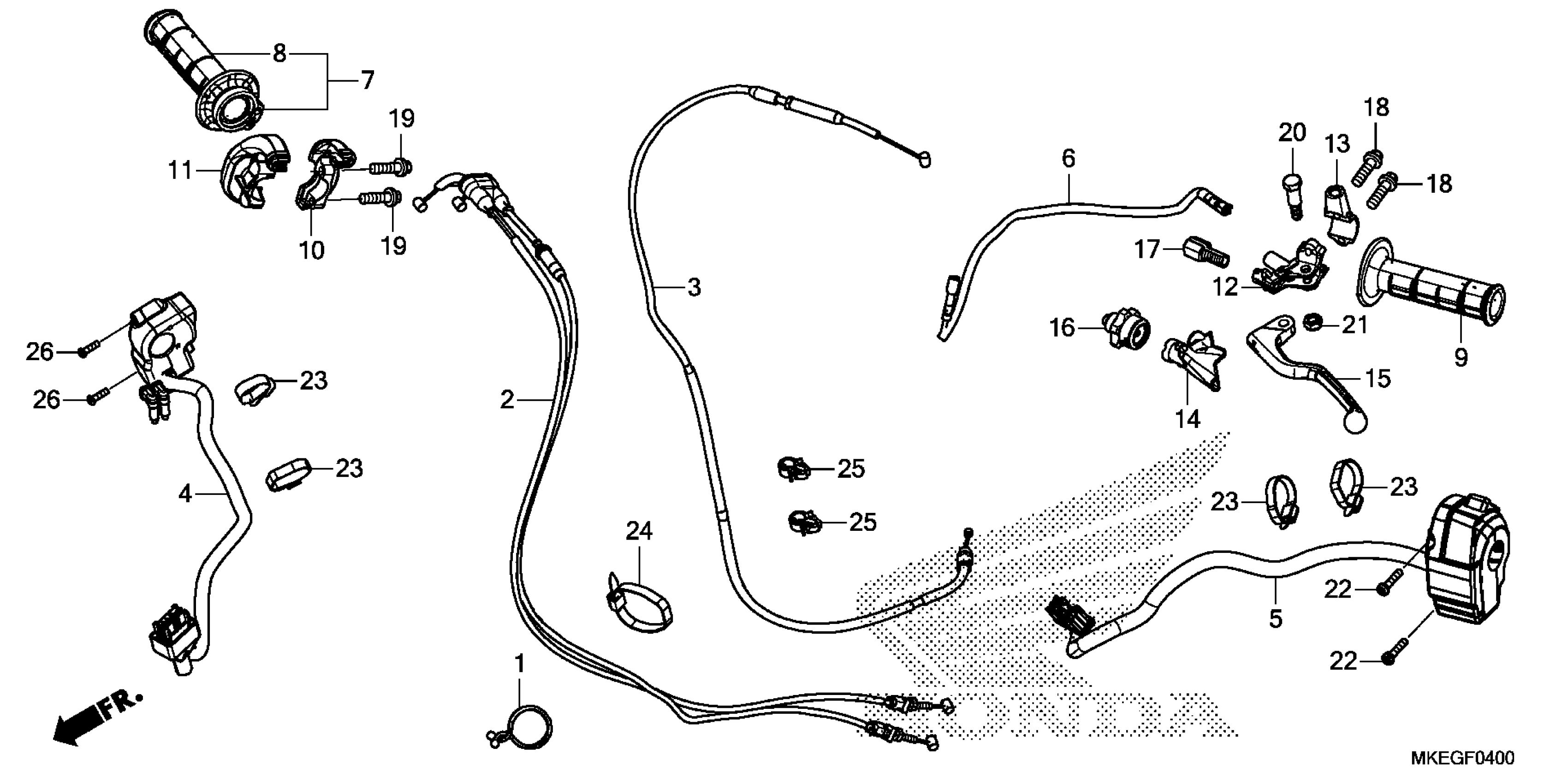

Honda CRF450LAC (19) MOTORCYCLE, JPN, VIN# JH2PD111-KK000001 TO JH2PD111-KK099999 HANDLE LEVER@SWITCH@CABLE Diagram

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.39

CABLE, THROTTLE

17910-MKE-A51

$63.43

CABLE, CLUTCH

22870-MKE-A51

$30.62

SWITCH ASSY., ENGINE STOP

35130-MKE-A51

$123.16

SWITCH ASSY., TURN SIGNAL This part replaces 35200-MKE-A51.

35200-MKE-A52

$133.46

SWITCH ASSY., CLUTCH

35330-MKE-A51

$20.51

GRIP, THROTTLE

53140-KRN-A30

$22.52

GRIP, R. HANDLE (COO) This part replaces 53165-KRN-A30.

53165-MEN-305

$10.13

GRIP, L. HANDLE

53166-KRN-A30

$10.34

HOUSING, THROTTLE (UPPER)

53167-MKE-A00

$28.20

HOUSING, THROTTLE (LOWER)

53168-MKE-A50

$26.80

BRACKET, L. HANDLE LEVER

53172-MKE-A60

$37.76

HOLDER, L. LEVER BRACKET

53174-MKE-A50

$14.12

COVER, L. HANDLE LEVER

53177-MKE-A60

$10.12

LEVER, L. HANDLEBAR

53178-MEN-A01

$24.79

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$11.26

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.91

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

BOLT, FLANGE (6X20)

90021-GHB-660

$2.26

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.94

NUT, U (6MM)

90301-782-000

$1.62

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

BAND, WIRE

90650-KW3-000

$4.48

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, CABLE

90682-MKE-A01

$3.05

SCREW-WASHER (4X16) This part replaces 93892-04016-07.

93892-04016-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49
