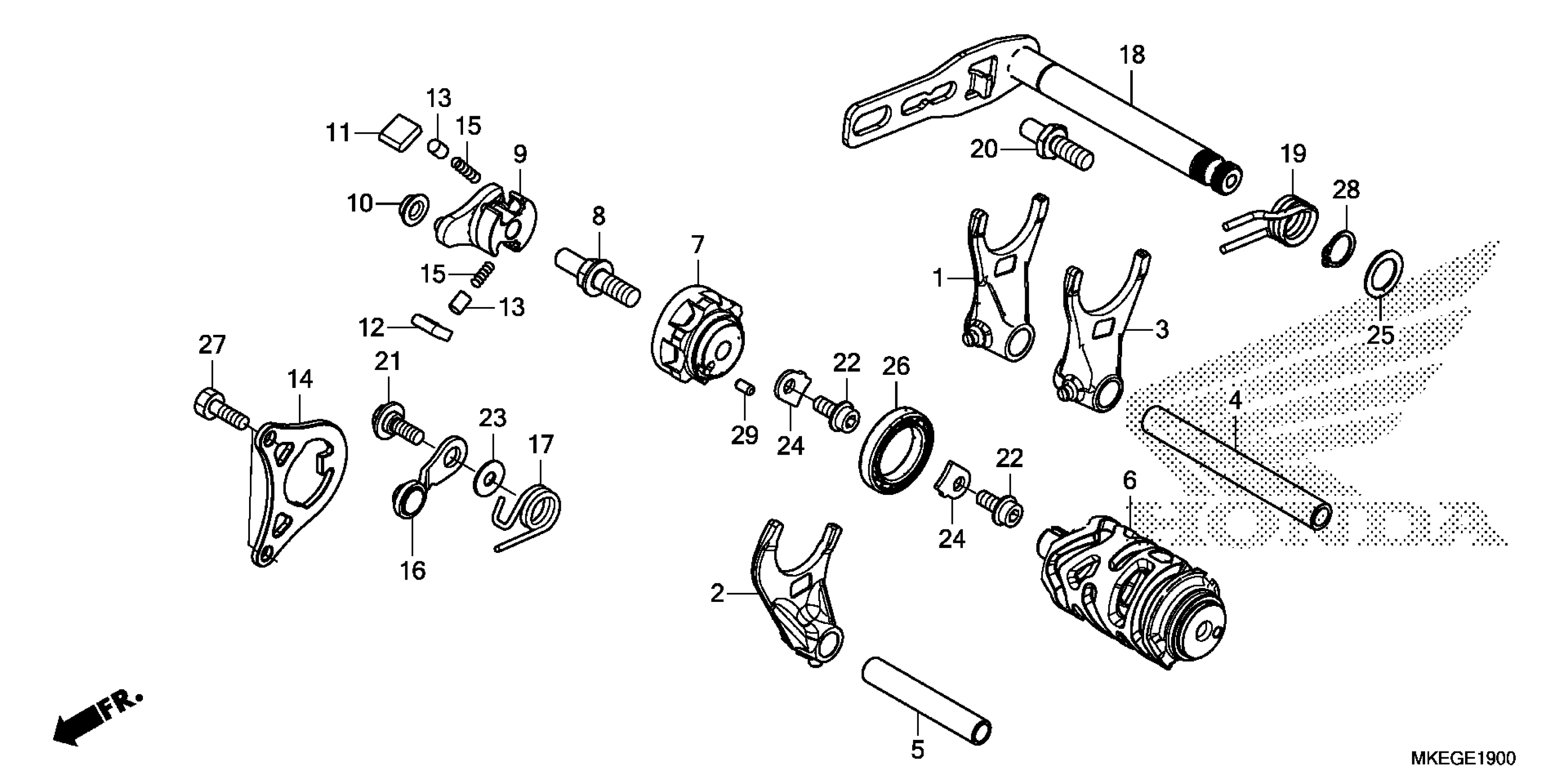

Honda CRF450LAC (19) MOTORCYCLE, JPN, VIN# JH2PD111-KK000001 TO JH2PD111-KK099999 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MKE-A50

$61.90

2

FORK, CENTER GEARSHIFT

24212-MKE-A50

$65.33

3

FORK, L. GEARSHIFT

24213-MKE-A50

$61.90

4

SHAFT A, SHIFT FORK

24241-MKE-A50

$17.43

5

SHAFT B, SHIFT FORK

24242-MEN-730

$13.56

6

DRUM, GEARSHIFT

24311-MKE-A50

$104.92

7

CENTER, GEARSHIFT DRUM

24312-MKE-A01

$44.85

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-MKE-A70

$38.77

10

COLLAR, SHIFTER

24322-MM4-000

$5.12

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, GUIDE

24328-MKE-A70

$14.26

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-MKE-A00

$18.90

17

SPRING, DRUM STOPPER

24435-MKE-A00

$4.15

18

SPINDLE, GEARSHIFT

24610-MKE-A50

$82.49

19

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$4.11

20

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

23

WASHER (6.1MM)

90435-HB3-000

$2.92

24

PLATE, BEARING HOLDER

90442-MEN-A30

$3.48

25

WASHER (14MM)

90451-155-000

$3.78

26

BEARING, RADIAL BALL (6805)

91004-GEM-003

$10.95

27

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

28

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

29

ROLLER (4X8)

96220-40080

$1.49
