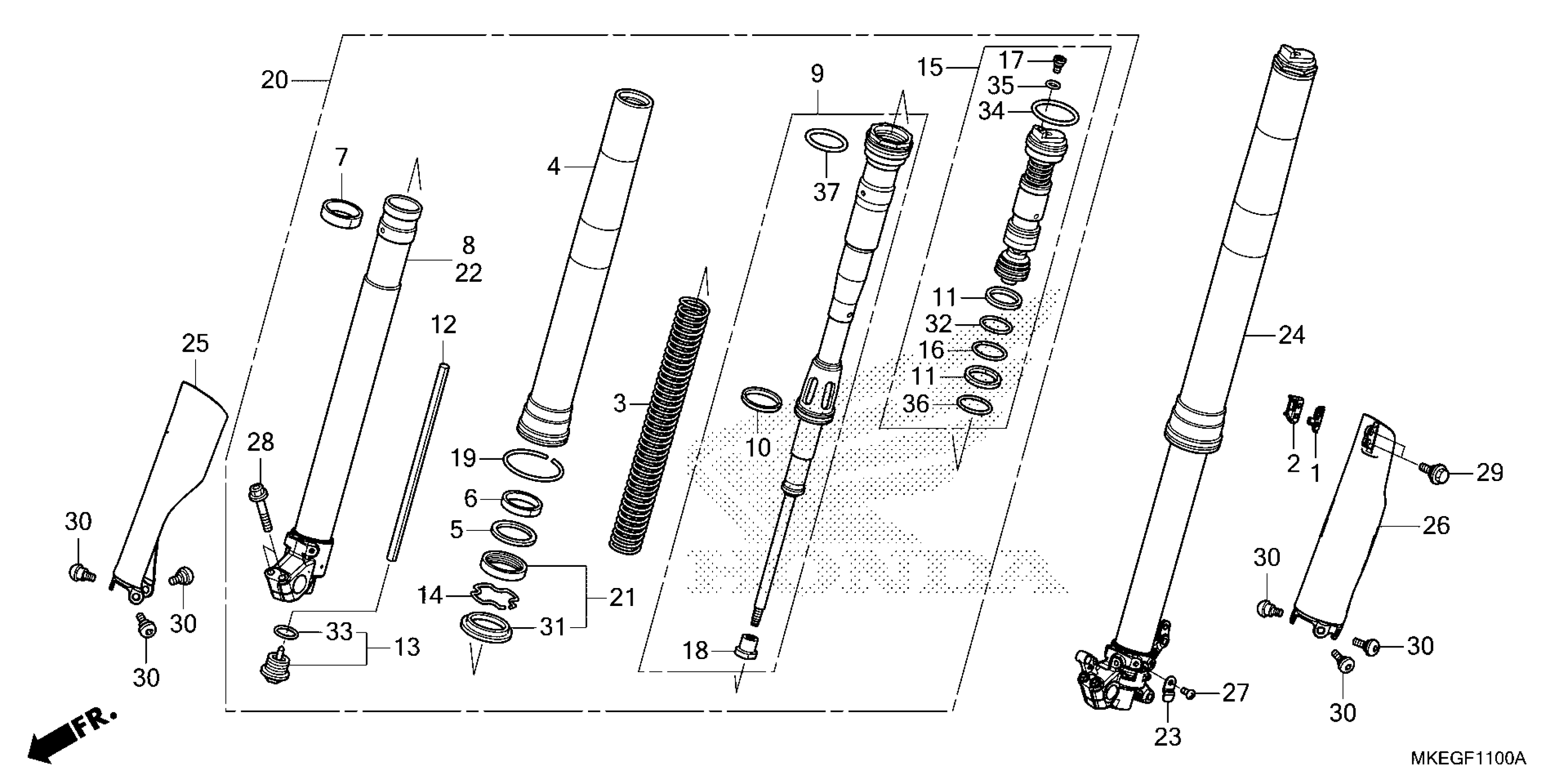

Honda CRF450LAC (19) MOTORCYCLE, JPN, VIN# JH2PD111-KK000001 TO JH2PD111-KK099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KZZ-J80

$6.19

2

CLAMP B, BRAKE HOSE

45462-KZZ-J80

$7.64

3

SPRING, FR. FORK (5.0N/MM)

51401-MKE-A71

$101.59

4

TUBE (OUTER) (BLACK)

51410-MKE-A51

$502.68

5

RING, BACK-UP

51412-KRN-A91

$7.62

6

BUSH, GUIDE

51414-KRN-A91

$11.74

7

BUSH, SLIDER

51415-KRN-A91

$11.56

8

PIPE, R. SLIDE

51420-MKE-A51

$386.30

9

DAMPER, FR.

51430-MKE-A51

$376.31

10

BUSH B, SLIDER

51431-MKE-A01

$11.08

11

BUSH, SLIDER

51436-KRN-A91

$12.49

12

COLLAR, REBOUND NEEDLE

51438-KRN-A91

$10.63

13

BOLT, CENTER

51440-KRN-A91

$35.08

14

RING, OIL SEAL STOP

51447-KRN-A91

$3.49

15

BOLT ASSY., FR. FORK

51450-MKE-A51

$215.62

16

RING, PISTON

51453-KRN-A91

$9.12

17

BOLT, PLUG

51456-KZ3-J41

$5.78

18

NUT, LOCK

51458-KRN-A91

$10.74

19

RING, WEAR

51476-KRN-A91

$7.19

20

FORK SUB-ASSY., R. FR.

51480-MKE-A51

$1,429.00

21

SEAL SET, FR. FORK

51490-KRN-A91

$23.71

22

PIPE, L. SLIDE

51520-MKE-A51

$386.30

23

STAY, AXLE HOLDER

51521-MKE-A51

$3.64

24

FORK SUB-ASSY., L. FR.

51580-MKE-A51

$1,429.00

25

PROTECTOR, R. FR. FORK *R292R* (EXTREME RED)

51610-MKE-A70ZA

$81.74

26

PROTECTOR, L. FR. FORK *R292R* (EXTREME RED)

51620-MKE-A70ZA

$69.80

27

SCREW, PAN (4X6)

90101-MKE-A50

$0.71

28

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

29

BOLT, FLANGE (6MM)

90113-KZZ-900

$0.49

30

BOLT, PROTECTOR

90113-MAC-780

$3.28

31

DUST SEAL

91254-KRN-A91

$11.41

32

O-RING (31.6X1.8)

91256-KRN-A91

$2.81

33

O-RING (22.1X1.9)

91257-KRN-A91

$2.29

34

O-RING (42.2X2.4)

91258-GF4-003

$5.50

35

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

36

O-RING (35.5X2)

91302-MA3-661

$2.37

37

O-RING (47.2X2.4)

91351-KRN-A41

$3.52
