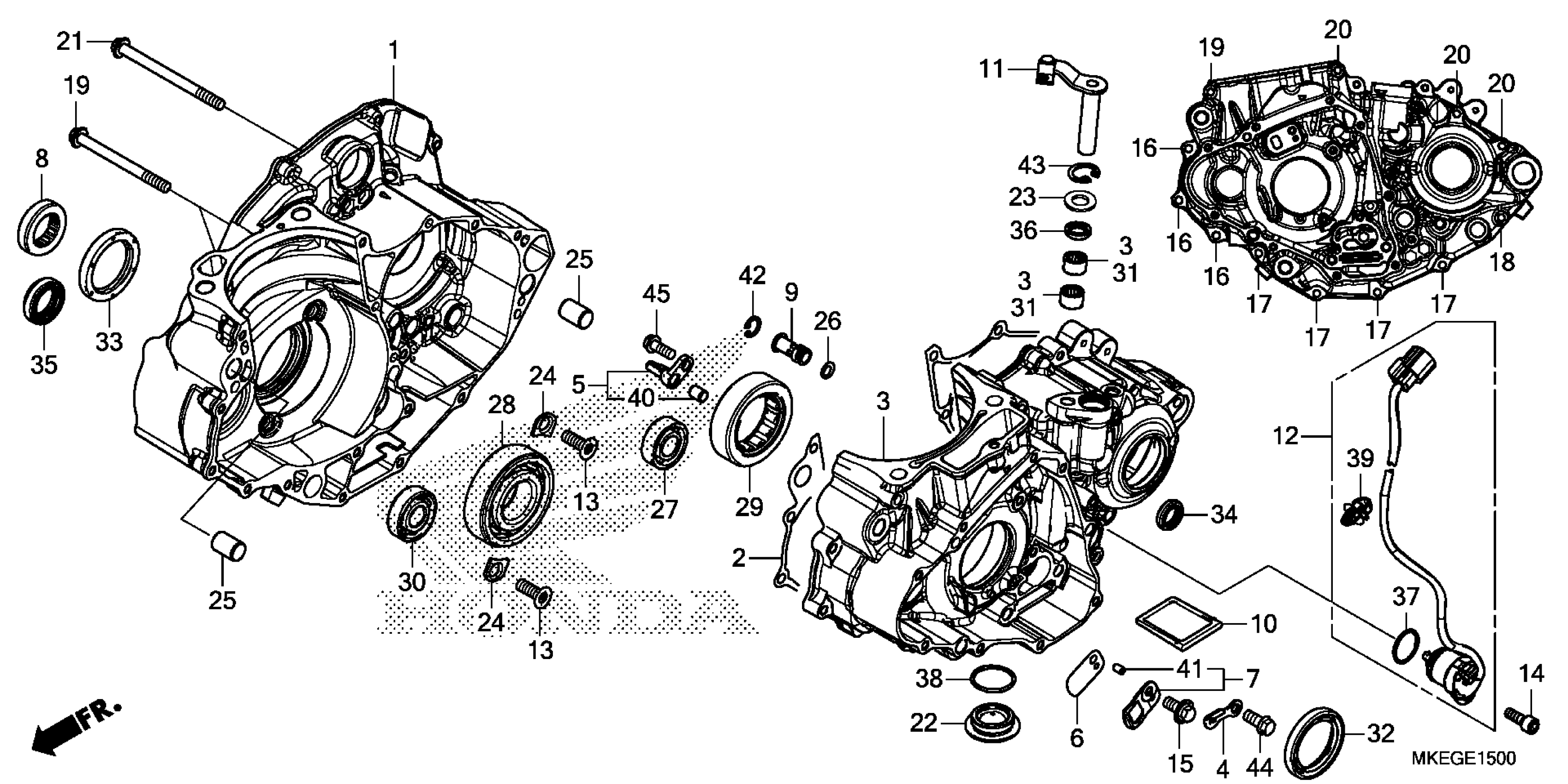

Honda CRF450LAC (19) MOTORCYCLE, JPN, VIN# JH2PD111-KK000001 TO JH2PD111-KK099999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MKE-A50

$479.25

2

GASKET, CRANKCASE

11191-MKE-A51

$29.33

3

CRANKCASE, L.

11200-MKE-A50

$474.92

4

PLATE, CAM CHAIN GUIDE

11206-MKE-A00

$3.28

5

JET, PISTON

11210-MKE-A50

$29.61

6

VALVE, REED

11221-MKE-A00

$7.78

7

STOPPER, REED VALVE

11230-MKE-A00

$26.84

8

COLLAR, CRANKSHAFT

13415-MKE-A00

$30.67

9

VALVE ASSY., RELIEF

15220-MEN-A30

$24.66

10

SCREEN, OIL FILTER

15421-MKE-A70

$14.53

11

LEVER, CLUTCH LIFTER

22810-MKE-A70

$51.36

12

SWITCH ASSY., CHANGE | Use up to Engine SN 5008305. This part replaces 35759-MKE-A51.

35759-MKE-A52

$97.69

12

SWITCH ASSY., CHANGE | Use from Engine SN 5008306.

35759-MKE-A52

$97.69

13

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.80

14

BOLT, SOCKET KNOCK (6MM)

90011-MKE-A50

$7.31

15

BOLT-WASHER (6X14)

90019-MKE-A00

$2.38

16

BOLT, FLANGE (6X28)

90025-GHB-690

$2.33

17

BOLT, FLANGE (6X40)

90025-GHB-740

$2.66

18

BOLT, FLANGE (6X50)

90025-GHB-760

$2.90

19

BOLT, FLANGE (6X70)

90025-GHB-800

$3.13

20

BOLT, FLANGE (6X75)

90025-GHB-810

$2.92

21

BOLT, FLANGE (6X80)

90025-GHB-820

$3.28

22

BOLT, DRAIN (30MM)

90088-MKE-A70

$16.50

23

WASHER (12.2MM)

90401-MKE-A50

$1.82

24

PLATE, BEARING HOLDER

90441-MEN-A30

$3.60

25

PIN, DOWEL (14X20)

90701-MKE-A00

$4.15

26

O-RING (8.5X1.7)

90751-GK1-003

$2.70

27

BEARING, RADIAL BALL SPECIAL (6202)

91001-MEN-A31

$11.09

28

BEARING, RADIAL BALL (30X72X19)

91001-MKE-A71

$50.21

29

BEARING, SPECIAL ROLLER (NTN)

91002-MEY-671

$49.91

30

BEARING, RADIAL BALL (15X38X11)

91004-MKE-A01

$23.83

31

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

31

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

32

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$13.13

33

OIL SEAL (39X53X7)

91202-MKE-A01

$16.72

34

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

35

OIL SEAL (22X33X7.5)

91203-MKE-A01

$7.90

36

OIL SEAL (12X18X3.5)

91205-MKE-A51

$5.61

37

O-RING (16.5X2.5)

91305-KC1-850

$1.86

38

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

39

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30

40

PIN A, DOWEL (8X10)

94301-08100

$2.25

41

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

42

CIRCLIP (INNER) (14MM)

94520-14000

$1.49

43

CIRCLIP (INNER) (21MM)

94524-21000

$1.49

44

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

45

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
