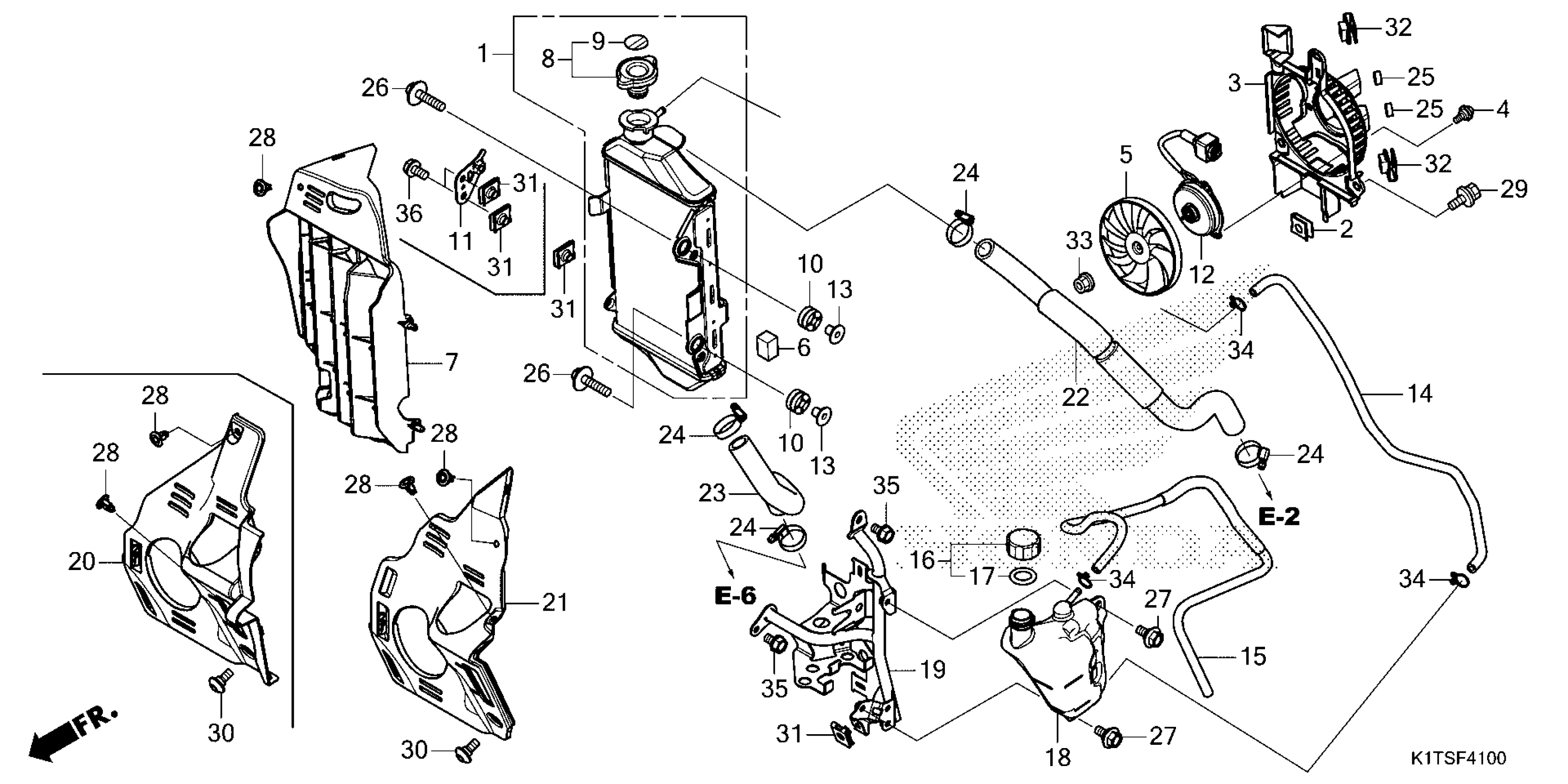

Honda CRF300LRAAC (25) MOTORCYCLE, THA, VIN# MLHND164-S5400001 TO MLHND164-S5499999 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO)

19010-K1T-A11

$137.06

2

NUT, SETTING (6MM)

19014-KEA-003

$2.88

3

SHROUD (TOYO)

19015-K1T-E11

$7.72

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.48

5

FAN, COOLING

19020-KVZ-631

$26.32

6

RUBBER, RADIATOR

19022-KZZ-900

$1.90

7

GRILLE, RADIATOR

19034-K1T-EM0

$6.09

8

CAP, RADIATOR

19037-GEE-710

$27.19

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

10

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.43

11

STAY, R. RADIATOR

19073-K1T-EM0

$1.58

12

MOTOR ASSY., FAN

19080-K1T-EB1

$82.12

13

COLLAR, RADIATOR MOUNTING

19091-KZZ-900

Unavailable

14

TUBE, RESERVE TANK

19101-K1T-E10

$13.52

15

TUBE, RESERVE TANK DRAIN

19102-K1T-E10

$17.20

16

CAP ASSY., RESERVE TANK

19105-KZZ-900

$4.65

17

GASKET, RESERVE TANK

19107-MG8-000

$4.56

18

TANK, RADIATOR RESERVE

19110-K1T-E10

$11.88

19

STAY, RESERVE TANK

19150-K1T-E10

$38.67

20

COVER, FR. RESERVE TANK

19160-K1T-E10

$20.48

22

HOSE, RADIATOR (UPPER)

19501-K1T-E10

$29.78

23

HOSE, RADIATOR (LOWER)

19502-K1T-E10

$15.20

24

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.44

25

COLLAR, RR. FENDER

80108-K45-N40

$1.17

26

BOLT-WASHER (6X25)

90101-K1T-EM0

$0.75

27

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.09

28

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

29

BOLT-WASHER (6X16)

90120-KCR-003

$4.09

30

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

31

NUT, CLIP (6MM)

90303-KZZ-J00

$1.16

32

NUT, CLIP (6MM)

90311-MT3-000

$5.39

33

NUT, FLANGE (3MM)

90315-MFL-003

$2.12

34

CLIP, TUBE (B10)

95002-02100

$1.72

35

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

36

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
