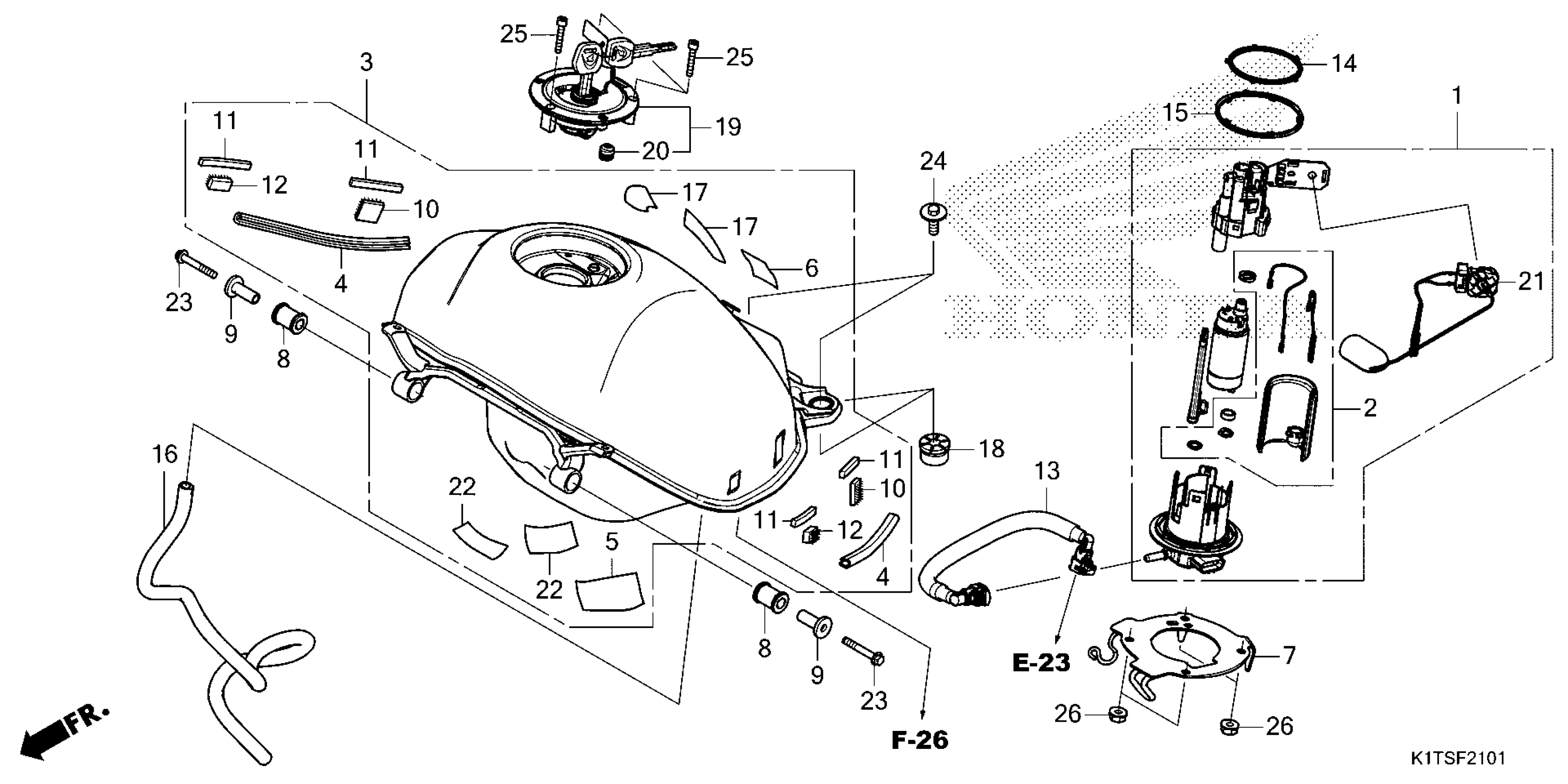

Honda CRF300LRAAC (25) MOTORCYCLE, THA, VIN# MLHND164-S5400001 TO MLHND164-S5499999 FUEL TANK (CRF300LRA) Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16700-K1T-E11

$120.51

2

FILTER SET

16707-K45-N01

$21.11

3

TANK, FUEL *NH1*

17500-K1T-EM0ZA

$236.10

4

TRIM A, FUEL TANK

17516-KZZ-900

$5.75

5

FILM, TANK PROTECTOR

17519-K1B-T00

$7.09

6

FILM, TANK PROTECTOR

17519-K35-V00

$20.62

7

PLATE, SETTING

17527-K1T-E10

$8.49

8

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.43

9

COLLAR

17538-KZZ-900

$2.13

10

FASTENER, DUAL LOCK (20X20)

17540-MJW-J80

$2.26

11

RUBBER, TANK

17544-K1T-E10

$1.87

12

FASTENER, DUAL LOCK (10X20)

17545-K1T-E10

$1.46

13

HOSE, FUEL FEED

17570-K1T-E11

$32.13

14

GASKET, FUEL PUMP

17572-GHB-613

$15.30

15

DUST SEAL

17573-KPN-A71

$11.23

16

TUBE, DRAIN

17575-K1T-E10

$12.49

17

FILM, TANK PROTECTOR

17583-K1T-E10

$2.42

18

CUSHION, FUEL TANK

17613-K1T-E10

$2.20

19

CAP COMP

17620-KZZ-J03

$181.20

20

SEAL, BREATHER

17621-MGP-D62

$4.78

21

FUEL UNIT

37800-K1T-E11

$36.04

22

FILM, PROTECTOR

84114-MFP-C80

$4.30

23

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

24

BOLT-WASHER (6X14)

90107-K1T-EB0

$0.91

25

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.87

26

NUT, FLANGE (6MM)

94050-06080

$0.59
